Aeroquip® by Danfoss

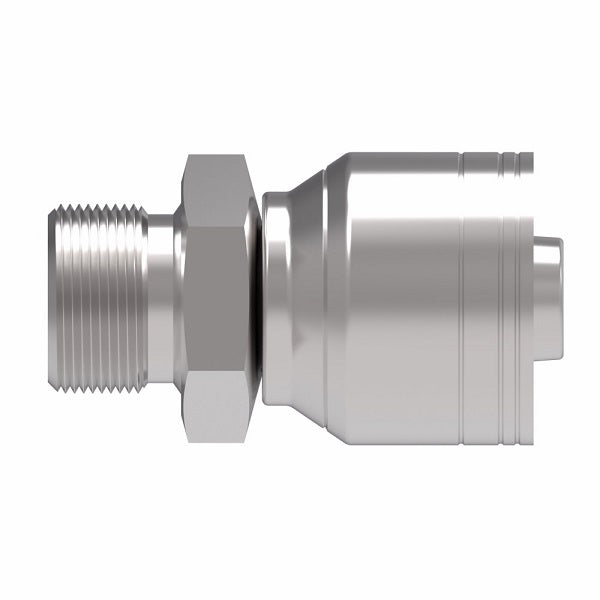

1 & 2 Wire TTC BSP Male Parallel, BSPP Crimp Fitting (BP) - Straight

(Formerly Eaton Aeroquip)

G as part of thread size is ISO Designation for parallel thread.

Specifications for Variant SKU: 1A6BP6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male BSPP, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1A4BP4	G 1/4-19	-04	1.74"	0.82"	0.16"	0.75"
1A6BP6	G 3/8-19	-06	1.90"	0.91"	0.26"	0.87"
1A6BP8	G 3/8-19	-08	2.20	1.04"	0.38"	0.87"
1A8BP6	G 1/2-14	-06	2.06"	1.07"	0.26"	1.06"
1A8BP8	G 1/2-14	-08	2.28"	1.11"	0.38"	1.06"
1A10BP10	G 5/8-14	-10	2.44"	1.25"	0.50"	1.18"
1A12BP12	G 3/4-14	-12	2.48"	1.29"	0.61"	1.26"
1A16BP16	G1-11	-16	2.79"	1.44"	0.81"	1.61"
1A20BP20	G 1-1/4-11	-20	3.39"	1.66"	1.50"	1.97"
