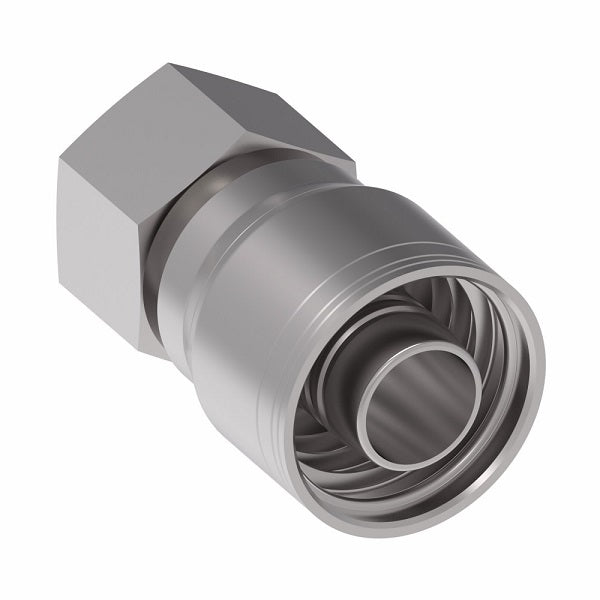

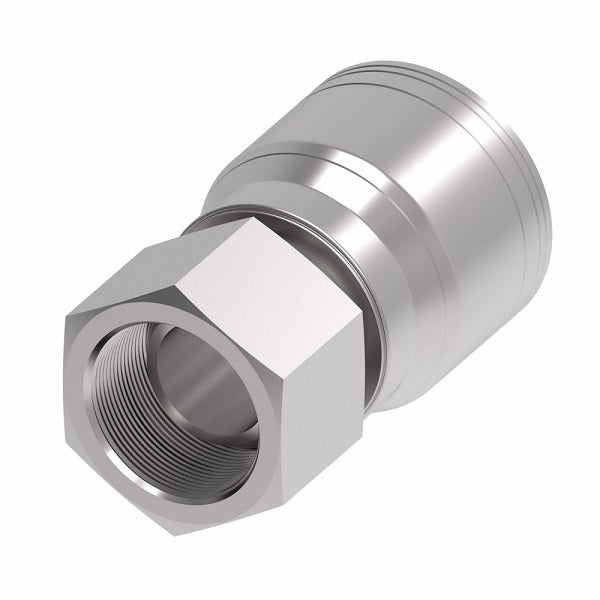

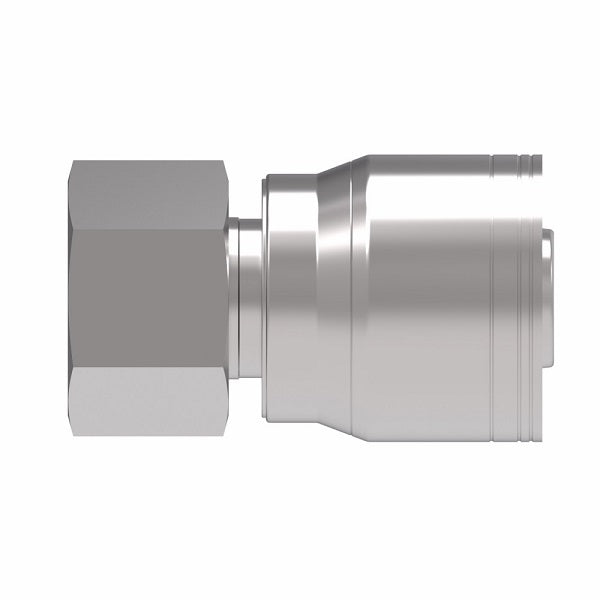

1A8BF6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -06 Hose Barb | Steel
1A8BF6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -06 Hose Barb | Steel
1A8BF6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -06 Hose Barb | Steel
1A8BF6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -06 Hose Barb | Steel

1A8BF6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -06 Hose Barb | Steel

$15.94 - $15.94
$15.94
$15.94 - $15.94
$15.94

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BF) - Steel

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.
Specifications for Variant SKU: 1A8BF6 Danfoss
Shape (Orientation): Straight
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1
1A4BF4 G 1/4 -04 1.66" 0.74" 0.16" 0.75"
1A6BF4 G 3/8 -04 1.79" 0.87" 0.17" 0.87"
1A6BF6 G 3/8 -06 1.83" 0.83" 0.26" 0.87"
1A8BF6 G 1/2 -06 1.88" 0.89" 0.26" 1.06"
1A8BF8 G 1/2 -08 2.11" 0.94" 0.38" 1.06"
1A10BF8 G 5/8 -08 2.22" 1.05" 0.38" 1.18"
1A10BF10 G 5/8 -10 2.13" 0.97" 0.50" 1.18"
1A12BF10 G 3/4 -10 - - - -
1A12BF12 G 3/4 -12 2.18" 1.00" 0.61" 1.26"
1A16BF16 G 1 -16 2.44" 1.09" 0.81" 1.61"
1A20BF20 G 1-1/4 -20 2.90" 1.16" 1.05" 1.97"
