1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel
1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel
1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel
1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel

1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel

$20.30 - $20.30
$20.30
$20.30 - $20.30
$20.30

Aeroquip® by Danfoss

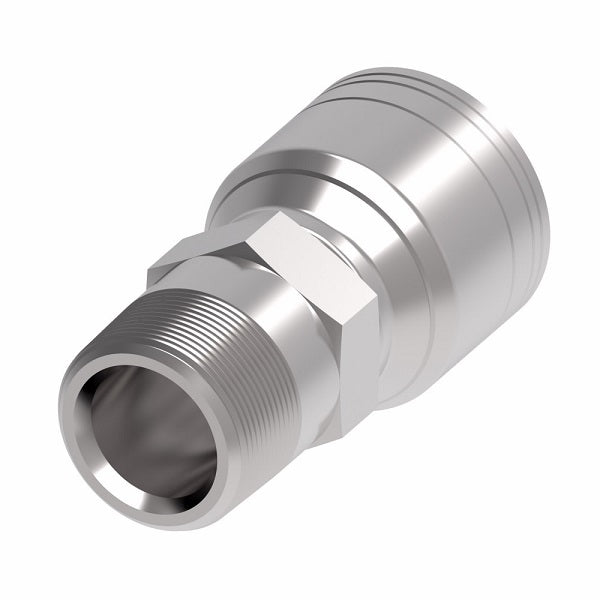

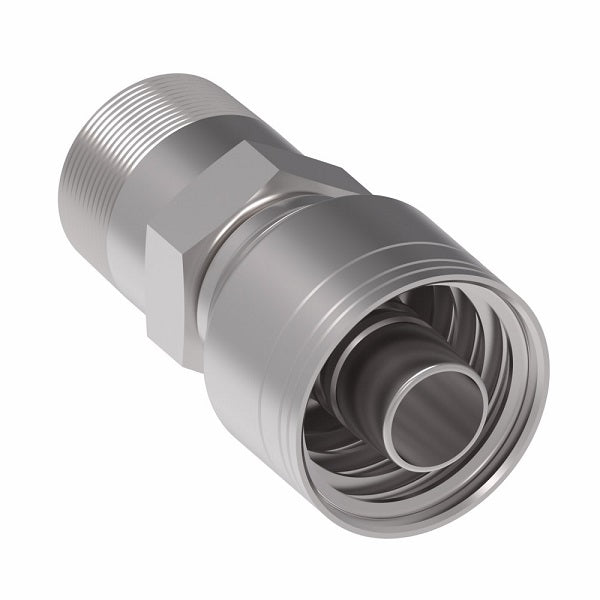

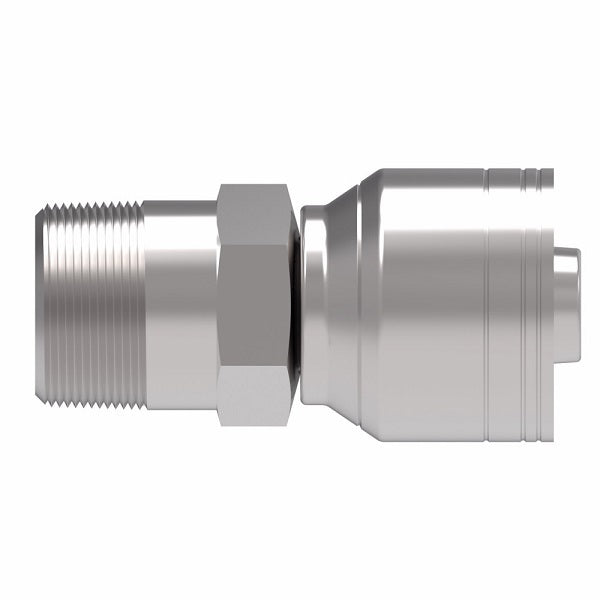

1 & 2 Wire TTC BSP Male Tapered, BSPT Crimp Fitting (BT) - Straight

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable.
Specifications for Variant SKU: 1A8BT8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male BSPT, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ Hex 2
1A4BT4 R 1/4-19 -04 1.99" 1.07" 0.16" 0.55"
1A6BT6 R 3/8-19 -06 2.16" 1.16" 0.26" 0.75"
1A8BT6 R 1/2-14 -06 - - - -
1A8BT8 R 1/2-14 -08 2.61" 1.44" 0.38" 0.87"
1A12BT12 R 3/4-14 -12 2.80" 1.61" 0.61" 1.18"
1A16BT16 R 1-11 -16 3.20" 1.84" 0.81" 1.42"
1A20BT20 R 1-1/4-11 -20 3.79" 2.05" 1.05" 1.81"
