Aeroquip® by Danfoss

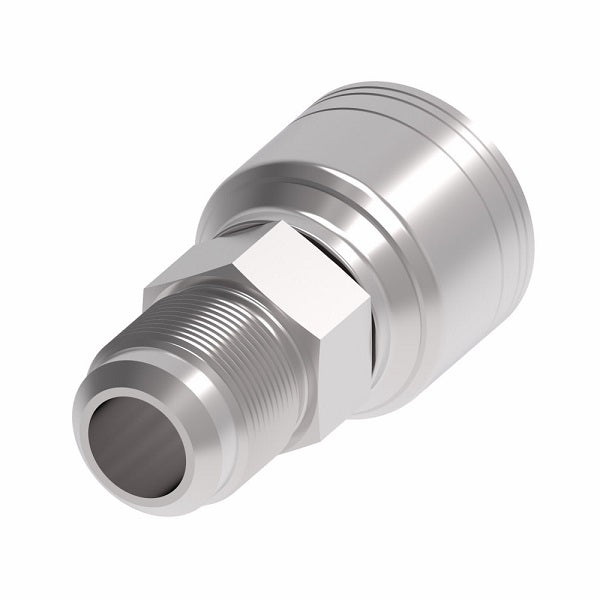

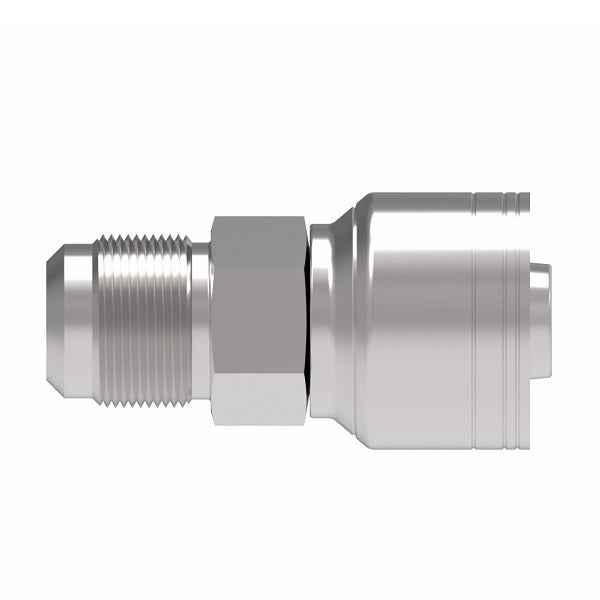

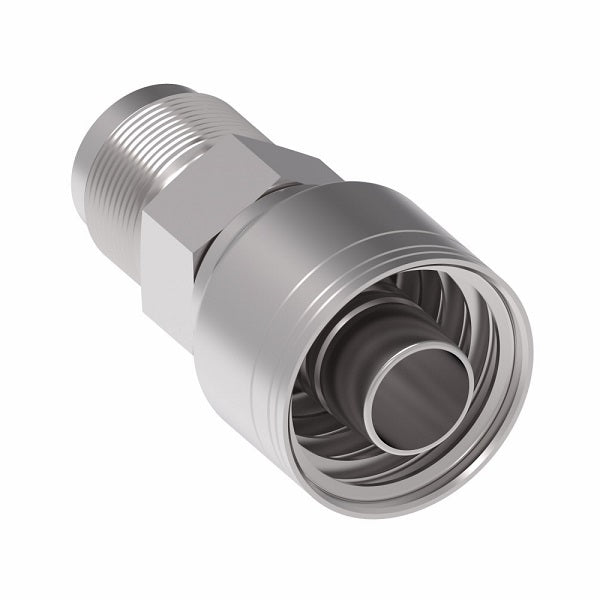

TTC Crimp Fitting - Male SAE 45° Flare Rigid (MS) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA12MS12 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male SAE 45 Flare, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Part Number Steel	Thread	Hose Dash Size	A	Hose Cut-OffFactor (D)	EØ	Hex 2
1AA6MS6	5/8-18	-06	2.06"	1.23"	0.26"	11/16"
1AA12MS12	1-1/16-14	-12	2.94"	1.88"	0.61"	1-1/8"
