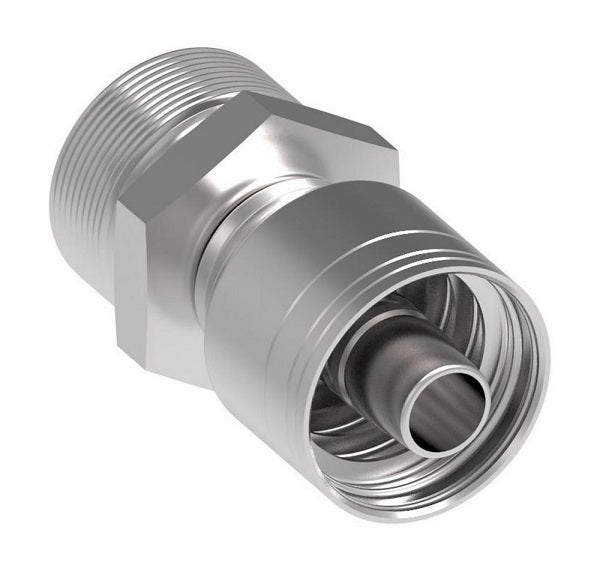

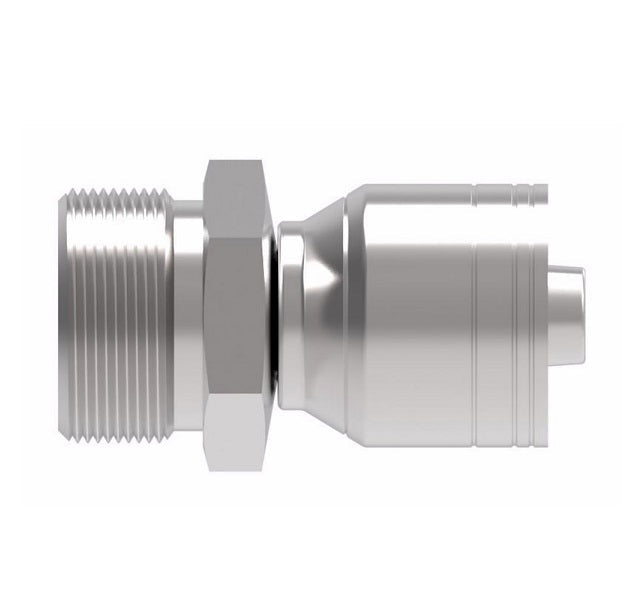

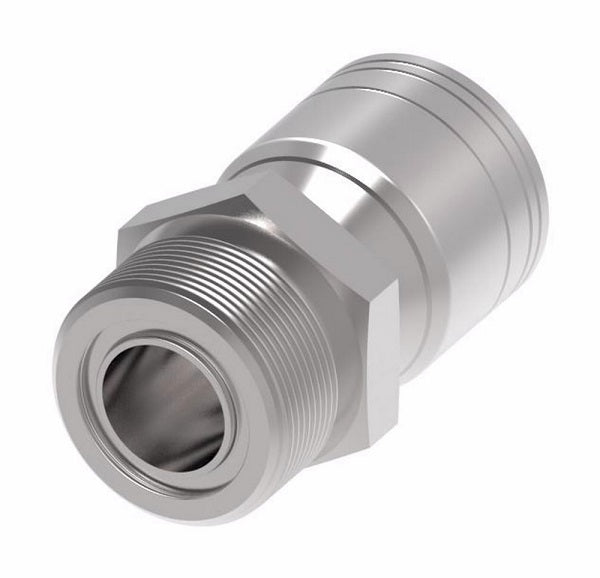

1AA20MR16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -20 Male O-Ring Face Seal x -16 Hose Barb | Steel
1AA20MR16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -20 Male O-Ring Face Seal x -16 Hose Barb | Steel
1AA20MR16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -20 Male O-Ring Face Seal x -16 Hose Barb | Steel
1AA20MR16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -20 Male O-Ring Face Seal x -16 Hose Barb | Steel

1AA20MR16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -20 Male O-Ring Face Seal x -16 Hose Barb | Steel

$72.01 - $72.01
$72.01
$72.01 - $72.01
$72.01

Aeroquip® by Danfoss
1 & 2 Wire TTC Male ORS Crimp Fitting (MR) - Straight

(Formerly Eaton Aeroquip)

Fitting does not include O-Ring.
Specifications for Variant SKU: 1AA20MR16 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ Hex 2
1AA4MR4 9/16-18 -04 1.78" 0.86" 0.17" 5/8"
1AA6MR4 11/16-16 -04 - - - -
1AA6MR6 11/16-16 -06 2.05" 1.16" 0.26" 3/4"
1AA8MR6 13/16-16 -06 1.79" 0.95" 0.26" 7/8"
1AA8MR8 13/16-16 -08 2.54" 1.34" 0.38" 7/8"
1AA10MR8 1-14 -08 2.17" 1.17" 0.38" 1-1/16"
1AA12MR8 1-3/16-12 -08 2.27" 1.27" 0.38" 1-1/4"
1AA10MR10 1-14 -10 2.26" 1.44" 0.48" 1-1/16"
1AA12MR10 1-3/16-12 -10 2.26" 1.24" 0.50" 1-1/4"
1AA12MR12 1-3/16-12 -12 2.63" 1.53" 0.61" 1-1/4"
1AA16MR12 1-7/16-12 -12 2.53" 1.34" 0.61" 1-1/2"
1AA16MR16 1-7/16-12 -16 2.96" 1.69" 0.81" 1-1/2"
1AA20MR16 1-11/16-12 -16 - - - -
1AA20MR20 1-11/16-12 -20 3.35" 1.80" 1.03" 1-3/4"
