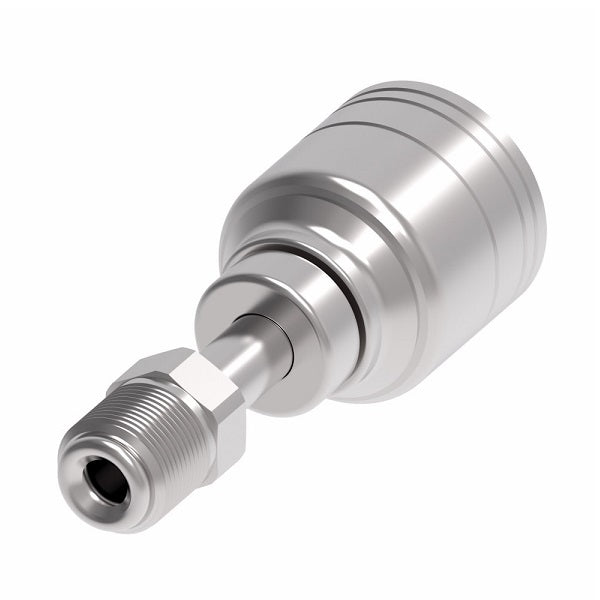

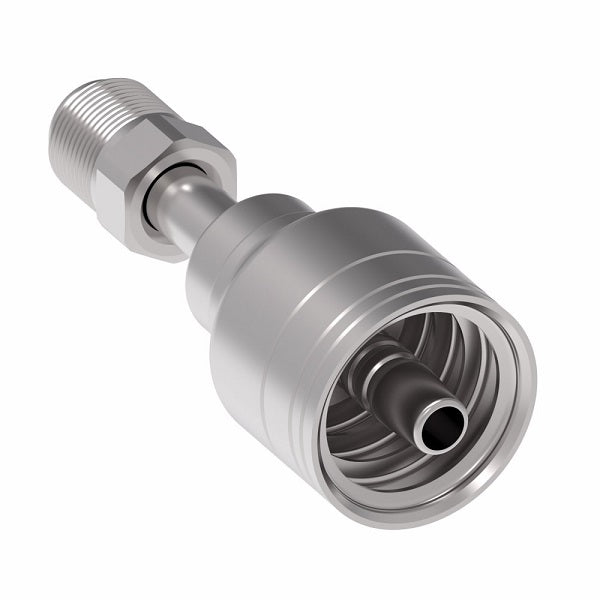

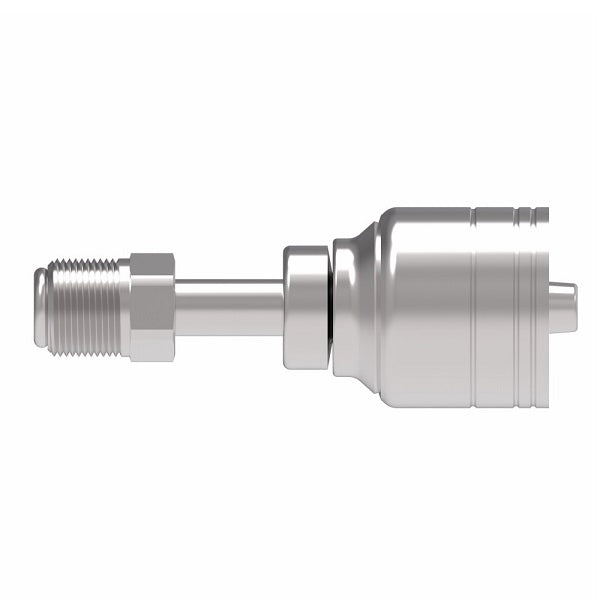

1AA5MF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel

1AA5MF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel

Name: 1AA5MF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA5MF4 Danfoss
Price: 21.4 USD
Availability: InStock

$21.40 - $21.40

$21.40

$21.40 - $21.40

$21.40

Aeroquip® by Danfoss
1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MF) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA5MF4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Male Inverted Flare, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1
1AA4MF4	7/16-24	-04	2.39"	1.46"	0.17"	7/16"
1AA5MF4	1/2-20	-04	2.39"	1.46"	0.17"	1/2"
1AA5MF6	1/2-20	-06	2.60"	1.61"	0.24"	1/2"
1AA4MF6	7/16-24	-06	2.53"	1.53"	0.17"	7/16"
1AA6MF6	5/8-18	-06	2.60"	1.61"	0.26"	5/8"
1AA7MF6	11/16-18	-06	2.45"	1.60"	0.26"	11/16"
1AA8MF8	3/4-18	-08	2.79"	1.62"	0.38"	3/4"
1AA10MF8	7/8-18	-08	2.94"	1.93"	0.38"	7/8"
