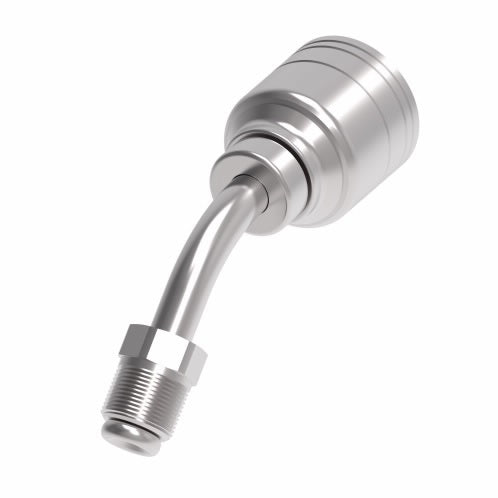

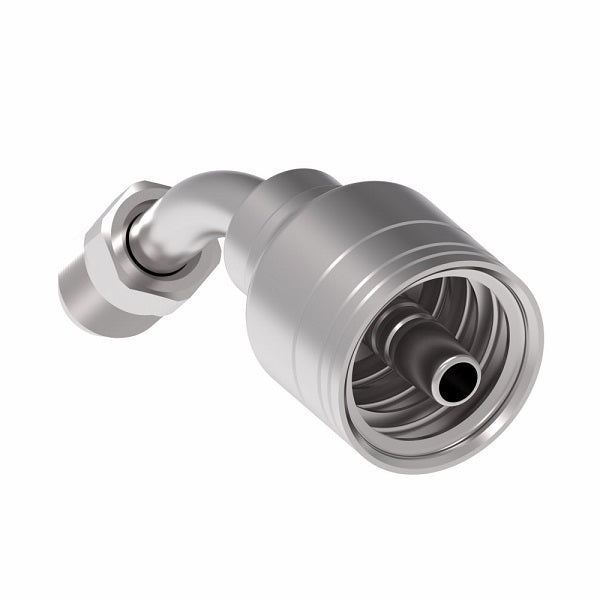

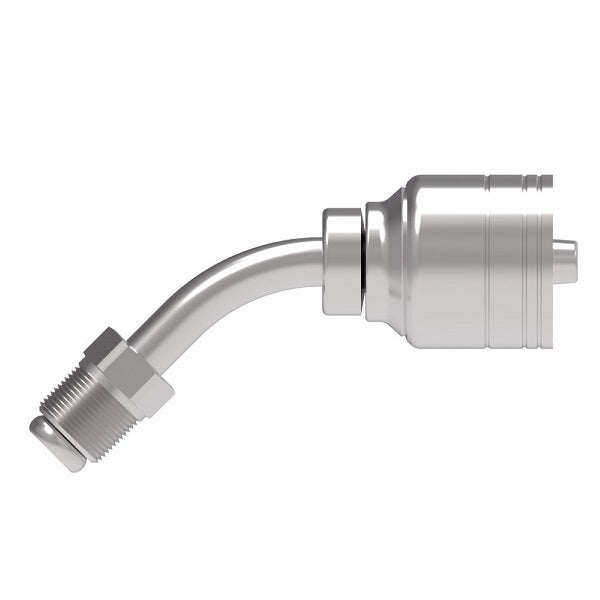

1AA5MFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel

1AA5MFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel | Pack of 10

$245.60 - $245.60

$245.60

$245.60 - $245.60

$245.60

Aeroquip® by Danfoss
1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MFA) - 45° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1AA5MFA6 Danfoss \| 10 \|
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/16in Male Inverted Flare, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA3MFA4	3/8-24	-04	2.75"	1.96"	0.10"	0.69"	3/8"
1AA4MFA4	7/16-24	-04	2.67"	1.75"	0.17"	0.96"	7/16"
1AA5MFA4	1/2-20	-04	2.54"	1.75"	0.17"	0.96"	1/2"
1AA5MFA6	1/2-20	-06	2.88"	1.89"	0.24"	0.96"	1/2"
1AA6MFA6	5/8-18	-06	2.88"	1.89"	0.26"	0.96"	5/8"
1AA7MFA6	11/16-18	-06	2.73"	1.89"	0.26"	0.96"	11/16"
1AA8MFA8	3/4-18	-08	3.07"	1.90"	0.38"	0.93"	3/4"
