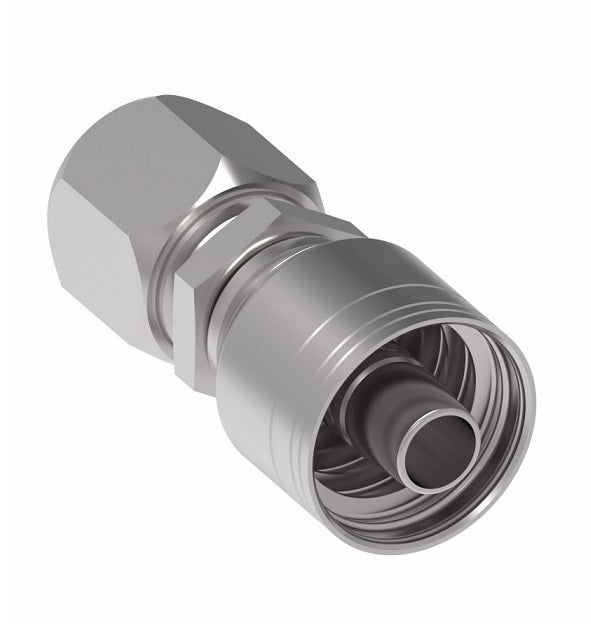

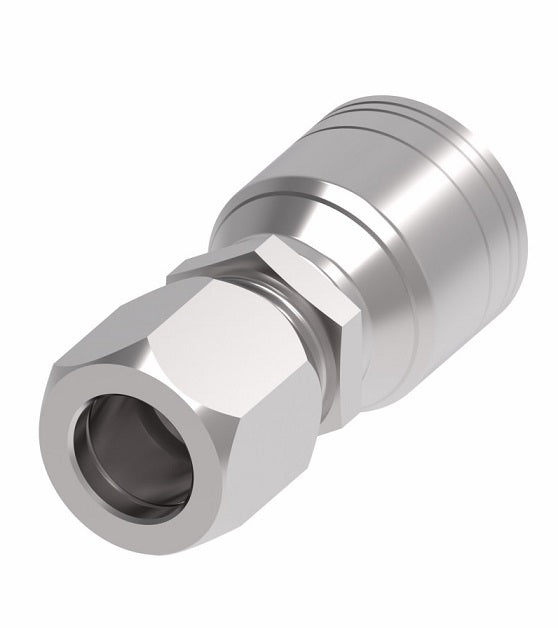

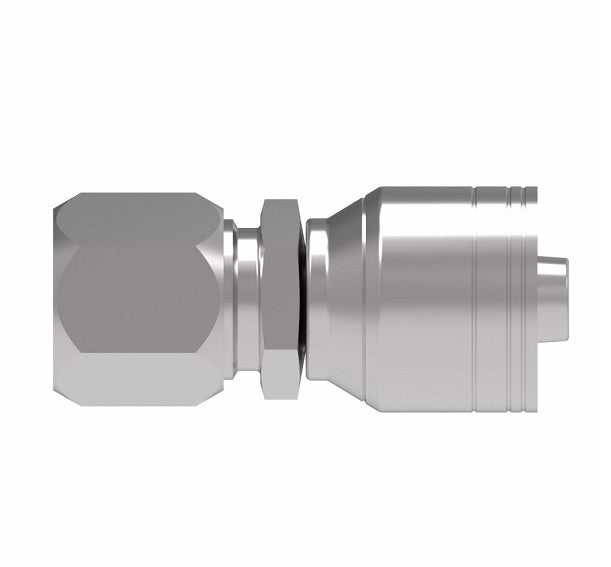

1AA5MT4 Ermeto by Danfoss | 7000 Series | Female Flareless Tube Rigid (MT) Crimp Fitting | -05 Female Flareless Tube Rigid x -04 Hose Barb | Steel

1AA5MT4 Ermeto by Danfoss | 7000 Series | Female Flareless Tube Rigid (MT) Crimp Fitting | -05 Female Flareless Tube Rigid x -04 Hose Barb | Steel

Name: 1AA5MT4 Ermeto by Danfoss | 7000 Series | Female Flareless Tube Rigid (MT) Crimp Fitting | -05 Female Flareless Tube Rigid x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA5MT4 Danfoss
Price: 26.98 USD
Availability: InStock

$26.98 - $26.98

$26.98

$26.98 - $26.98

$26.98

Ermeto by Danfoss
TTC Permanent Crimp Fitting - Flareless Tube Rigid (MT) - Straight

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.

Quantity

Specifications for Variant SKU: 1AA5MT4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Tube Compression, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Note:
With Nut and Sleeve. TTC Permanent Crimp Fitting.
Additional Information:
Danfoss Ermeto 7000 Series Information.PDF


Steel Part Number	Thread	Tube O.D	Hose Dash Size	A	Hose Cut-OffFactor (D)	E&Oslash	Hex 2	Hex 1
1AA4MT4	7/16-20	1/4"	-04	1.65"	0.86"	0.17"	9/16"	9/16"
1AA4MT6	7/16-20	1/4"	-06	1.81"	0.97"	0.26"	11/16"	9/16"
1AA5MT4	1/2-20	5/16"	-04	1.58"	0.80"	0.17"	9/16"	5/8"
1AA5MT6	1/2-20	5/16"	-06	1.81"	0.97"	0.23"	11/16"	5/8"
1AA6MT6	9/16-18	3/8"	-06	1.82"	0.99"	0.26"	11/16"	11/16"
1AA8MT8	3/4-16	1/2"	-08	2.15"	1.16"	0.38"	13/16"	7/8"
1AA10MT8	7/8-14	5/8"	-08	2.12"	1.12"	0.38"	15/16"	1"
1AA12MT12	1-1/16-12	3/4"	-12	2.40"	1.34"	0.61"	1-1/8"	1-1/4"
1AA16MT16	1-5/16-12	1"	-16	3.80"	1.48"	0.81"	1-3/8"	1-1/2"
1AA20MT20	-	-	-20	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
