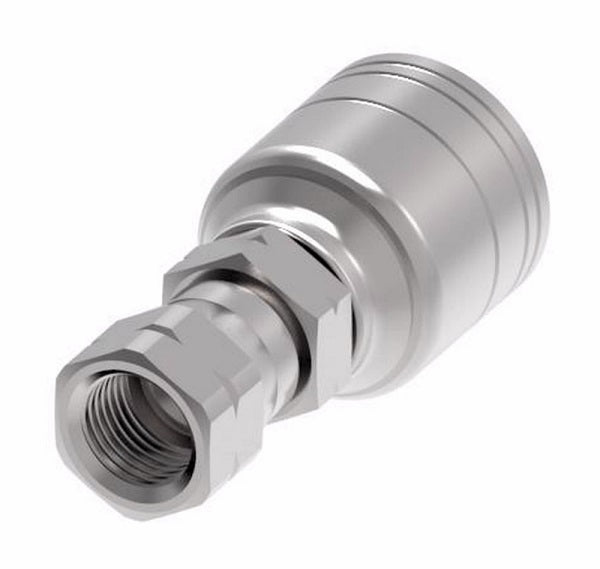

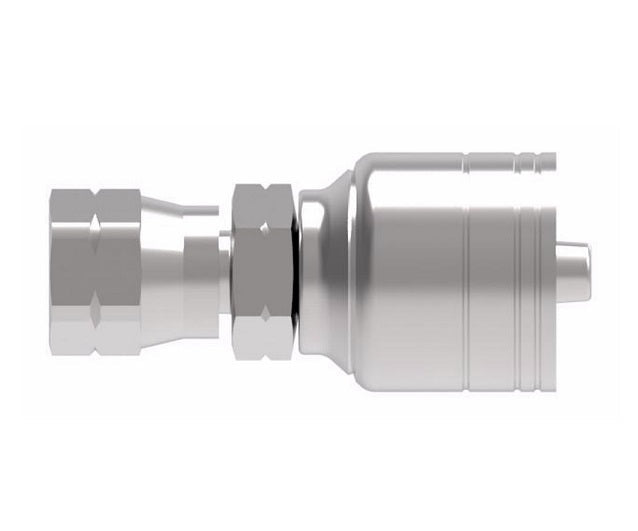

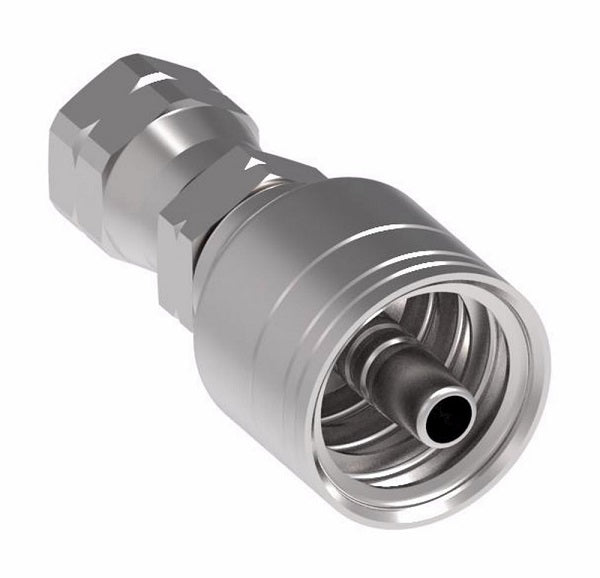

1AA6FS6 Aeroquip by Danfoss | 1 & 2 Wire TTC Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

1AA6FS6 Aeroquip by Danfoss | 1 & 2 Wire TTC Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

Name: 1AA6FS6 Aeroquip by Danfoss | 1 & 2 Wire TTC Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA6FS6 Danfoss
Price: 10.4 USD
Availability: InStock

$10.40 - $10.40

$10.40

$10.40 - $10.40

$10.40

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA6FS6 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1AA4FS4	7/16-20	-04	2.00"	1.07"	0.17"	9/16"	9/16"
1AA5FS4	1/2-20	-04	1.98"	1.06"	0.17"	5/8"	9/16"
1AA4FS6	7/16-20	-06	2.03"	1.19"	0.19"	9/16"	11/16"
1AA6FS6	5/8-18	-06	2.15"	1.31"	0.26"	3/4"	11/16"
1AA8FS6	3/4-16	-06	2.31"	1.31"	0.26"	7/8"	11/16"
1AA8FS8	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1AA10FS8	7/8-14	-08	2.54"	1.47"	0.38"	1"	13/16"
1AA12FS12	1-1/16-14	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"
