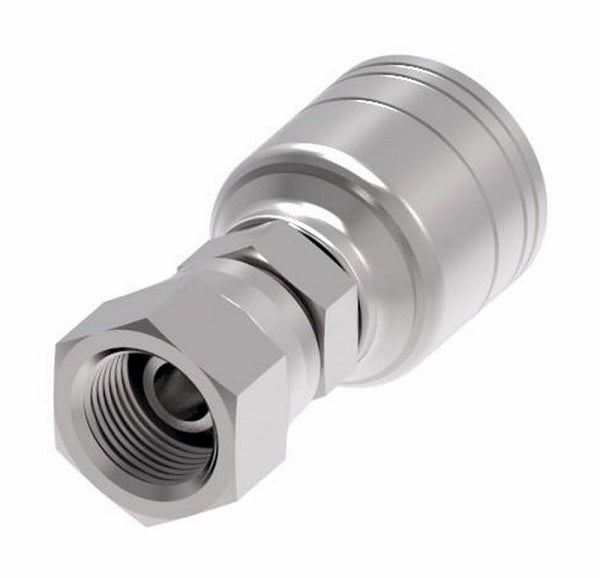

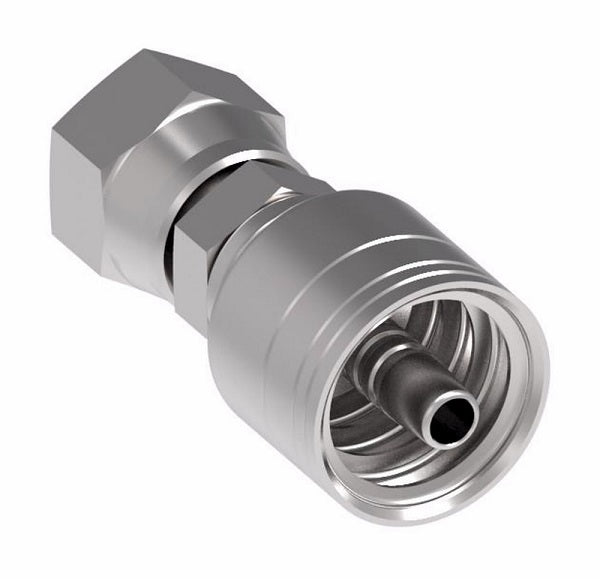

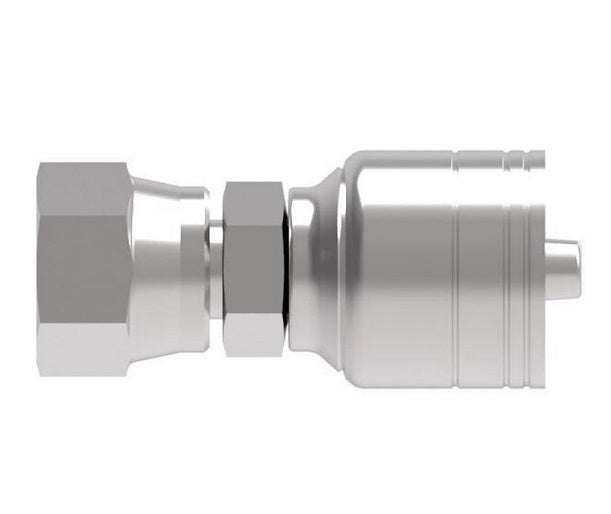

1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel
1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel
1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel
1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel

1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel

$19.16 - $19.16
$19.16
$19.16 - $19.16
$19.16

Aeroquip® by Danfoss
Female Pipe Swivel (SP) TTC Crimp Fitting - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA6SP6 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPSM, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Technical Info:
Steel
Part Number		 Thread Hose Dash Size A Hose Cut-OffFactor (D) EØ Hex 2

 Hex 1
1AA4SP4 1/4-18 -04 1.88" 1.09" 0.17" 9/16" 11/16"
1AA6SP6 3/8-18 -06 2.04" 1.20" 0.26" 11/16" 7/8"
1AA8SP8 1/2-14 -08 2.40" 1.41" 0.38" 7/8" 1"
1AA12SP12 3/4-14 -12 2.62" 1.56" 0.61" 1-1/8" 1-1/4"
1AA16SP16 1-11-1/2 -16 3.11" 1.18" 0.81" 1-3/8" 1-1/2"
1AA20SP20 1-1/4-11-1/2 -20 - - - - -
