Aeroquip® by Danfoss

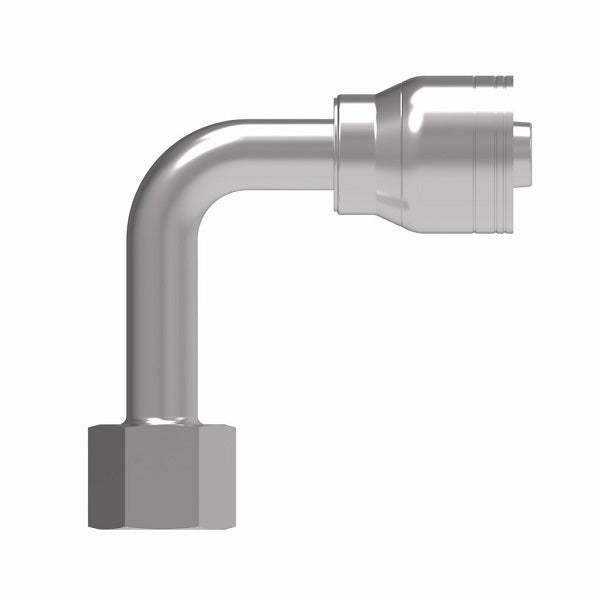

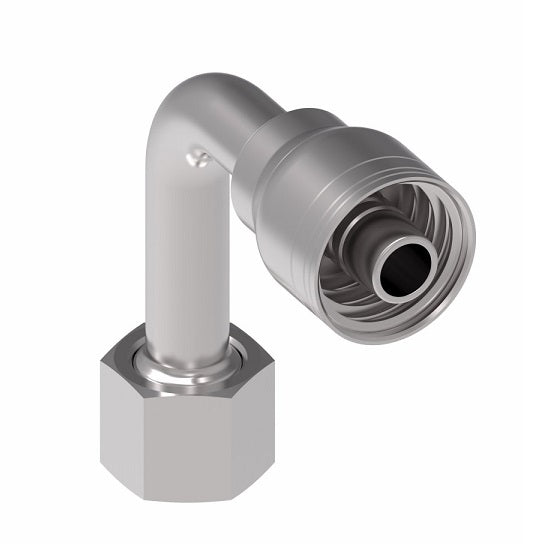

1 & 2 Wire TTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA8FRC8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA4FRC4	1AA4FRC4TZ	9/16-18	-04	2.09"	0.92"	0.17"	1.81"	11/16"
1AA6FRC4	-	11/16-16	-04	2.22"	1.30"	0.17"	2.13"	13/16"
1AA8FRC4	-	13/16-16	-04	2.59"	1.67"	0.17"	2.55"	15/16"
1AA6FRC6	-	11/16-16	-06	2.27"	1.34"	0.24"	2.13"	13/16"
1AA8FRC6	-	13/16-16	-06	2.55"	1.71"	0.26"	2.55"	15/16"
1AA8FRC8	-	13/16-16	-08	2.87"	1.67"	0.33"	2.51"	15/16"
1AA10FRC8	-	1-14	-08	2.98"	1.91"	0.38"	2.76"	1-1/8"
1AA10FRC10	-	1-14	-10	3.08"	1.91"	0.44"	2.76"	1-1/8"
1AA12FRC12**	-	1-3/16-12	-12	3.48"	2.30"	0.56"	3.78"	1-3/8"
1AA16FRC12	-	1-7/16-12	-12	4.04"	2.87"	0.81"	4.50"	1-5/8"
1AA16FRC16***	-	1-7/16-12	-16	4.22"	2.86"	0.78"	4.50"	1-5/8"
1AA20FRC20	-	1-11/16-12	-20	5.30"	3.57"	1.01"	5.09"	1-7/8"
1AA24FRC20	-	2-12	-20	4.32"	2.77"	1.05"	5.54"	2-1/4"
1AA24FRC24	-	2-12	-24	4.63"	2.81"	1.26"	5.54"	2-1/4"

** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure.

*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
