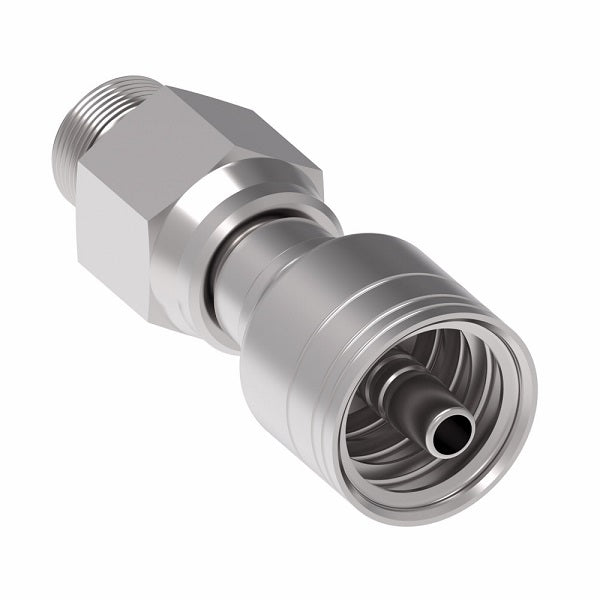

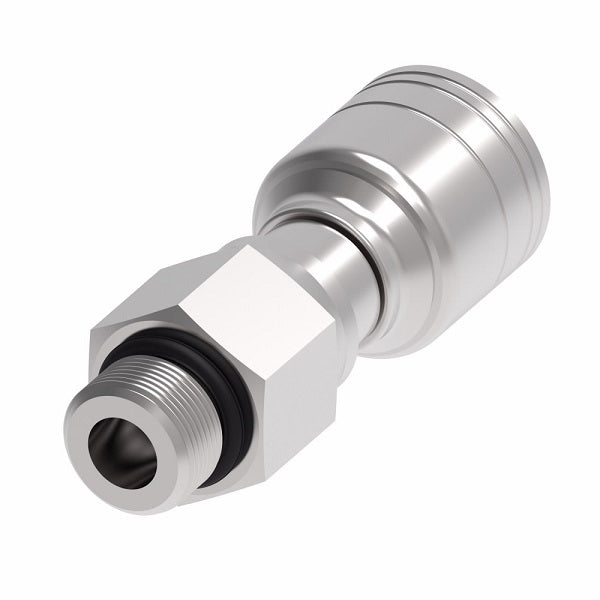

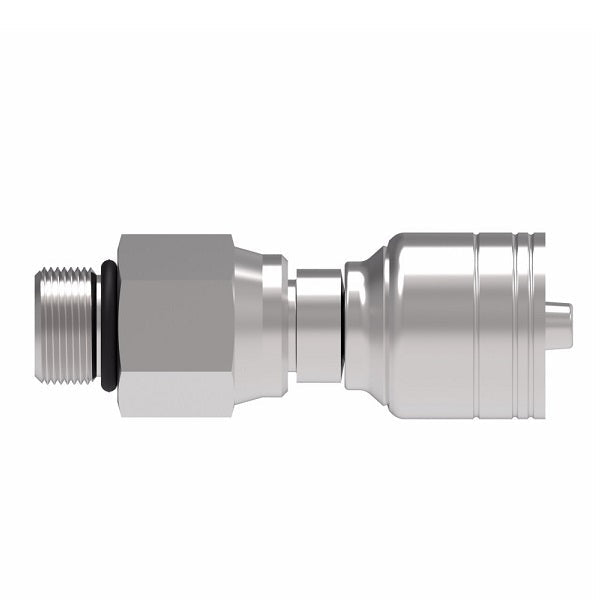

1AA8SB8 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -08 Male O-Ring Boss x -08 Hose Barb | Steel

1AA8SB8 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -08 Male O-Ring Boss x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$181.60 - $181.60

$181.60

$181.60 - $181.60

$181.60

Aeroquip® by Danfoss
TCC Crimp Fitting - Male ORB Straight Thread Swivel (With Sleeve) (SB) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA8SB8 Danfoss \| 10 \|
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Note:
TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Crimp Fitting Socket Data.PDF

Part Number Steel	Part Number Zinc-Plated Nickel Steel	Thread	Hose Dash Size	Length	Hose Cut-Off Factor	E&Oslash	Hex
1AA4SB4	-	7/16-20	-04	2.52"	1.59"	0.17"	3/4"
1AA6SB6	-	9/16-18	-06	2.72"	1.73"	0.26"	7/8"
1AA8SB10	-	3/4-16	-10	-	-	-	-
1AA8SB6	-	3/4-16	-08	2.66"	1.67"	0.26"	7/8"
1AA8SB8	-	3/4-16	-08	3.01"	1.84"	0.38"	1"
1AA10SB12	-	7/8-14	-12	3.43"	2.24"	0.61"	1-7/16"
1AA10SB8	1AA10SB8TZ	7/8-14	-08	3.03"	1.86"	0.38"	1"
1AA12SB8	-	1-1/16-12	-08	3.49"	2.32"	0.38"	1-7/16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
