1G10E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Plug | Brass
1G10E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Plug | Brass
1G10E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Plug | Brass
1G10E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Plug | Brass

1G10E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Plug | Brass

$30.94 - $30.94
$30.94
$30.94 - $30.94
$30.94

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 100 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 100 Series quick disconnect couplings are designed to prevent the crossing of lines.

These couplings are used for compressed air and gases.
Specifications for Variant SKU: 1G10E Danfoss
Brand: Hansen
Series: 100 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Non-interchangeable design prevents crossing of lines.
Applications & Markets:
  • General Pneumatics
  • Industrial Plants
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
100 1/4" 24 bar 350 psi 96 bar 2,800 psi 566 lpm 20 scfm

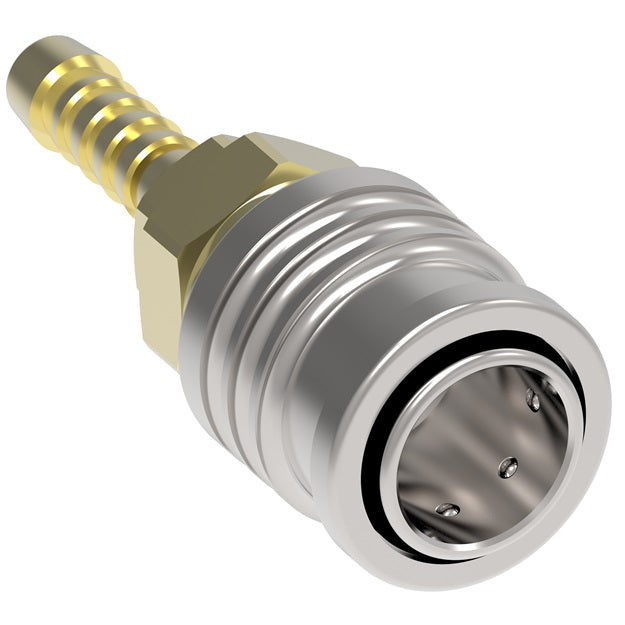

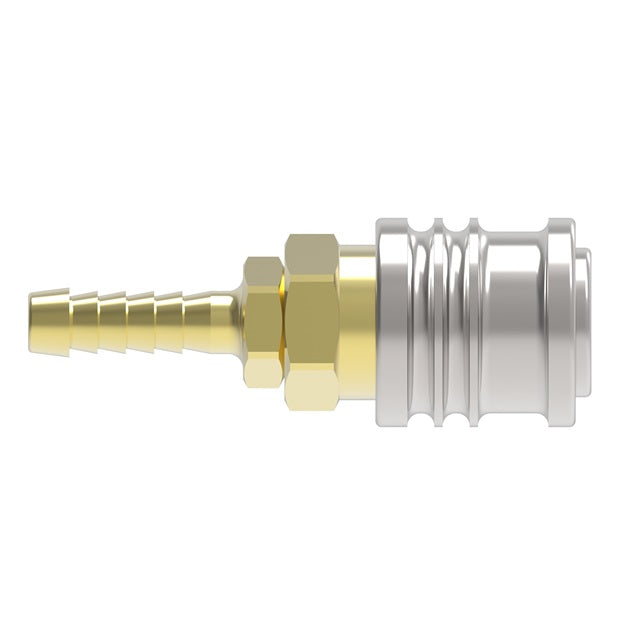

Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
100 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
A B
110E Socket/Female 1/4" 1/4" Hose Barb 1 2.49"
(63.2mm)		 1.03"
(26.2mm)
112E Socket/Female 1/4" 3/8" Hose Barb 1 2.49"
(63.2mm)		 1.03"
(26.2mm)
100 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
1G10E Plug/Male 1/4" 1/4" Hose Barb 2 2.00"
(50.8mm)		 0.56"
(14.2mm)
