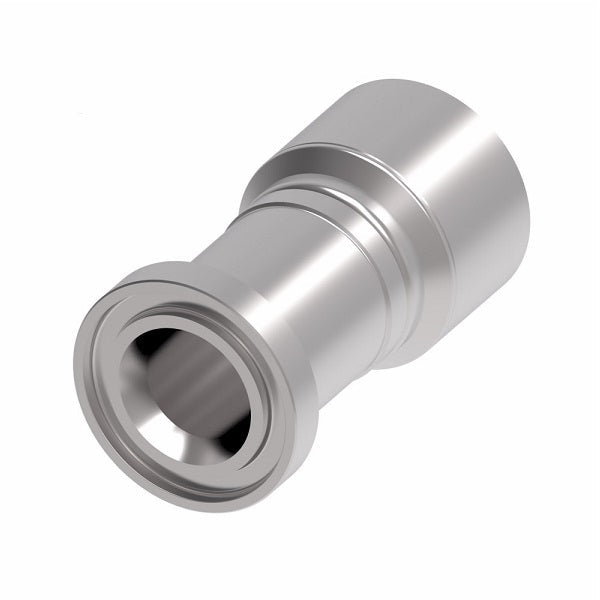

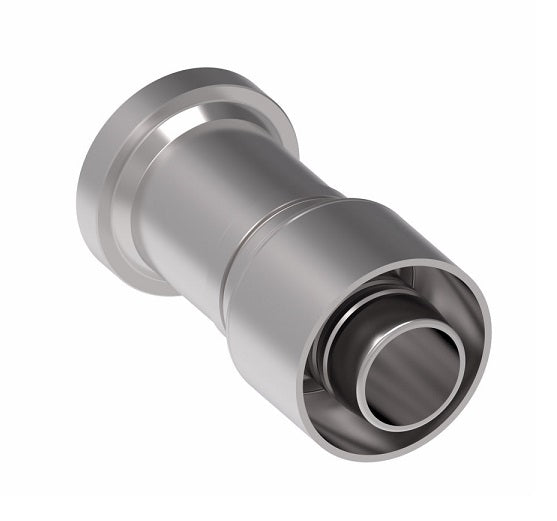

1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

Name: 1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1G16FL16 Danfoss
Price: 52.02 USD
Availability: InStock

$52.02 - $52.02

$52.02

$52.02 - $52.02

$52.02

Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1G16FL16 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread Flange Head Dia. K&Oslash	Hose Size	A	D	E&Oslash
1G16FL16	1.75"	-16	3.49"	2.14"	0.82"
1G16FL20	1.75"	-20	3.94"	2.21"	0.82"
1G20FL20	2.00"	-20	4.24"	2.51"	1.05"
1G24FL20	2.38"	-20	4.27"	2.54"	1.05"
1G32FL20	2.81"	-20	4.27"	2.54"	1.01"
1G24FL24	2.38"	-24	4.40"	2.58"	1.26"
1G32FL24	2.81"	-24	4.40"	2.58"	1.19"
1G24FL32	2.38"	-32	4.61"	2.63"	1.26"
1G32FL32	2.81"	-32	4.61"	2.63"	1.74"
