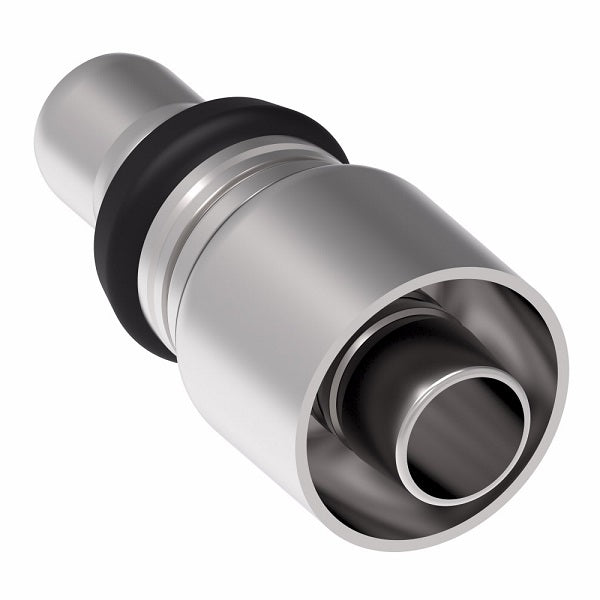

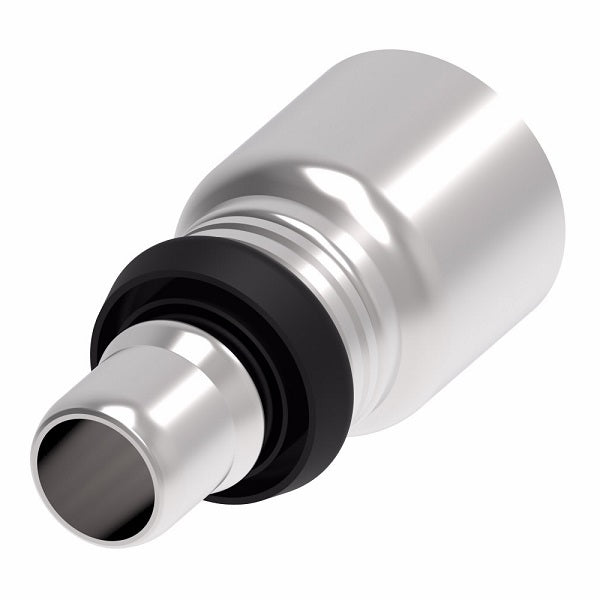

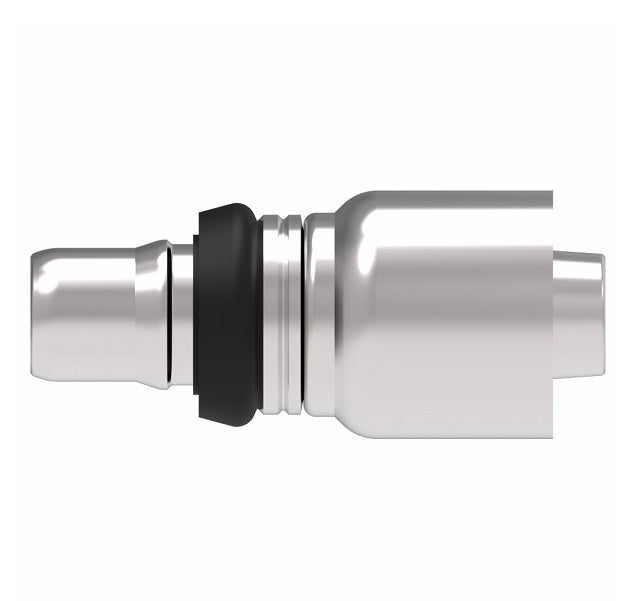

1G16MC16 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | OTC Crimp Fitting | -16 Male STC x -16 Hose Barb | Steel

1G16MC16 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | OTC Crimp Fitting | -16 Male STC x -16 Hose Barb | Steel | Pack of 10

$420.51 - $420.51

$420.51

$420.51 - $420.51

$420.51

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - OTC Crimp Fitting - Male STC (Snap to Connect) Hose End (MC) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1G16MC16 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Male STC, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC619 Series \| FC699 Series \| GH100 Series

Applications:
Hydraulic Power Steering Auxiliary Hydraulics Power Brakes Turbochargers Fuel Injection Systems Hydraulic Work Circuits Air Conditioning, Refrigeration and Truck and Bus Refrigerant Supply Lines Compressor Discharge Power Steering Oil Cooler Pneumatic Brakes Air Supply Lines Cooling Transmission Oil Coolers Heat Exchangers Equipment Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
Positive round-wire style latching mechanism. Swivels for installation (in absence of pressure). Low profile; compact design. Elastomeric o-ring seal. Capable of direct porting into valve blocks or manifolds. Dual purpose dust seal/release sleeve. Simple stamped release tool for disconnecting.
Benefits:
Fast reliable one-hand connections requiring no assembly tools. Eliminates cross-threading, over or undertorquing, and hose twisting. Installs easily in confined areas. Virtually zero leak performance per SAE J1176. Direct porting eliminates adapters to maximize cost savings. Resists external contamination. Allows easy disconnection with release tool (sold separately).
Technical Info:
Danfoss STC Connectors.PDF


Steel Part Number	D1	L1	L2	STC Release Tool
1G6MC4	0.17"	1.89"	1.15"	FF90213-06
1G6MC6*	0.26"	1.99"	1.20"	FF90213-06
1G8MC8	0.38"	2.37"	1.44"	FF90213-08
1G10MC10	0.50"	2.72"	1.56"	FF90213-10
1G16MC16	0.82"	3.30"	1.94"	FF90213-01-16S

* Made to order.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
