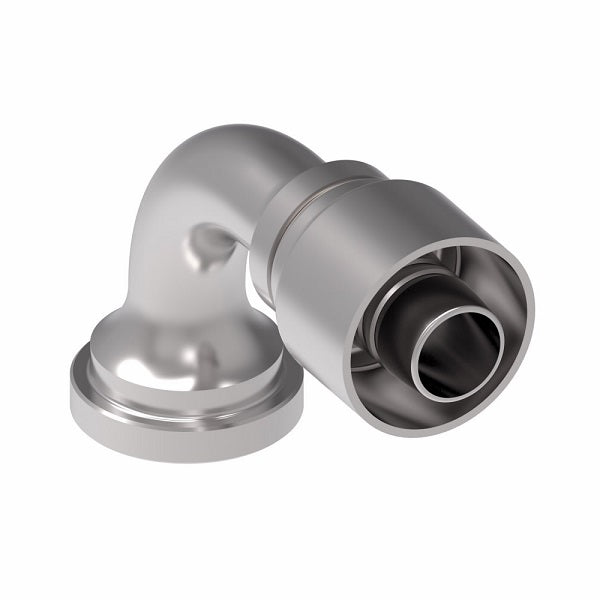

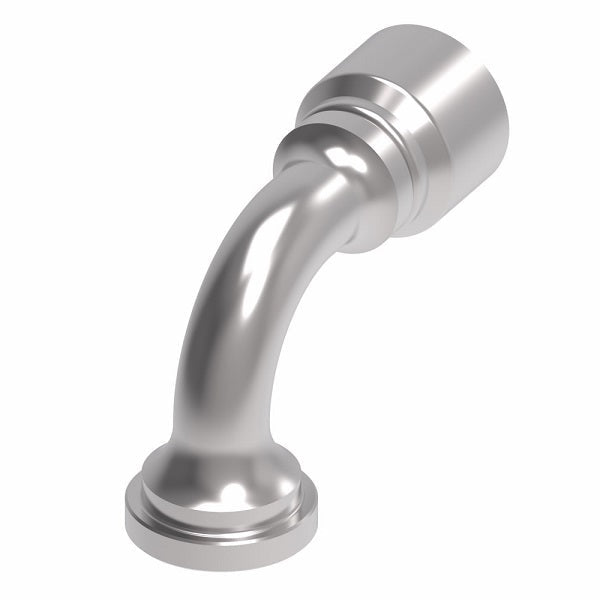

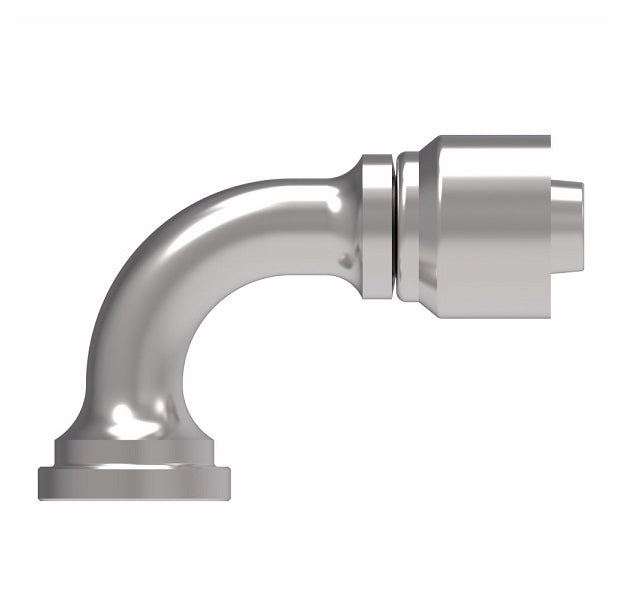

1G20FLB16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -16 Hose Barb | Steel | Pack of 10

1G20FLB16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -16 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$853.80 - $853.80

$853.80

$853.80 - $853.80

$853.80

Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1G20FLB16 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter KØ	Hose Size	A	D	EØ	H
1G16FLB16	1.75"	-16	4.22"	2.86"	0.76"	2.38"
1G20FLB16	2.00"	-16	4.85"	3.50"	0.76"	2.62"
1G16FLB20	1.75"	-20	4.66"	2.93"	0.76"	2.38"
1G20FLB20	2.00"	-20	5.30"	3.57"	1.01"	2.62"
1G24FLB20	2.37"	-20	6.04"	4.31"	1.01"	3.12"
1G20FLB24	2.00"	-24	5.43"	3.61"	1.01"	2.62"
1G24FLB24	2.37"	-24	6.18"	4.35"	1.26"	3.12"
1G24FLB32	-	-32	-	-	-	-
1G32FLB24	2.81"	-24	7.28"	5.45"	1.26"	4.50"
1G32FLB24.080	-	-24	-	-	-	-
1G32FLB32	2.81"	-32	7.47"	5.49"	1.75"	4.50"
1G32FLB32.082	-	-32	-	-	-	-
1G40FLB32	3.31	-32	7.47"	5.49"	1.75"	2.56"
