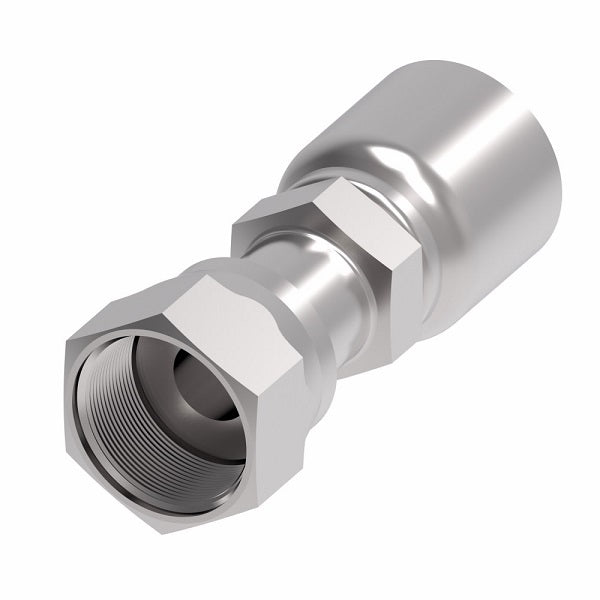

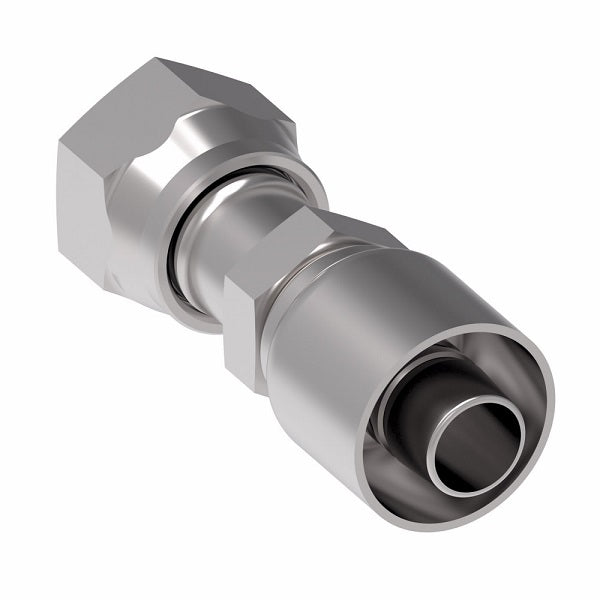

1GA16FR12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
1GA16FR12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10
1GA16FR12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10
1GA16FR12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

1GA16FR12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10

$368.33 - $368.33
$368.33
$368.33 - $368.33
$368.33

Aeroquip® by Danfoss
1 & 2 Wire OTC Female O-Ring Face Seal (ORS) Swivel (FR) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA16FR12 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1GA4FR4 9/16-18 -04 1.95" 1.03" 0.17" 11/16" 9/16"
1GA4FR6 9/16-18 -06 2.14" 1.15" 0.17" 11/16" 11/16"
1GA6FR6 11/16-16 -06 2.07" 1.24" 0.26" 13/16" 11/16"
1GA8FR8 13/16-16 -08 2.61" 1.50" 0.36" 15/16" 7/8"
1GA10FR10 1-14 -10 2.62" 1.61" 0.45" 1-1/8" 1-1/16"
1GA12FR10 1-3/16-12 -10 2.65" 1.63" 0.50" 1-3/8" 1-1/16"
1GA12FR12 1-3/16-12 -12 2.91" 1.72" 0.61" 1-3/8" 1-1/8"
1GA16FR12 1-7/16-12 -12 2.98" 1.79" 0.61" 1-5/8" 1-3/8"
1GA12FR16 1-3/16-12 -16 3.22" 1.86" 0.61" 1-3/8" 1-3/8"
1GA16FR16 1-7/16-12 -16 3.29" 1.94" 0.81" 1-5/8" 1-3/8"
1GA20FR16 1-11/16-12 -16 3.25" 1.90" 0.81" 1-7/8" 1-5/8"
1GA20FR20 1-11/16-12 -20 4.07" 2.33" 1.02" 1-7/8" 1-3/4"
1GA24FR20 2-12 -20 3.88" 2.15" 1.05" 2-1/4" 1"
1GA24FR24 2-12 -24 4.02" 2.19" 1.26" 2-1/4" 2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
