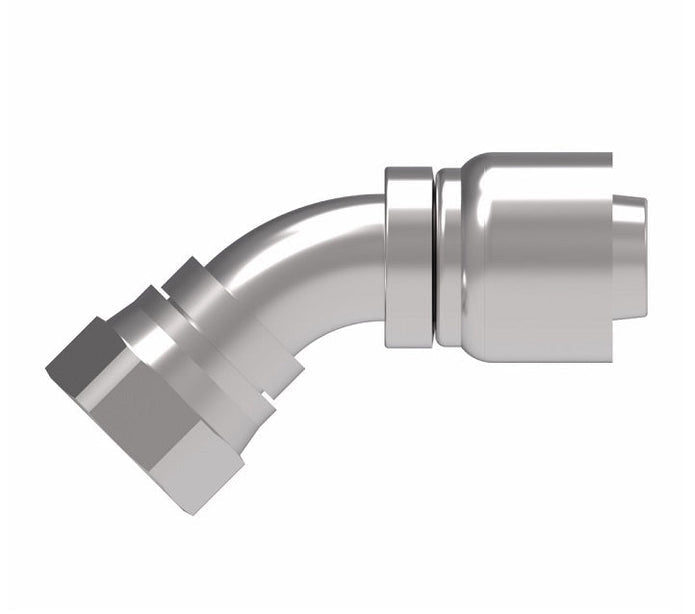

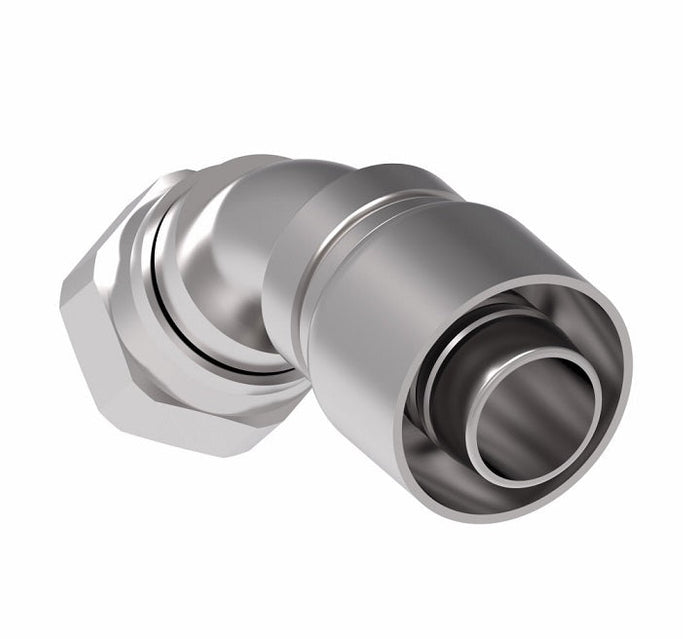

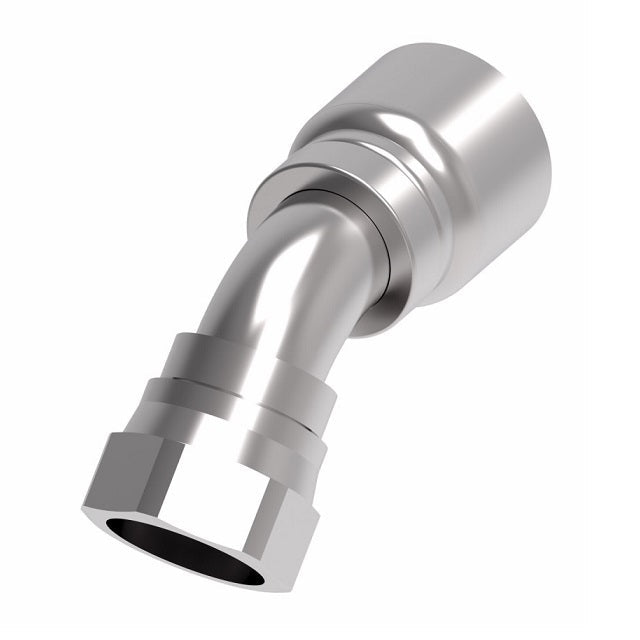

1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel

1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel

$196.84 - $196.84
$196.84
$196.84 - $196.84
$196.84

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA24FJA24 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1GA6FJA6 9/16-18 -06 2.31" 1.31" 0.24" 0.39" 11/16"
1GA8FJA8* 3/4-16 -08 2.82" 1.65" 0.37" 0.55" 7/8"
1GA10FJA8* 7/8-14 -08 3.03" 1.86" 0.38" 0.59" 1"
1GA10FJA10* 7/8-14 -10 2.82" 1.79" 0.46" 0.63" 1"
1GA12FJA12 1-1/16-12 -12 3.43" 2.24" 0.58" 0.78" 1-1/4"
1GA16FJA16 1-5/16-12 -16 3.74" 3.01" 0.81" 1.07" 1-1/2"
1GA20FJA20 1-5/8-12 -20 4.44" 2.71" 1.01" 1.22" 2"
1GA24FJA24 - -24 - - - - -

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
