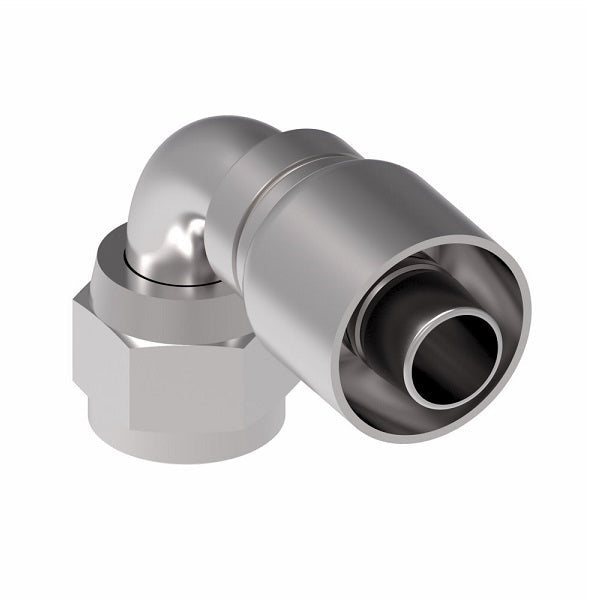

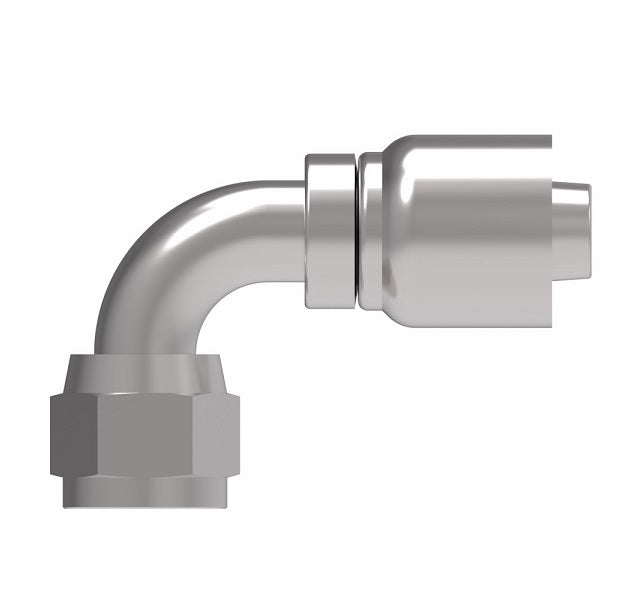

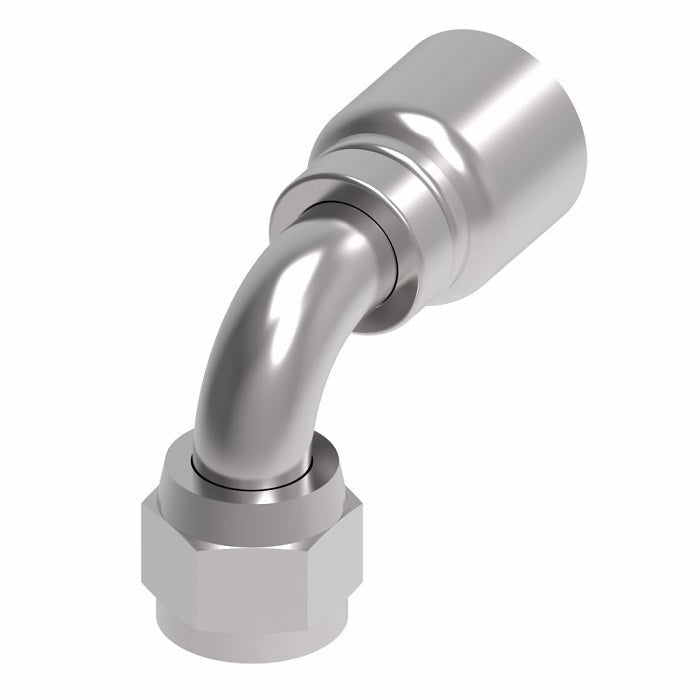

1GA6FJB8 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -06 Female JIC 37° Swivel x -08 Hose Barb | Steel

1GA6FJB8 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -06 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,198.60 - $1,198.60

$1,198.60

$1,198.60 - $1,198.60

$1,198.60

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJB) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA6FJB8 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	H	Hex 1
1GA4FJB4*	7/16-20	-04	1.84"	0.92"	0.17"	0.68"	9/16"
1GA6FJB6	9/16-18	-06	2.21"	1.22"	0.24"	0.84"	11/16"
1GA8FJB6*	3/4-16	-06	2.42"	1.42"	0.26"	1.09"	7/8"
1GA6FJB8	9/16-18	-08	2.43"	1.26"	0.24"	0.84"	11/16"
1GA8FJB8*	3/4-16	-08	2.59"	1.42"	0.37"	1.09"	7/8"
1GA10FJB10*	7/8-14	-10	2.76"	1.55"	0.46"	1.23"	1"
1GA12FJB12	1-1/16-12	-12	3.36"	2.17"	0.58"	1.82"	1-1/4"
1GA16FJB12	1-5/16-12	-12	3.37"	2.18"	0.61"	2.39"	1-1/2"
1GA16FJB16	1-5/16-12	-16	3.56"	2.87"	0.81"	2.39"	1-1/2"
1GA20FJB20	1-5/8-12	-20	4.25"	2.52"	1.01"	2.75"	2"
1GA24FJB24	-	-24	-	-	-	-	-
1GA32FJB32	-	-32	-	-	-	-	-

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
