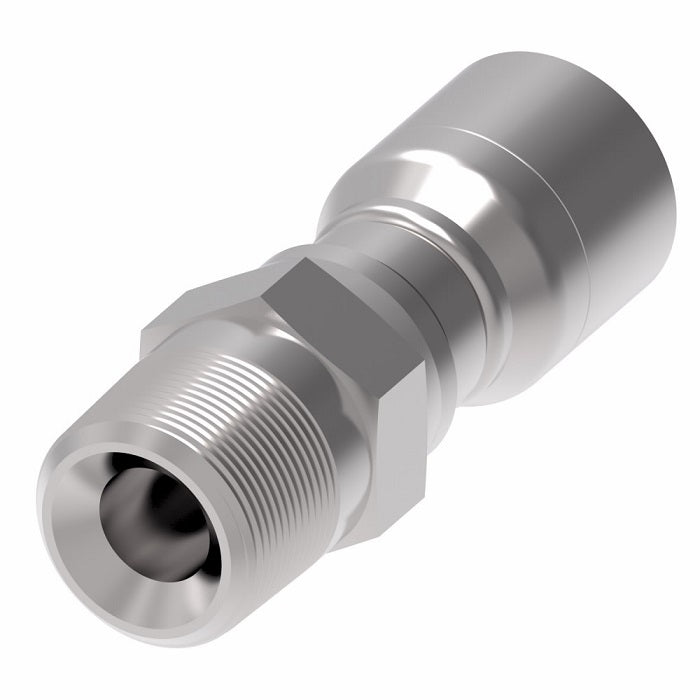

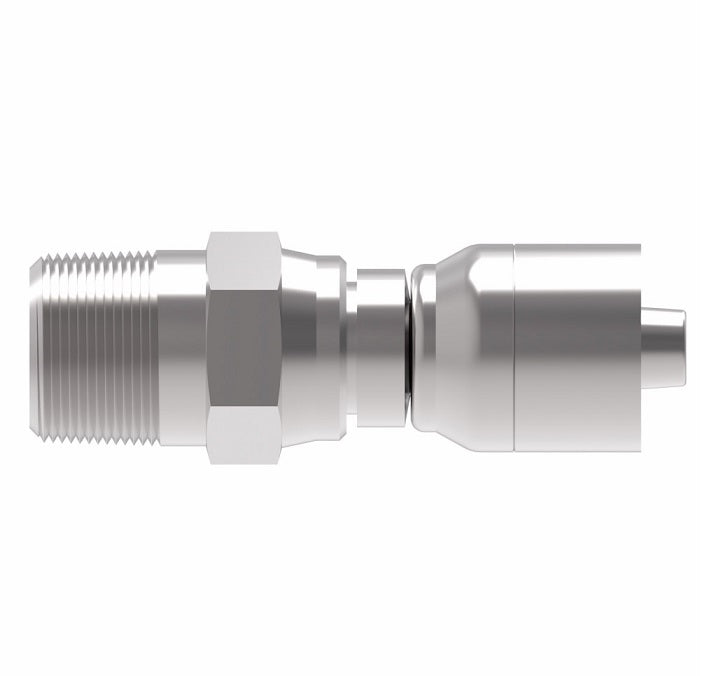

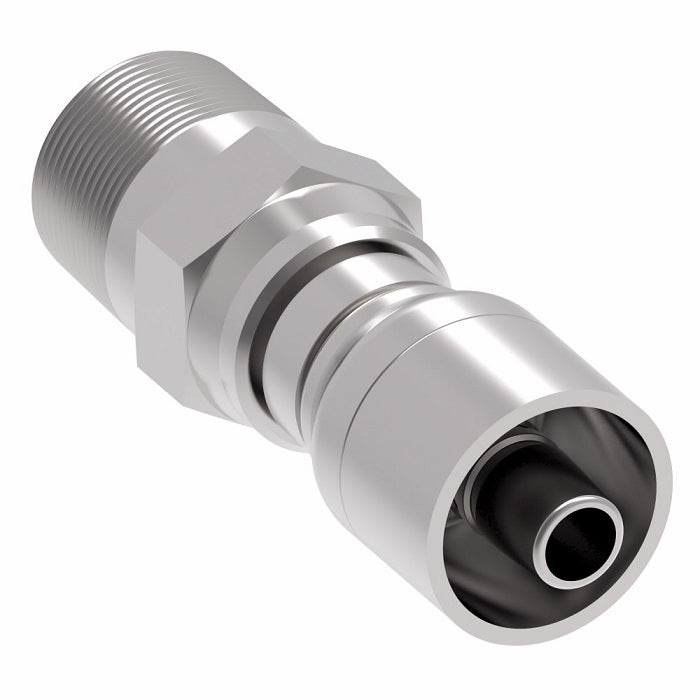

1GA8PS6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Swivel Crimp Fitting (PS) | -08 Male Pipe x -06 Hose Barb | Steel

1GA8PS6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Swivel Crimp Fitting (PS) | -08 Male Pipe Swivel x -06 Hose Barb | Steel

Name: 1GA8PS6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Swivel Crimp Fitting (PS) | -08 Male Pipe Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA8PS6 Danfoss
Price: 95.3 USD
Availability: InStock

$95.30 - $95.30

$95.30

$95.30 - $95.30

$95.30

Aeroquip® by Danfoss
1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA8PS6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC318 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1
1GA4PS4	1/4-18	-04	2.54"	1.62"	0.17"	3/4"
1GA8PS6	1/2-14	-06	2.85"	1.85"	0.26"	7/8"
1GA8PS8	1/2-14	-08	3.13"	1.96"	0.38"	15/16"
1GA12PS12	3/4-14	-12	3.24"	2.05"	0.61"	1-3/8"
1GA16PS16	1-11-1/2	-16	3.88"	2.53"	0.81"	1-1/2"
