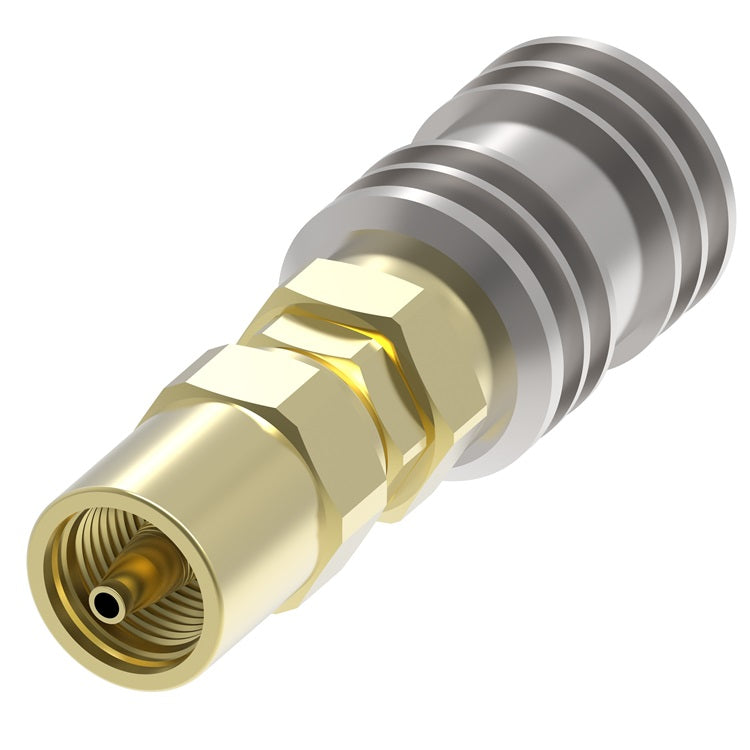

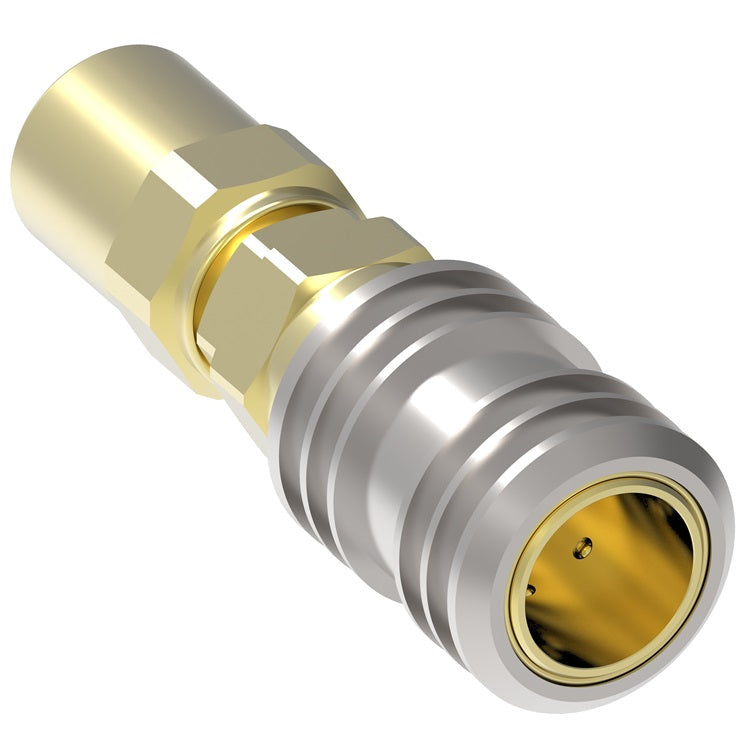

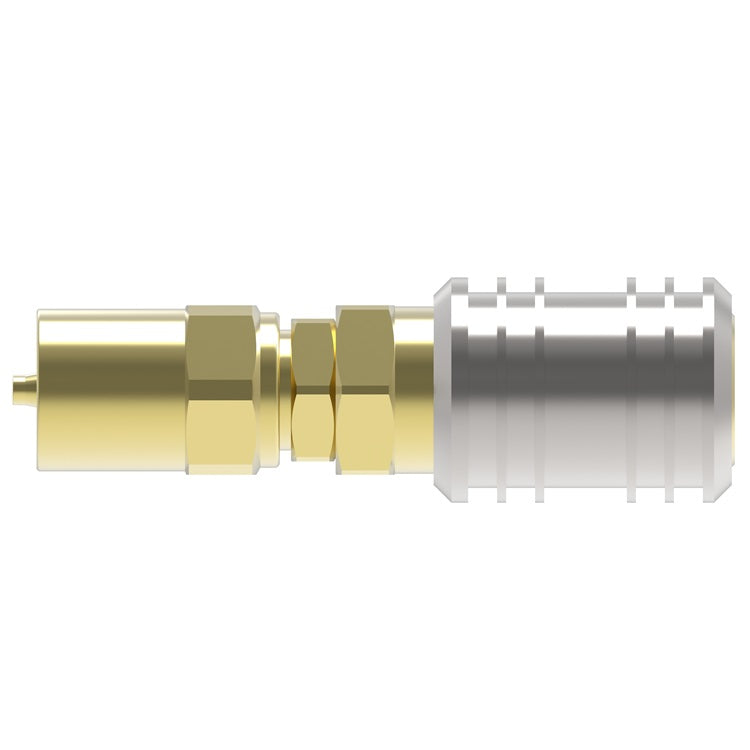

1SD11 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | Hose Crimp End | 3/4" Hose OD | 3/8" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass

1SD11 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | Hose Crimp End | 3/4" Hose OD | 3/8" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass

$27.16 - $27.16
$27.16
$27.16 - $27.16
$27.16

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 1000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1SD11 Danfoss
Brand: Hansen
Series: 1000 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 9 lpm 179 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
1000 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
1SB1 Socket/Female 1/4" 1/4" 15/32" Hose Crimp Brass 1 2.69"
(68.33mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SB3 Socket/Female 1/4" 1/4" 1/2" Hose Crimp Brass 1 2.69"
(68.33mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SB7 Socket/Female 1/4" 1/4" 5/8" Hose Crimp Brass 1 2.69"
(68.33mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SC5 Socket/Female 1/4" 5/16" 9/16" Hose Crimp Brass 1 2.75"
(69.85mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SC7 Socket/Female 1/4" 5/16" 5/8" Hose Crimp Brass 1 2.75"
(69.85mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SD7 Socket/Female 1/4" 3/8" 5/8" Hose Crimp Brass 1 2.81"
(71.37mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SD9 Socket/Female 1/4" 3/8" 11/16" Hose Crimp Brass 1 2.81"
(71.37mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SD11 Socket/Female 1/4" 3/8" 3/4" Hose Crimp Brass 1 2.81"
(71.37mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1000 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
3PB1 Plug/Male 1/4" 1/4" 15/32" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB3 Plug/Male 1/4" 1/4" 1/2" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB5 Plug/Male 1/4" 1/4" 9/16" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PB7 Plug/Male 1/4" 1/4" 5/8" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PC5 Plug/Male 1/4" 5/16" 9/16" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PC7 Plug/Male 1/4" 5/16" 5/8" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD5 Plug/Male 1/4" 3/8" 9/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PD7 Plug/Male 1/4" 3/8" 5/8" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD9 Plug/Male 1/4" 3/8" 11/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.91"
(23.11mm)		 0.81"
(20.57mm)
3PD11 Plug/Male 1/4" 3/8" 3/4" Hose Crimp Steel 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
