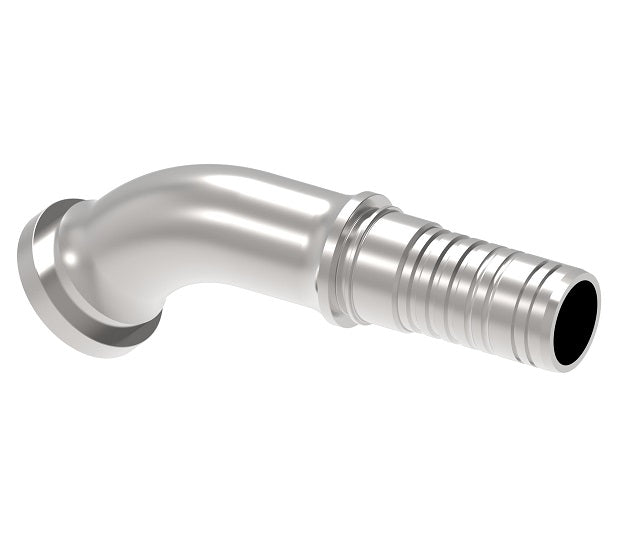

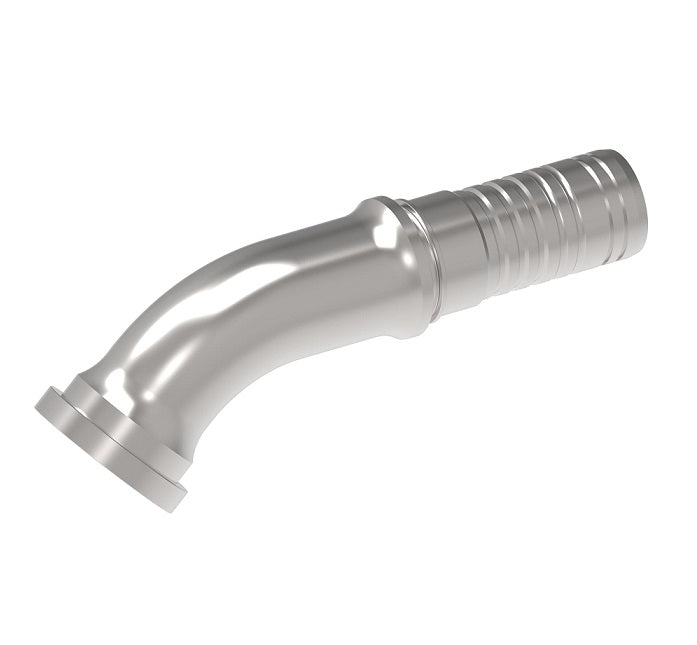

1W12FHA12 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 45° Elbow | -12 SAE Code 62 Flange x -12 Hose Barb | Steel

1W12FHA12 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 45° Elbow | -12 SAE Code 62 Flange x -12 Hose Barb | Steel

Name: 1W12FHA12 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 45° Elbow | -12 SAE Code 62 Flange x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1W12FHA12 Danfoss
Price: 68.53 USD
Availability: InStock

$68.53 - $68.53

$68.53

$68.53 - $68.53

$68.53

Aeroquip by Danfoss
SAE Code 62 Flange for Spiral Hose - 45° Elbow

Quantity

Specifications for Variant SKU: 1W12FHA12 Danfoss
Brand:	Aeroquip
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC850 Series

Features:
Nipple with wire trap area.
Material:
Carbon Steel.
Compatible Hose:
DYNAMAX EC850


Part Number Carbon Steel	Flange	Hose ND	Hose Size	A mm	D mm	H mm	E mm	KØ mm
1W12FHA12	3/4"	19	-12	130,1mm	78,1mm	27,0mm	15,1mm	41,3mm
1W16FHA16	1"	25	-16	160,6mm	94,0mm	32,0mm	19,6mm	47,6mm
1W20FHA20*	1-1/4"	31	-20	190,0mm	115,0mm	39,0mm	25,5mm	54,0mm

* Assembly with full flange is not possible, use half flanges.

Note: Drawings may differ from actual parts.
