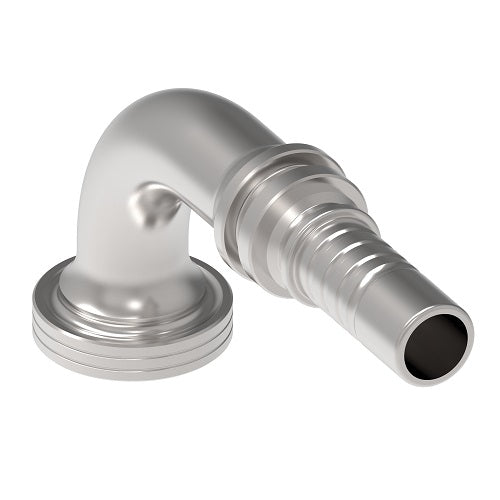

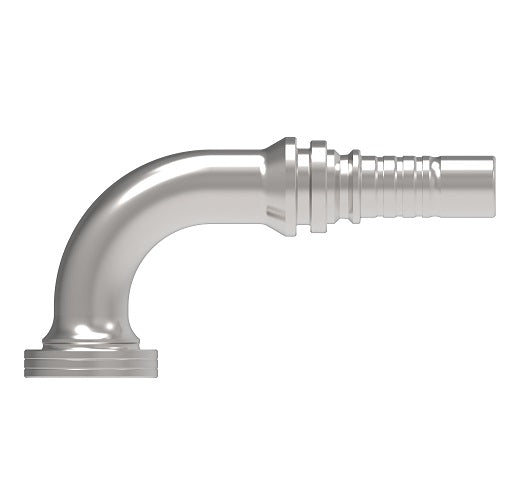

1W16FHB16 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 90° Elbow | -16 SAE Code 62 Flange x -16 Hose Barb | Steel

1W16FHB16 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 90° Elbow | -16 SAE Code 62 Flange x -16 Hose Barb | Steel

Name: 1W16FHB16 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four Spiral Hose | 90° Elbow | -16 SAE Code 62 Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1W16FHB16 Danfoss
Price: 95.92 USD
Availability: InStock

$95.92 - $95.92

$95.92

$95.92 - $95.92

$95.92

Aeroquip by Danfoss
SAE Code 62 Flange for Spiral Hose - 90° Elbow

Specifications for Variant SKU: 1W16FHB16 Danfoss
Brand:	Aeroquip
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC850 Series

Features:
Nipple with wire trap area.
Material:
Carbon Steel.
Compatible Hose:
DYNAMAX EC850


Part Number Carbon Steel	Flange	Hose ND	Hose Size	A mm	D mm	H mm	E mm	KØ mm
1W12FHB12	3/4"	19	-12	124,8mm	72,8mm	59,0mm	15,1mm	41,3mm
1W16FHB16	1"	25	-16	155,6mm	89,0mm	71,0mm	19,6mm	47,6mm
1W20FHB20*	1-1/4"	31	-20	168,5mm	93,6mm	150,0mm	25,5mm	54,0mm

* Assembly with full flange is not possible, use half flanges.

Note: Drawings may differ from actual parts.
