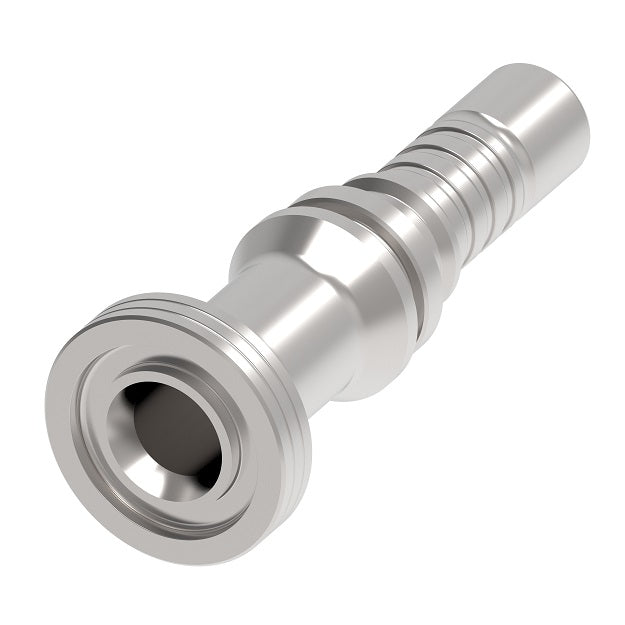

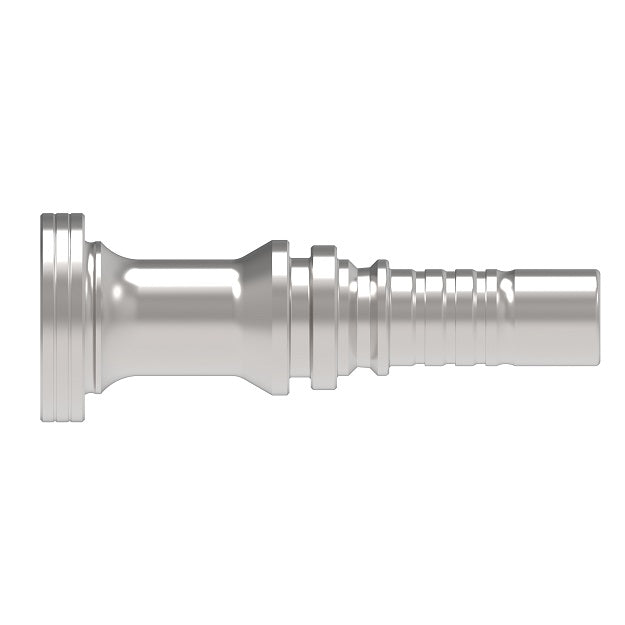

1W40FH40 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -40 SAE Code 62 Flange x -40 Hose Barb | Steel

1W40FH40 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -40 SAE Code 62 Flange x -40 Hose Barb | Steel

Name: 1W40FH40 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -40 SAE Code 62 Flange x -40 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1W40FH40 Danfoss
Price: 955.04 USD
Availability: InStock

$955.04 - $955.04

$955.04

$955.04 - $955.04

$955.04

Aeroquip by Danfoss
SAE Code 62 Flange for Spiral Hose - Straight

Quantity

Specifications for Variant SKU: 1W40FH40 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Code 62 Flange, 2-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC850 Series

Features:
Nipple with wire trap area.
Material:
Carbon Steel.
Compatible Hose:
DYNAMAX EC850


Part Number Carbon Steel	Flange	Hose ND	Hose Size	A mm	D mm	E mm	KØ mm
1W12FH12	3/4"	19	-12	110,6mm	58,6mm	15,1mm	41,3mm
1W16FH16	1"	25	-16	134,0mm	67,4mm	19,6mm	47,6mm
1W20FH20*	1-1/4"	31	-20	145,2mm	70,3mm	25,5mm	54,0mm
1W40FH40	-	-	-40	-	-	-	-

* Assembly with full flange is not possible, use half flanges.

Note: Drawings may differ from actual parts.

.
