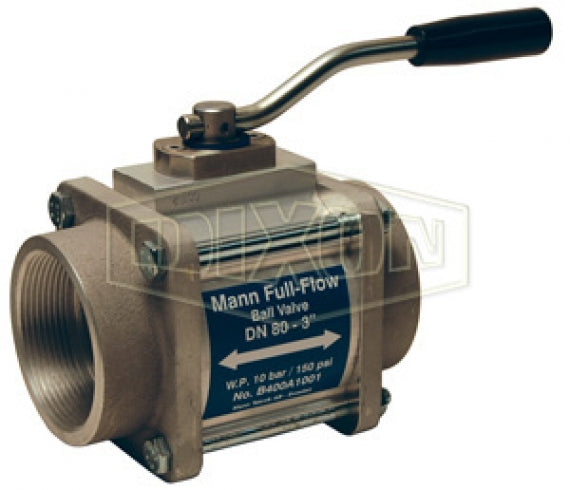

1WAYBV300 by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 3" Female NPT x 3" Female NPT | Aluminum

1WAYBV300 by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 3" Female NPT x 3" Female NPT | Aluminum

Save $389.65 Save $389.65
$974.12
$974.12 - $974.12
$974.12
$584.47
$584.47 - $584.47
$584.47

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | One-Way | Aluminum
Specifications for Variant SKU: 1WAYBV300 Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): Aluminum
Seal Material(s): FKM
Features:
  • Two ports - one inlet and one outlet.
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
1WAYBV200 Female NPT x Female NPT 2" -
1WAYBV300 Female NPT x Female NPT 3" -
1WAYBV400 Female NPT x Female NPT 4" -

1WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
1WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"

1WAYBV200VIC Grooved End x Grooved End 2" -
1WAYBV300VIC Grooved End x Grooved End 3" -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
