1WB32 Aeroquip by by Danfoss | Socket for EC600, GH466 1W Four Spiral Hose Fittings | -32 Hose Size | Steel

1WB32 Aeroquip by Danfoss | Socket for EC600, GH466 1W Four Spiral Hose Fittings | -32 Hose Size | Steel

Name: 1WB32 Aeroquip by Danfoss | Socket for EC600, GH466 1W Four Spiral Hose Fittings | -32 Hose Size | Steel
Brand: Danfoss/Eaton
SKU: 1WB32 Danfoss
Price: 120.6 USD
Availability: InStock

$120.60 - $120.60

$120.60

$120.60 - $120.60

$120.60

Aeroquip by Danfoss

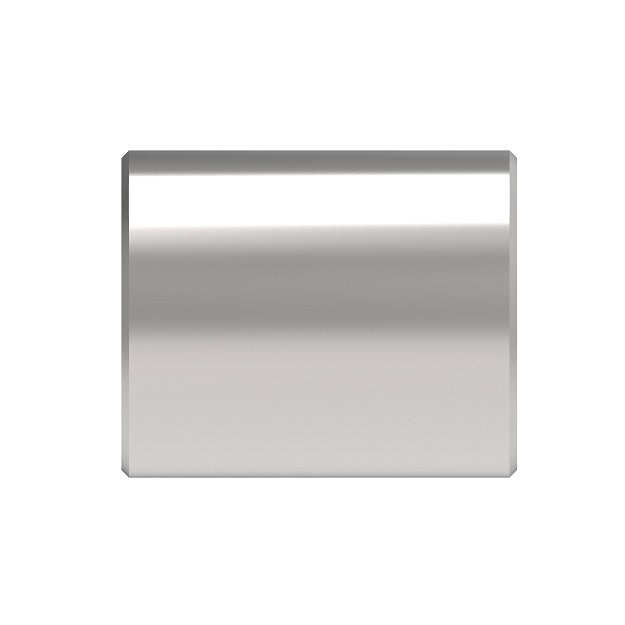

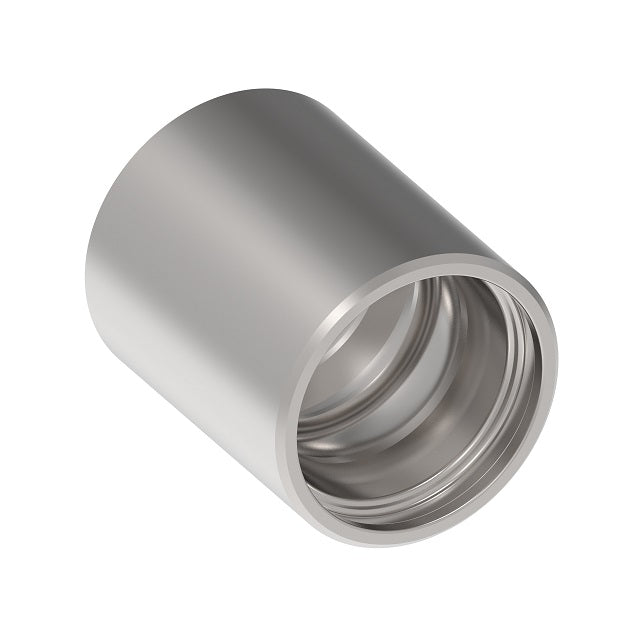

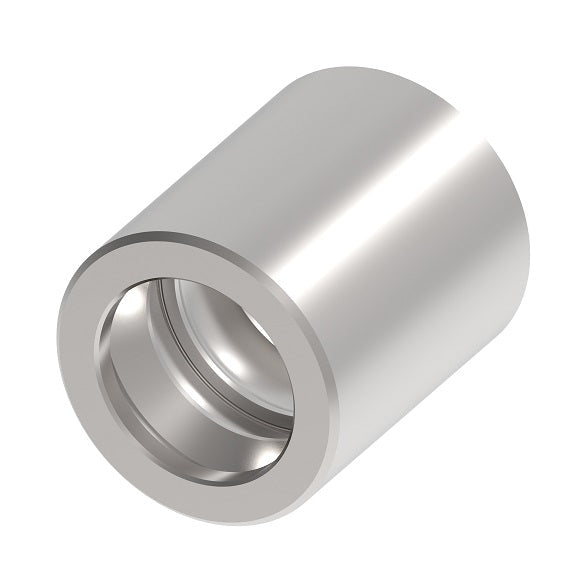

Socket for 1W Four Spiral Hose Fittings

Specifications for Variant SKU: 1WB32 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Material(s):	Carbon Steel
Compatible with the following Series:	EC600 Series \| GH466 Series

Part Number Carbon Steel	Hose DN	Hose Size	Length	OD	Use with Hose Part Number
1WA12	20	-12	2.05"	1.70"	EC910-12, GH506-12
1WA16	25	-16	2.62"	1.92"	EC910-16, GH506-16
1WB32	51	-32	4.22"	3.45"	EC600-32, GH466-32
1WD12	20	-12	2.24"	1.66"	EC600-12, EC850-12
1WD16	25	-16	2.66"	2.02"	EC600-16, EC850-16
1WE20	31	-20	3.10	2.50	EC850-20

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
