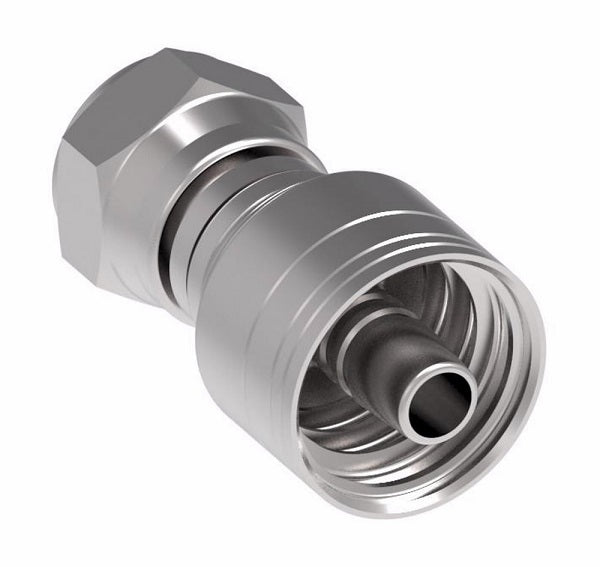

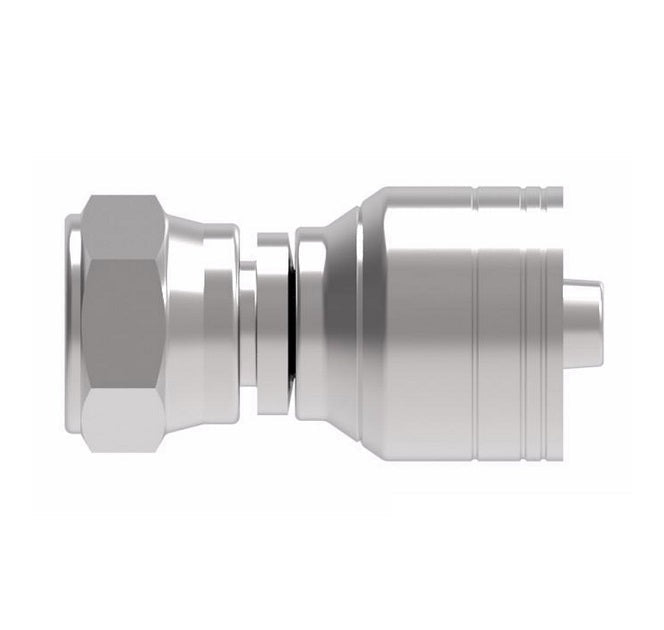

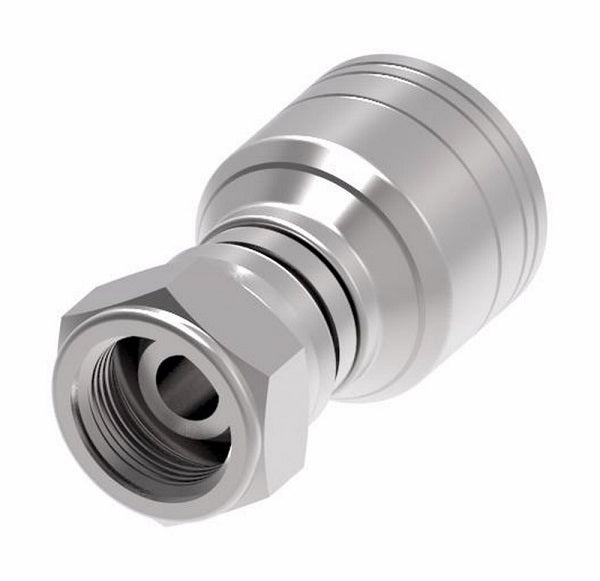

1A12BF12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

1A12BF12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

Name: 1A12BF12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A12BF12 Danfoss
Price: 46.31 USD
Availability: InStock

$46.31 - $46.31

$46.31

$46.31 - $46.31

$46.31

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BF) - Steel

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.

Quantity

Specifications for Variant SKU: 1A12BF12 Danfoss
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1
1A4BF4	G 1/4	-04	1.66"	0.74"	0.16"	0.75"
1A6BF4	G 3/8	-04	1.79"	0.87"	0.17"	0.87"
1A6BF6	G 3/8	-06	1.83"	0.83"	0.26"	0.87"
1A8BF6	G 1/2	-06	1.88"	0.89"	0.26"	1.06"
1A8BF8	G 1/2	-08	2.11"	0.94"	0.38"	1.06"
1A10BF8	G 5/8	-08	2.22"	1.05"	0.38"	1.18"
1A10BF10	G 5/8	-10	2.13"	0.97"	0.50"	1.18"
1A12BF10	G 3/4	-10	-	-	-	-
1A12BF12	G 3/4	-12	2.18"	1.00"	0.61"	1.26"
1A16BF16	G 1	-16	2.44"	1.09"	0.81"	1.61"
1A20BF20	G 1-1/4	-20	2.90"	1.16"	1.05"	1.97"
