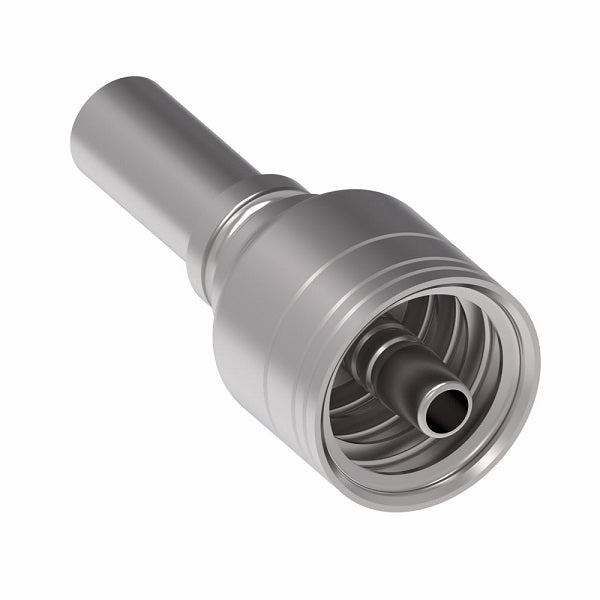

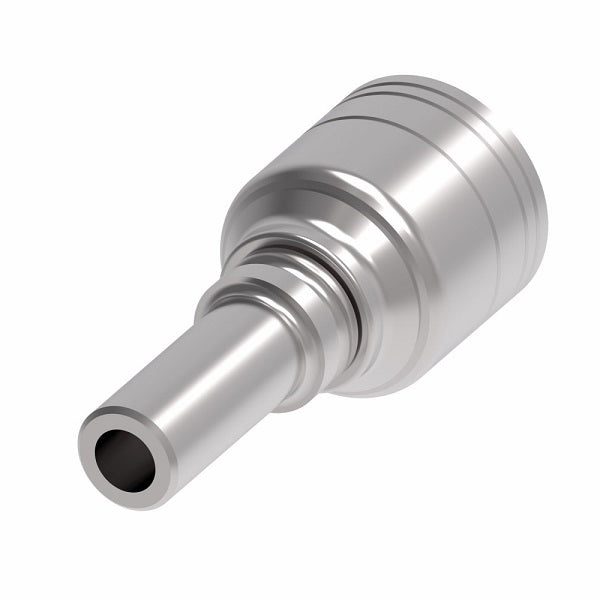

1A12LM6 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -12 Tube OD x -06 Hose Barb | Steel
1A12LM6 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -12 Tube OD x -06 Hose Barb | Steel
1A12LM6 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -12 Tube OD x -06 Hose Barb | Steel
1A12LM6 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -12 Tube OD x -06 Hose Barb | Steel

1A12LM6 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -12 Tube OD x -06 Hose Barb | Steel

$29.88 - $29.88
$29.88
$29.88 - $29.88
$29.88

Aeroquip® by Danfoss
TTC Crimp Fitting - Metric Standpipe Tube (LM) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A12LM6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Tube Stub, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Warning:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Steel
Part Number 		Tube O.D Hose Dash
Size		 A Hose Cut-OffFactor (D) E&Oslash B
1A8LM4 -08 -04 2.22" 1.30" 0.16" 0.91"
1A10LM4 -10 -04 2.22" 1.30" 0.17" 0.91"
1A10LM6 -10 -06 2.34" 1.35" 0.26" 0.91"
1A12LM6 -12 -06 2.38" 1.38" 0.26" 0.95"
1A15LM8 -15 -08 2.63" 1.46" 0.38" 0.98"
1A16LM8 -16 -08 2.68" 1.51" 0.38" 1.02"
1A18LM10 -08 -10 - - - -
1A20LM10 -20 -10 - - - -
1A22LM12 -22 -12 2.80" 1.61" 0.61" 1.10"
1A25LM12 -25 -12 2.76" 1.57" 0.61" 1.06"
1A30LM16 -30 -16 2.99" 1.64" 0.81" 1.10"
