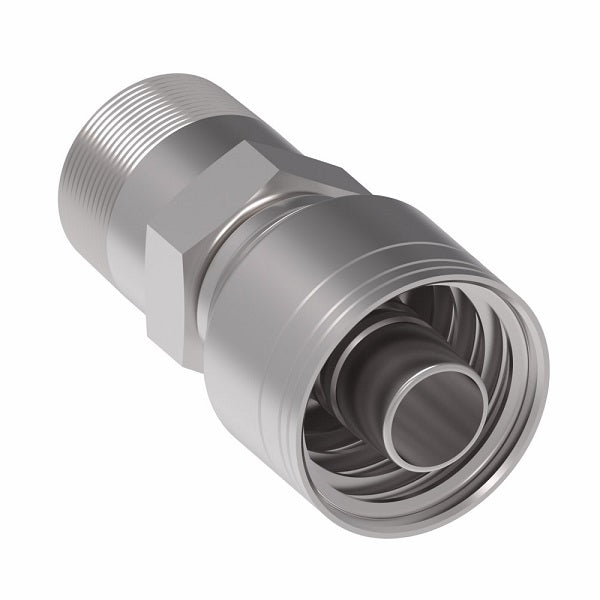

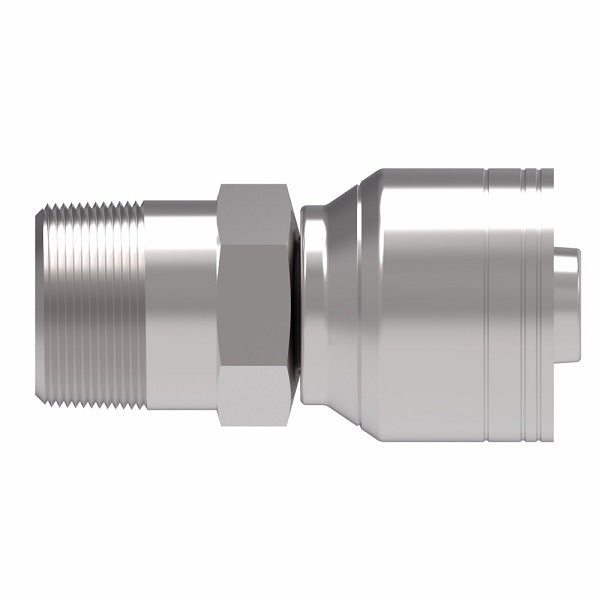

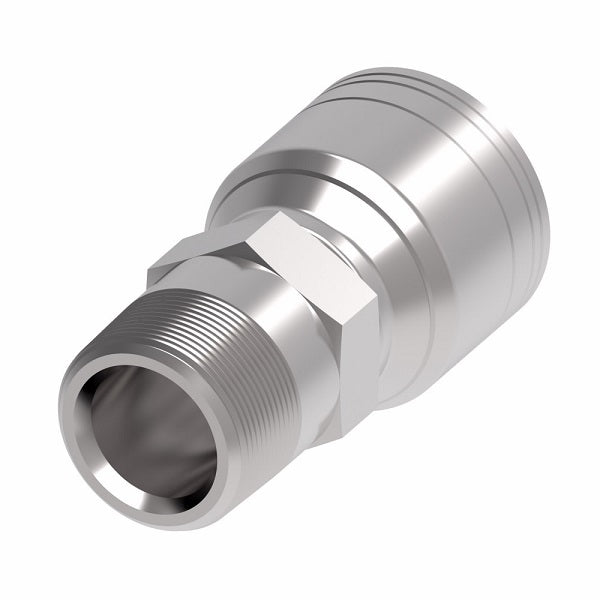

1A16BT16 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -16 Male BSPT x -16 Hose Barb | Steel
1A16BT16 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -16 Male BSPT x -16 Hose Barb | Steel
1A16BT16 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -16 Male BSPT x -16 Hose Barb | Steel
1A16BT16 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -16 Male BSPT x -16 Hose Barb | Steel

1A16BT16 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -16 Male BSPT x -16 Hose Barb | Steel

$63.43 - $63.43
$63.43
$63.43 - $63.43
$63.43

Aeroquip® by Danfoss
1 & 2 Wire TTC BSP Male Tapered, BSPT Crimp Fitting (BT) - Straight

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable.
Specifications for Variant SKU: 1A16BT16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male BSPT, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ Hex 2
1A4BT4 R 1/4-19 -04 1.99" 1.07" 0.16" 0.55"
1A6BT6 R 3/8-19 -06 2.16" 1.16" 0.26" 0.75"
1A8BT6 R 1/2-14 -06 - - - -
1A8BT8 R 1/2-14 -08 2.61" 1.44" 0.38" 0.87"
1A12BT12 R 3/4-14 -12 2.80" 1.61" 0.61" 1.18"
1A16BT16 R 1-11 -16 3.20" 1.84" 0.81" 1.42"
1A20BT20 R 1-1/4-11 -20 3.79" 2.05" 1.05" 1.81"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
