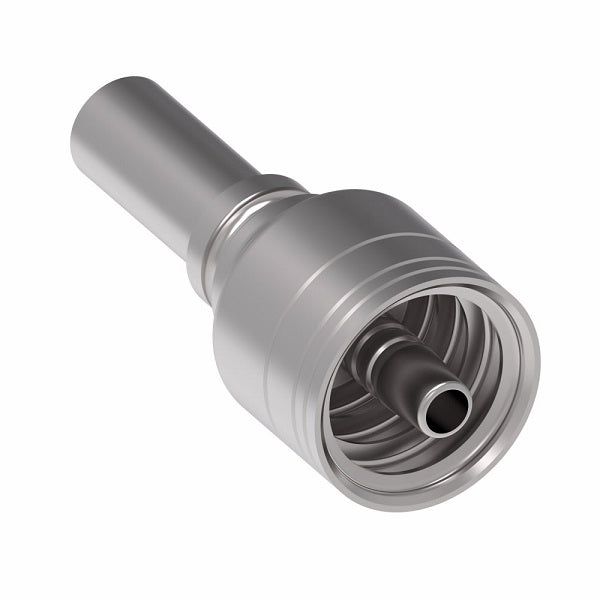

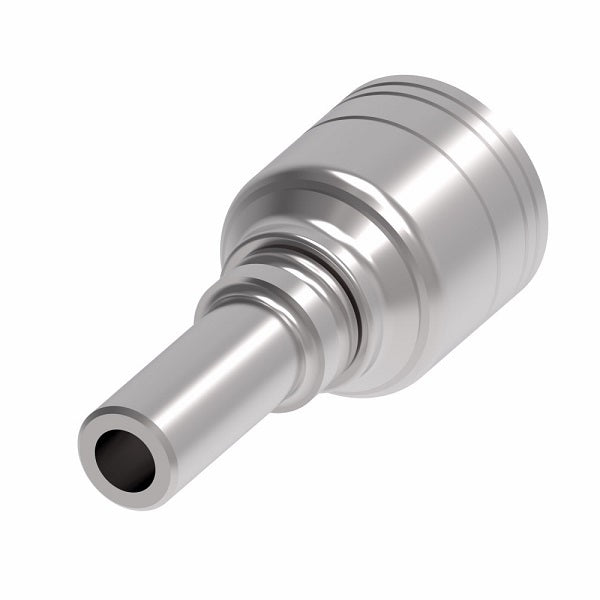

1A18LM10 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -18 Tube OD x -10 Hose Barb | Steel
1A18LM10 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -18 Tube OD x -10 Hose Barb | Steel
1A18LM10 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -18 Tube OD x -10 Hose Barb | Steel
1A18LM10 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -18 Tube OD x -10 Hose Barb | Steel

1A18LM10 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -18 Tube OD x -10 Hose Barb | Steel

$58.92 - $58.92
$58.92
$58.92 - $58.92
$58.92

Aeroquip® by Danfoss
TTC Crimp Fitting - Metric Standpipe Tube (LM) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A18LM10 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/8in Tube Stub, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Warning:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Steel
Part Number 		Tube O.D Hose Dash
Size		 A Hose Cut-OffFactor (D) E&Oslash B
1A8LM4 -08 -04 2.22" 1.30" 0.16" 0.91"
1A10LM4 -10 -04 2.22" 1.30" 0.17" 0.91"
1A10LM6 -10 -06 2.34" 1.35" 0.26" 0.91"
1A12LM6 -12 -06 2.38" 1.38" 0.26" 0.95"
1A15LM8 -15 -08 2.63" 1.46" 0.38" 0.98"
1A16LM8 -16 -08 2.68" 1.51" 0.38" 1.02"
1A18LM10 -08 -10 - - - -
1A20LM10 -20 -10 - - - -
1A22LM12 -22 -12 2.80" 1.61" 0.61" 1.10"
1A25LM12 -25 -12 2.76" 1.57" 0.61" 1.06"
1A30LM16 -30 -16 2.99" 1.64" 0.81" 1.10"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
