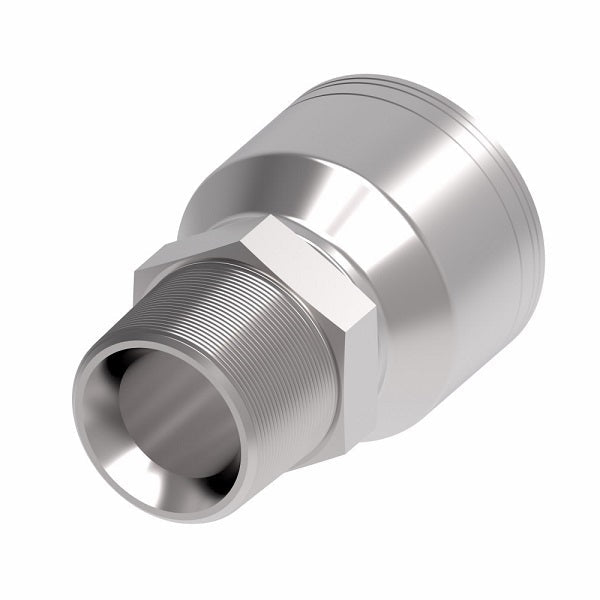

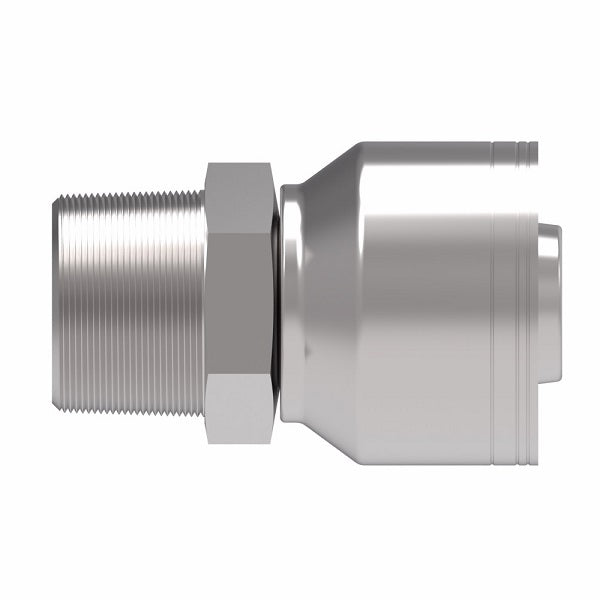

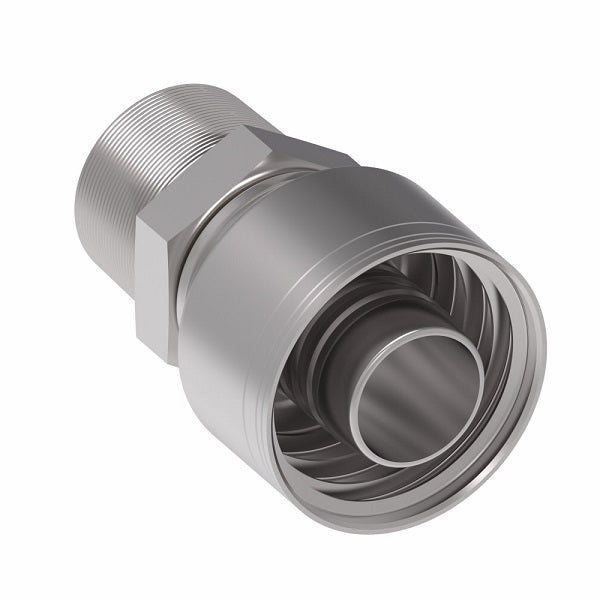

1A20BT20 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -20 Male BSPT x -20 Hose Barb | Steel

1A20BT20 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -20 Male BSPT x -20 Hose Barb | Steel

Name: 1A20BT20 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -20 Male BSPT x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A20BT20 Danfoss
Price: 186.77 USD
Availability: InStock

$186.77 - $186.77

$186.77

$186.77 - $186.77

$186.77

Aeroquip® by Danfoss
1 & 2 Wire TTC BSP Male Tapered, BSPT Crimp Fitting (BT) - Straight

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable.

Quantity

Specifications for Variant SKU: 1A20BT20 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male BSPT, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
1A4BT4	R 1/4-19	-04	1.99"	1.07"	0.16"	0.55"
1A6BT6	R 3/8-19	-06	2.16"	1.16"	0.26"	0.75"
1A8BT6	R 1/2-14	-06	-	-	-	-
1A8BT8	R 1/2-14	-08	2.61"	1.44"	0.38"	0.87"
1A12BT12	R 3/4-14	-12	2.80"	1.61"	0.61"	1.18"
1A16BT16	R 1-11	-16	3.20"	1.84"	0.81"	1.42"
1A20BT20	R 1-1/4-11	-20	3.79"	2.05"	1.05"	1.81"
