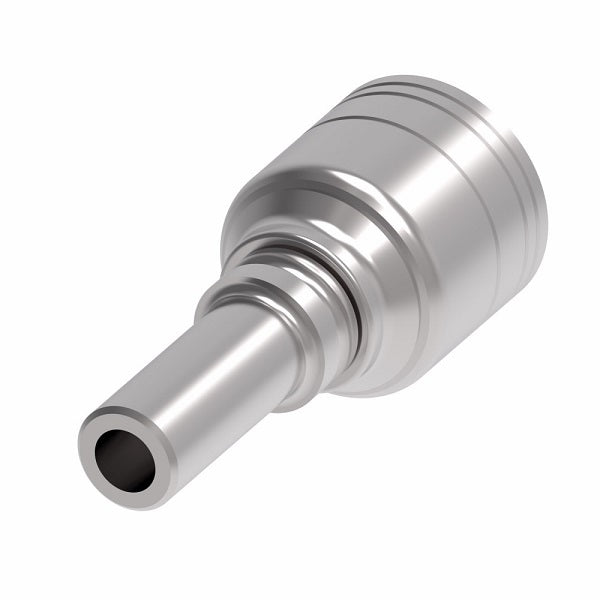

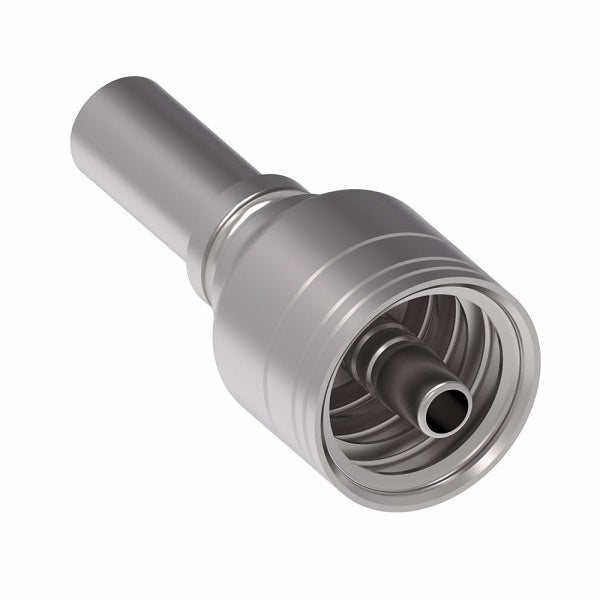

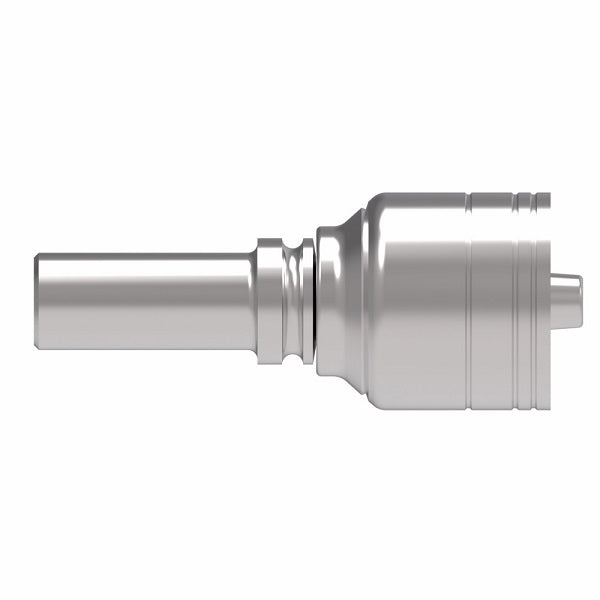

1A22LM12 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -22 Tube OD x -12 Hose Barb | Steel

1A22LM12 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -22 Tube OD x -12 Hose Barb | Steel

Name: 1A22LM12 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -22 Tube OD x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A22LM12 Danfoss
Price: 78.55 USD
Availability: InStock

$78.55 - $78.55

$78.55

$78.55 - $78.55

$78.55

Aeroquip® by Danfoss
TTC Crimp Fitting - Metric Standpipe Tube (LM) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A22LM12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-3/8in Tube Stub, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Warning:
TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube O.D	Hose Dash Size	A	Hose Cut-OffFactor (D)	E&Oslash	B
1A8LM4	-08	-04	2.22"	1.30"	0.16"	0.91"
1A10LM4	-10	-04	2.22"	1.30"	0.17"	0.91"
1A10LM6	-10	-06	2.34"	1.35"	0.26"	0.91"
1A12LM6	-12	-06	2.38"	1.38"	0.26"	0.95"
1A15LM8	-15	-08	2.63"	1.46"	0.38"	0.98"
1A16LM8	-16	-08	2.68"	1.51"	0.38"	1.02"
1A18LM10	-08	-10	-	-	-	-
1A20LM10	-20	-10	-	-	-	-
1A22LM12	-22	-12	2.80"	1.61"	0.61"	1.10"
1A25LM12	-25	-12	2.76"	1.57"	0.61"	1.06"
1A30LM16	-30	-16	2.99"	1.64"	0.81"	1.10"
