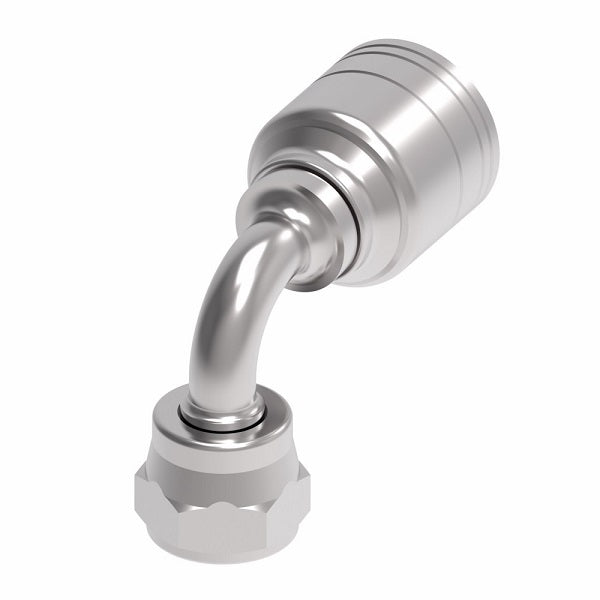

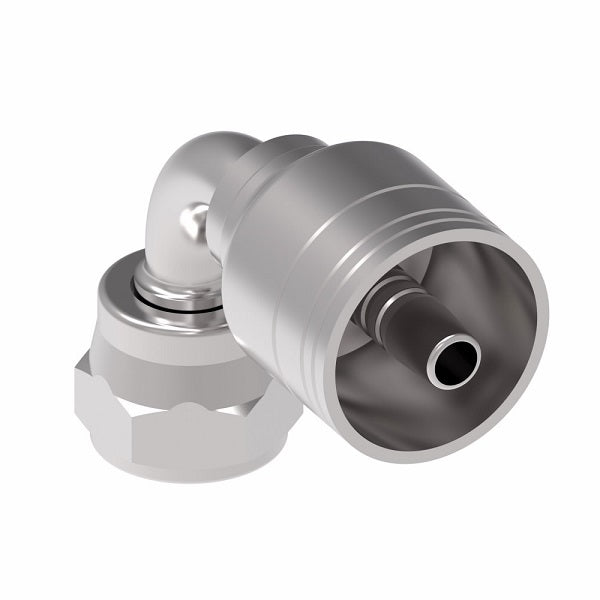

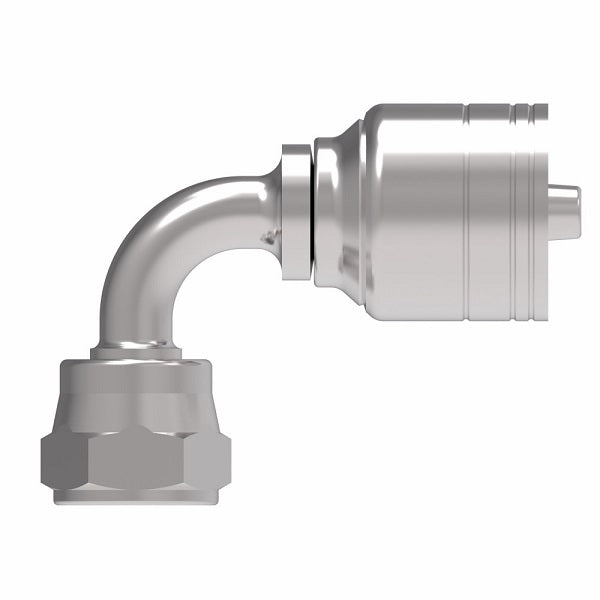

1A4BFB4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female swivel 90° elbow (BFB) Crimp Fitting | -04 Female BSPP Swivel x -04 Hose Barb | Steel

1A4BFB4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -04 Female BSPP Swivel x -04 Hose Barb | Steel

Name: 1A4BFB4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -04 Female BSPP Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A4BFB4 Danfoss
Price: 29.32 USD
Availability: InStock

$29.32 - $29.32

$29.32

$29.32 - $29.32

$29.32

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BFB) - 90° Elbow

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.

Quantity

Specifications for Variant SKU: 1A4BFB4 Danfoss
Shape (Orientation):	90 Degree
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1A4BFB4	G 1/4	-04	1.80"	0.88"	0.16"	0.98"	0.67"
1A6BFB6	G 3/8	-06	2.32"	1.32"	0.26"	1.38"	0.87"
1A8BFB6	G 1/2	-06	2.98"	1.98"	0.26"	1.88"	1.06"
1A8BFB8	G 1/2	-08	2.52"	1.35"	0.38"	1.48"	1.06"
1A10BFB8	G 5/8	-08	3.57"	2.40"	0.38"	2.22"	1.06"
1A10BFB10	G 5/8	-10	3.57"	1.41"	0.50"	2.22"	1.06"
1A12BFB12	G 3/4	-12	3.24"	2.05"	0.61"	1.87"	1.26"
1A16BFB16	G 1	-16	4.65"	3.30"	0.81"	2.81"	1.61"
1A20BFB20	G 1-1/4	-20	5.75"	4.02"	1.05"	3.25"	1.97"
