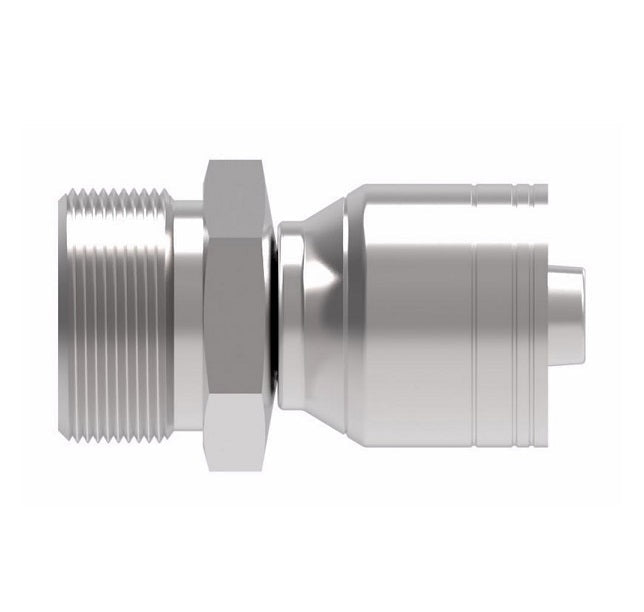

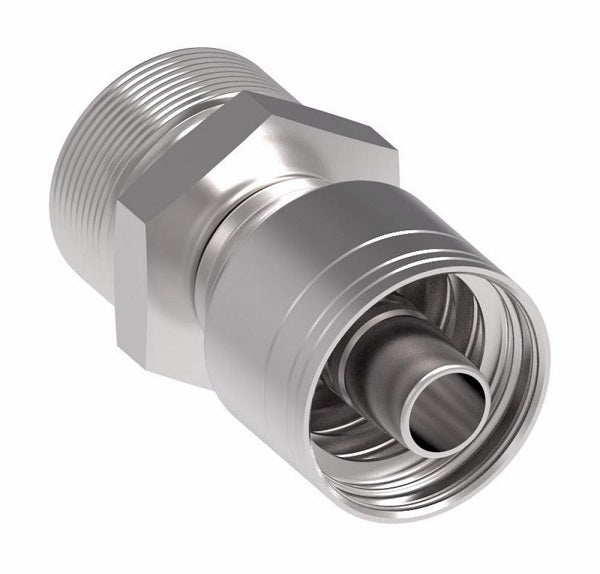

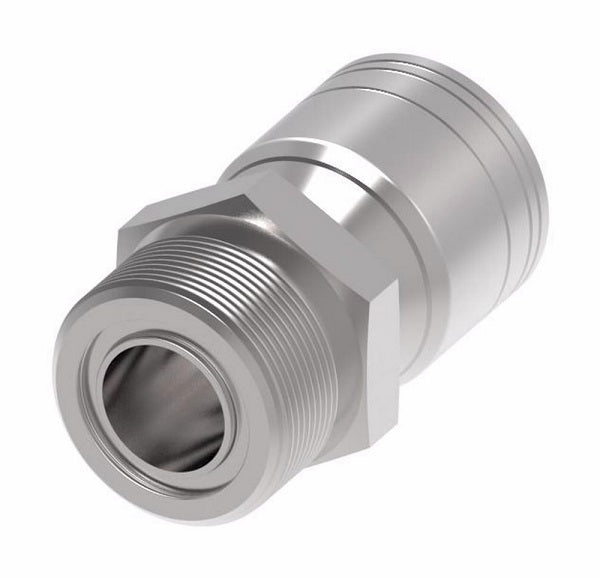

1AA16MR12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -16 Male O-Ring Face Seal x -12 Hose Barb | Steel

1AA16MR12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -16 Male O-Ring Face Seal x -12 Hose Barb | Steel

Name: 1AA16MR12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -16 Male O-Ring Face Seal x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA16MR12 Danfoss
Price: 41.45 USD
Availability: InStock

$41.45 - $41.45

$41.45

$41.45 - $41.45

$41.45

Aeroquip® by Danfoss
1 & 2 Wire TTC Male ORS Crimp Fitting (MR) - Straight

(Formerly Eaton Aeroquip)

Fitting does not include O-Ring.

Specifications for Variant SKU: 1AA16MR12 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
1AA4MR4	9/16-18	-04	1.78"	0.86"	0.17"	5/8"
1AA6MR4	11/16-16	-04	-	-	-	-
1AA6MR6	11/16-16	-06	2.05"	1.16"	0.26"	3/4"
1AA8MR6	13/16-16	-06	1.79"	0.95"	0.26"	7/8"
1AA8MR8	13/16-16	-08	2.54"	1.34"	0.38"	7/8"
1AA10MR8	1-14	-08	2.17"	1.17"	0.38"	1-1/16"
1AA12MR8	1-3/16-12	-08	2.27"	1.27"	0.38"	1-1/4"
1AA10MR10	1-14	-10	2.26"	1.44"	0.48"	1-1/16"
1AA12MR10	1-3/16-12	-10	2.26"	1.24"	0.50"	1-1/4"
1AA12MR12	1-3/16-12	-12	2.63"	1.53"	0.61"	1-1/4"
1AA16MR12	1-7/16-12	-12	2.53"	1.34"	0.61"	1-1/2"
1AA16MR16	1-7/16-12	-16	2.96"	1.69"	0.81"	1-1/2"
1AA20MR16	1-11/16-12	-16	-	-	-	-
1AA20MR20	1-11/16-12	-20	3.35"	1.80"	1.03"	1-3/4"
