Aeroquip® by Danfoss

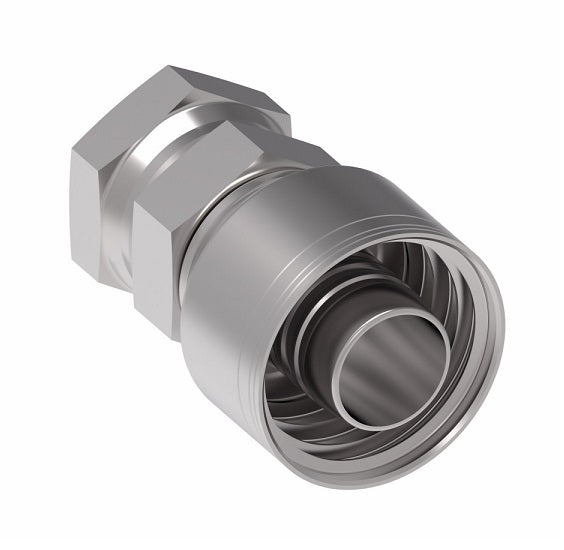

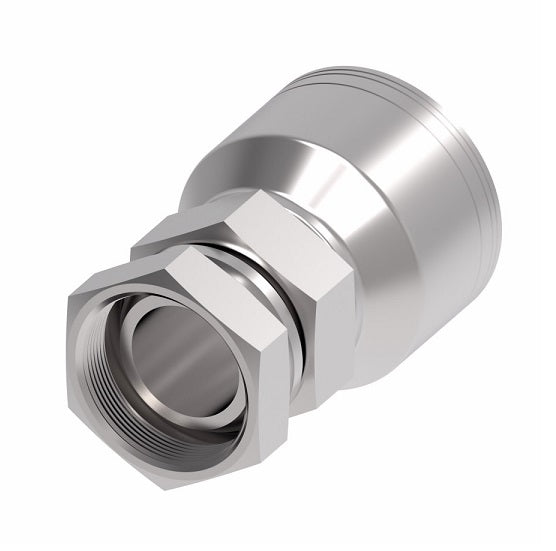

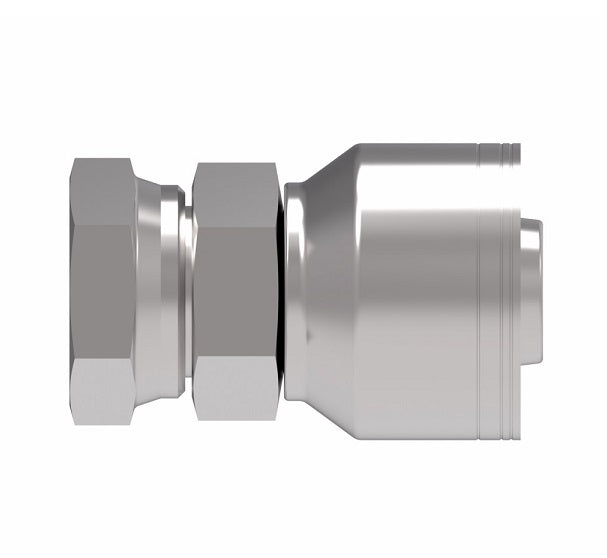

Female Pipe Swivel (SP) TTC Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA20SP20 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPSM, 1-1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Dash Size	A	Hose Cut-OffFactor (D)	EØ	Hex 2	Hex 1
1AA4SP4	1/4-18	-04	1.88"	1.09"	0.17"	9/16"	11/16"
1AA6SP6	3/8-18	-06	2.04"	1.20"	0.26"	11/16"	7/8"
1AA8SP8	1/2-14	-08	2.40"	1.41"	0.38"	7/8"	1"
1AA12SP12	3/4-14	-12	2.62"	1.56"	0.61"	1-1/8"	1-1/4"
1AA16SP16	1-11-1/2	-16	3.11"	1.18"	0.81"	1-3/8"	1-1/2"
1AA20SP20	1-1/4-11-1/2	-20	-	-	-	-	-
