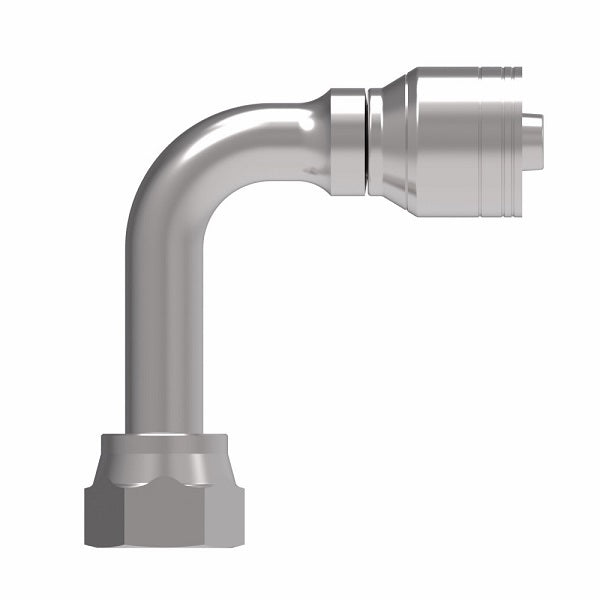

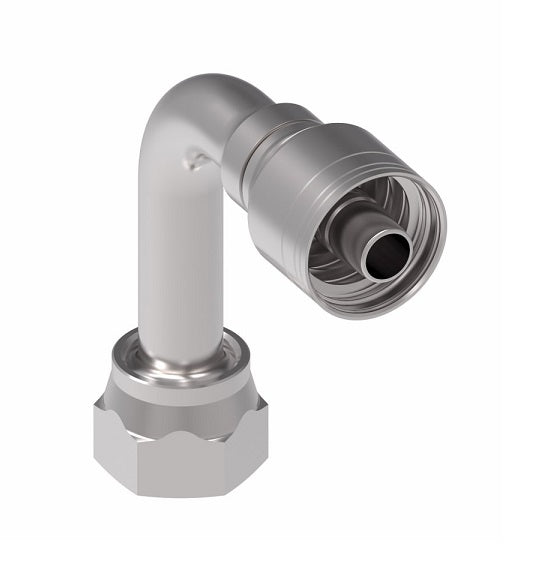

1AA4FRC4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Zinc-Nickel Plated Steel
1AA4FRC4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10
1AA4FRC4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10
1AA4FRC4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Zinc-Nickel Plated Steel

1AA4FRC4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,484.40 - $1,484.40
$1,484.40
$1,484.40 - $1,484.40
$1,484.40

Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA4FRC4TZ Danfoss | 10 |
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Zinc-Nickel Plated Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1AA4FRC4 1AA4FRC4TZ 9/16-18 -04 2.09" 0.92" 0.17" 1.81" 11/16"
1AA6FRC4 - 11/16-16 -04 2.22" 1.30" 0.17" 2.13" 13/16"
1AA8FRC4 - 13/16-16 -04 2.59" 1.67" 0.17" 2.55" 15/16"
1AA6FRC6 - 11/16-16 -06 2.27" 1.34" 0.24" 2.13" 13/16"
1AA8FRC6 - 13/16-16 -06 2.55" 1.71" 0.26" 2.55" 15/16"
1AA8FRC8 - 13/16-16 -08 2.87" 1.67" 0.33" 2.51" 15/16"
1AA10FRC8 - 1-14 -08 2.98" 1.91" 0.38" 2.76" 1-1/8"
1AA10FRC10 - 1-14 -10 3.08" 1.91" 0.44" 2.76" 1-1/8"
1AA12FRC12** - 1-3/16-12 -12 3.48" 2.30" 0.56" 3.78" 1-3/8"
1AA16FRC12 - 1-7/16-12 -12 4.04" 2.87" 0.81" 4.50" 1-5/8"
1AA16FRC16*** - 1-7/16-12 -16 4.22" 2.86" 0.78" 4.50" 1-5/8"
1AA20FRC20 - 1-11/16-12 -20 5.30" 3.57" 1.01" 5.09" 1-7/8"
1AA24FRC20 - 2-12 -20 4.32" 2.77" 1.05" 5.54" 2-1/4"
1AA24FRC24 - 2-12 -24 4.63" 2.81" 1.26" 5.54" 2-1/4"

** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure.

*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
