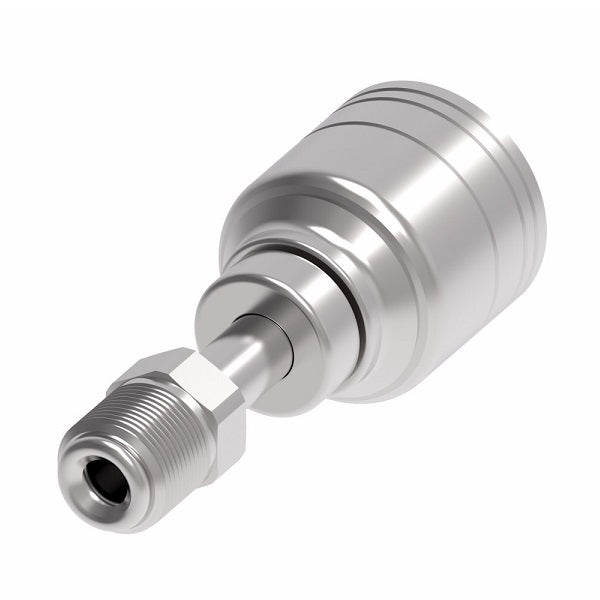

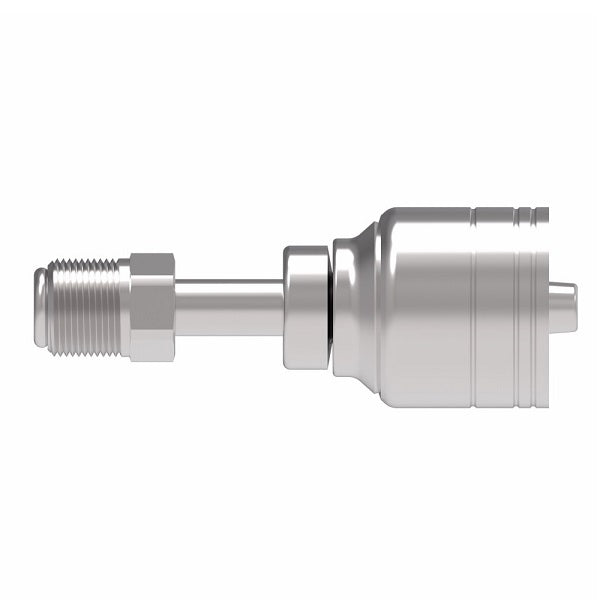

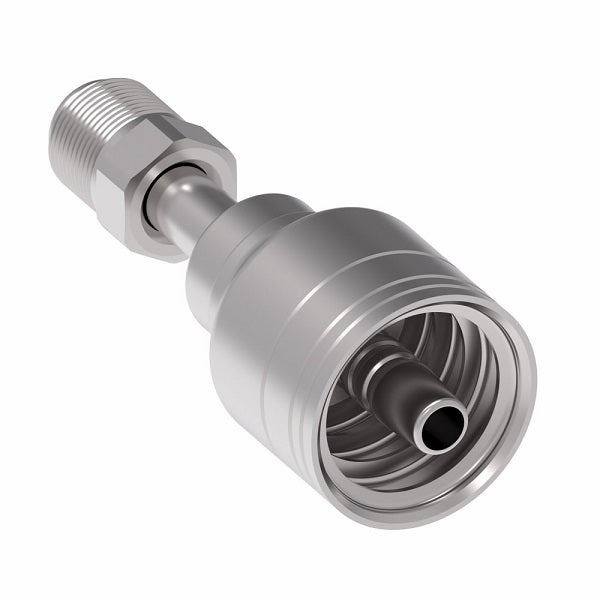

1AA5MF6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel

1AA5MF6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel | Pack of 10

$213.80 - $213.80

$213.80

$213.80 - $213.80

$213.80

Aeroquip® by Danfoss
1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MF) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1AA5MF6 Danfoss \| 10 \|
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Male Inverted Flare, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1
1AA4MF4	7/16-24	-04	2.39"	1.46"	0.17"	7/16"
1AA5MF4	1/2-20	-04	2.39"	1.46"	0.17"	1/2"
1AA5MF6	1/2-20	-06	2.60"	1.61"	0.24"	1/2"
1AA4MF6	7/16-24	-06	2.53"	1.53"	0.17"	7/16"
1AA6MF6	5/8-18	-06	2.60"	1.61"	0.26"	5/8"
1AA7MF6	11/16-18	-06	2.45"	1.60"	0.26"	11/16"
1AA8MF8	3/4-18	-08	2.79"	1.62"	0.38"	3/4"
1AA10MF8	7/8-18	-08	2.94"	1.93"	0.38"	7/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
