1AA5MFA4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel

1AA5MFA4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel

Name: 1AA5MFA4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -05 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA5MFA4 Danfoss
Price: 24.73 USD
Availability: InStock

$24.73 - $24.73

$24.73

$24.73 - $24.73

$24.73

Aeroquip® by Danfoss

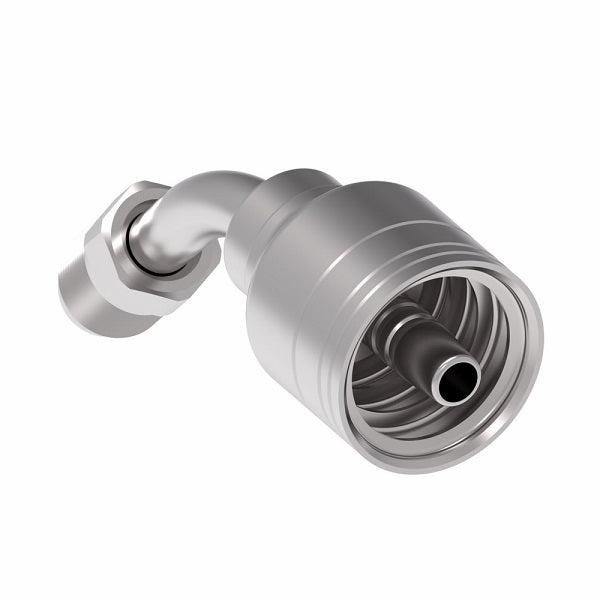

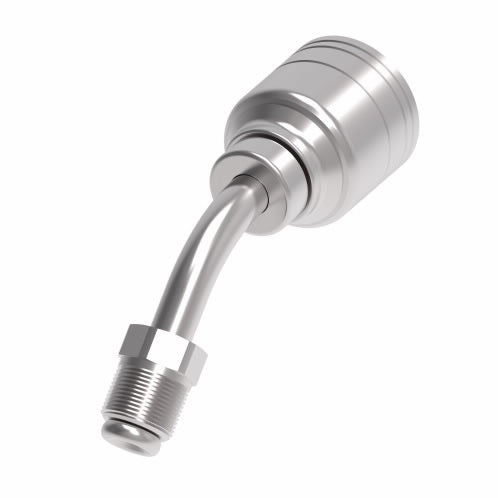

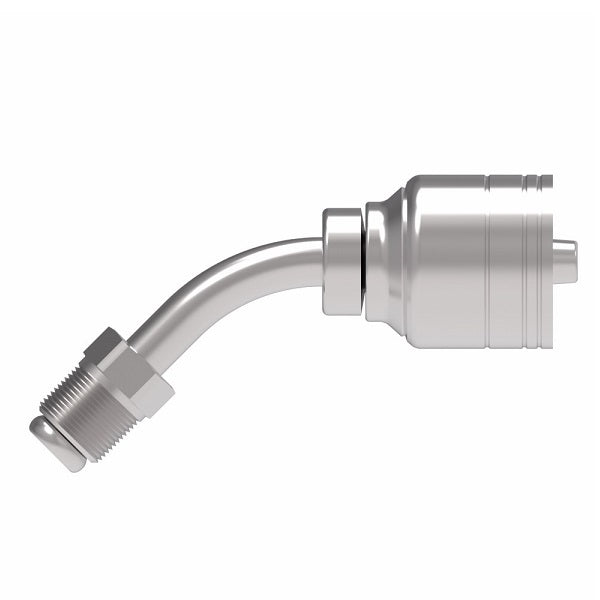

1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MFA) - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA5MFA4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/16in Male Inverted Flare, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA3MFA4	3/8-24	-04	2.75"	1.96"	0.10"	0.69"	3/8"
1AA4MFA4	7/16-24	-04	2.67"	1.75"	0.17"	0.96"	7/16"
1AA5MFA4	1/2-20	-04	2.54"	1.75"	0.17"	0.96"	1/2"
1AA5MFA6	1/2-20	-06	2.88"	1.89"	0.24"	0.96"	1/2"
1AA6MFA6	5/8-18	-06	2.88"	1.89"	0.26"	0.96"	5/8"
1AA7MFA6	11/16-18	-06	2.73"	1.89"	0.26"	0.96"	11/16"
1AA8MFA8	3/4-18	-08	3.07"	1.90"	0.38"	0.93"	3/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
