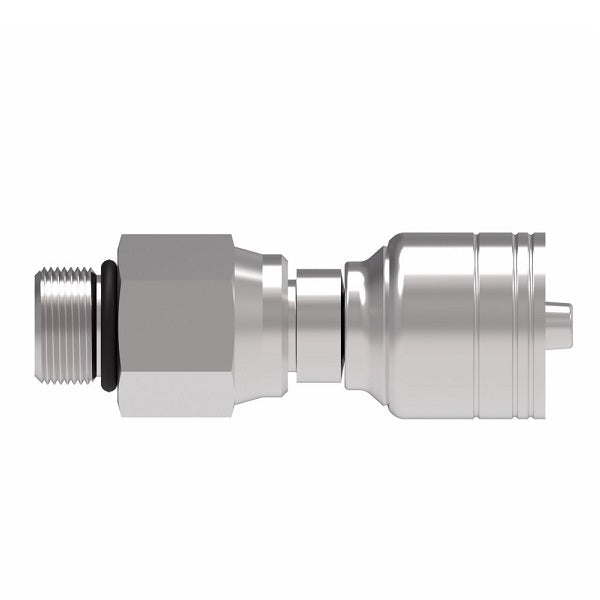

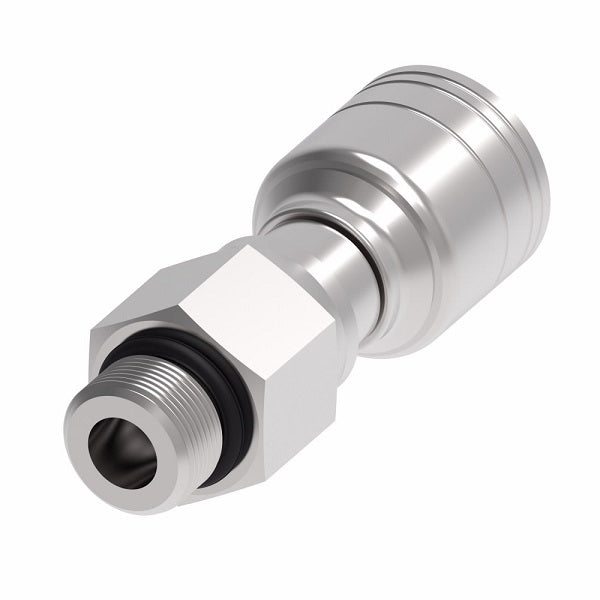

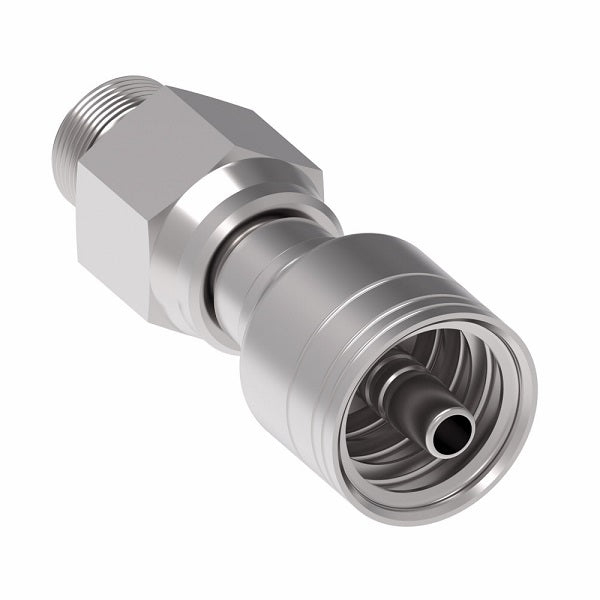

1AA6SB6 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -06 Male O-Ring Boss x -06 Hose Barb | Steel

1AA6SB6 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -06 Male O-Ring Boss x -06 Hose Barb | Steel

Name: 1AA6SB6 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -06 Male O-Ring Boss x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA6SB6 Danfoss
Price: 16.5 USD
Availability: InStock

$16.50 - $16.50

$16.50

$16.50 - $16.50

$16.50

Aeroquip® by Danfoss
TCC Crimp Fitting - Male ORB Straight Thread Swivel (With Sleeve) (SB) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA6SB6 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male O-Ring Boss, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Note:
TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Crimp Fitting Socket Data.PDF

Part Number Steel	Part Number Zinc-Plated Nickel Steel	Thread	Hose Dash Size	Length	Hose Cut-Off Factor	E&Oslash	Hex
1AA4SB4	-	7/16-20	-04	2.52"	1.59"	0.17"	3/4"
1AA6SB6	-	9/16-18	-06	2.72"	1.73"	0.26"	7/8"
1AA8SB10	-	3/4-16	-10	-	-	-	-
1AA8SB6	-	3/4-16	-08	2.66"	1.67"	0.26"	7/8"
1AA8SB8	-	3/4-16	-08	3.01"	1.84"	0.38"	1"
1AA10SB12	-	7/8-14	-12	3.43"	2.24"	0.61"	1-7/16"
1AA10SB8	1AA10SB8TZ	7/8-14	-08	3.03"	1.86"	0.38"	1"
1AA12SB8	-	1-1/16-12	-08	3.49"	2.32"	0.38"	1-7/16"
