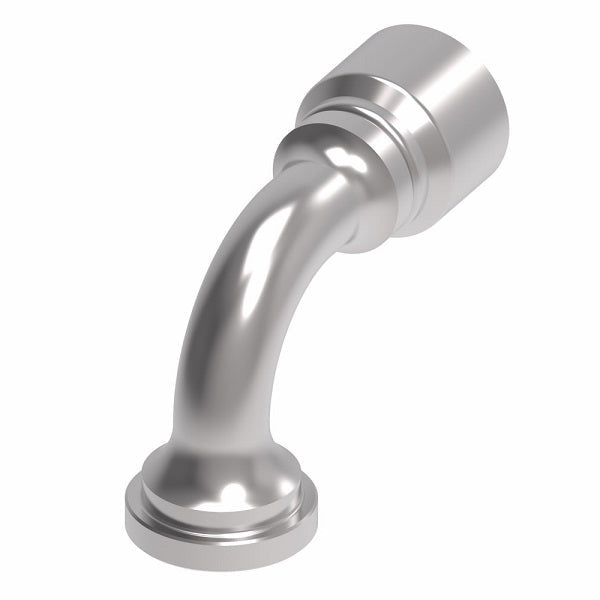

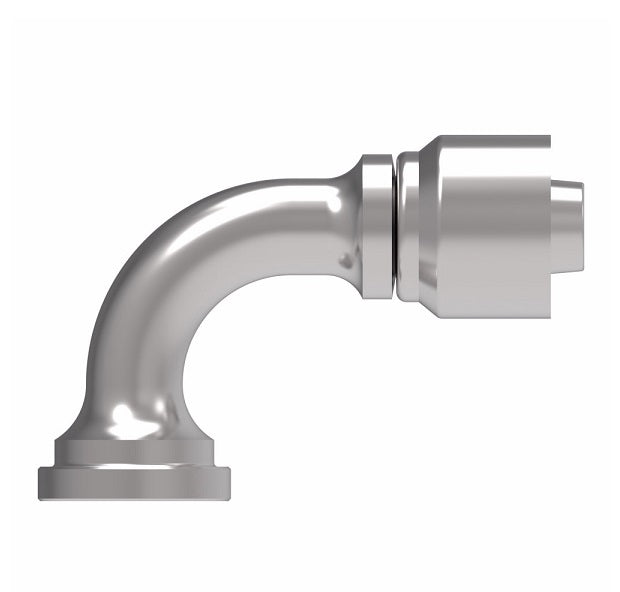

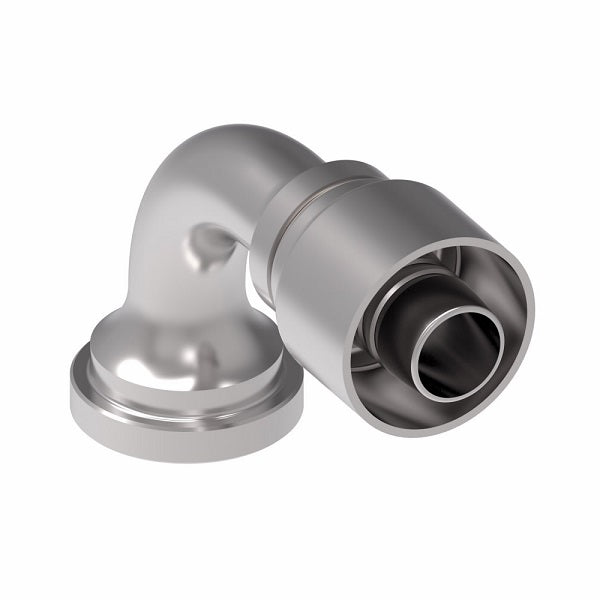

1G20FLB24 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel
1G20FLB24 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel
1G20FLB24 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel

1G20FLB24 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel

$216.82 - $216.82
$216.82
$216.82 - $216.82
$216.82

Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1G20FLB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thd. Flange
Head Diameter
KØ		 Hose Size A D EØ H
1G16FLB16 1.75" -16 4.22" 2.86" 0.76" 2.38"
1G20FLB16 2.00" -16 4.85" 3.50" 0.76" 2.62"
1G16FLB20 1.75" -20 4.66" 2.93" 0.76" 2.38"
1G20FLB20 2.00" -20 5.30" 3.57" 1.01" 2.62"
1G24FLB20 2.37" -20 6.04" 4.31" 1.01" 3.12"
1G20FLB24 2.00" -24 5.43" 3.61" 1.01" 2.62"
1G24FLB24 2.37" -24 6.18" 4.35" 1.26" 3.12"
1G24FLB32 - -32 - - - -
1G32FLB24 2.81" -24 7.28" 5.45" 1.26" 4.50"
1G32FLB24.080 - -24 - - - -
1G32FLB32 2.81" -32 7.47" 5.49" 1.75" 4.50"
1G32FLB32.082 - -32 - - - -
1G40FLB32 3.31 -32 7.47" 5.49" 1.75" 2.56"
