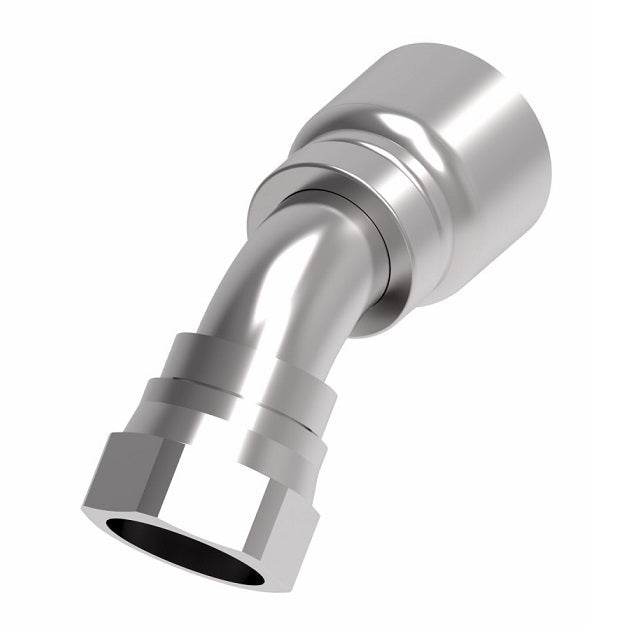

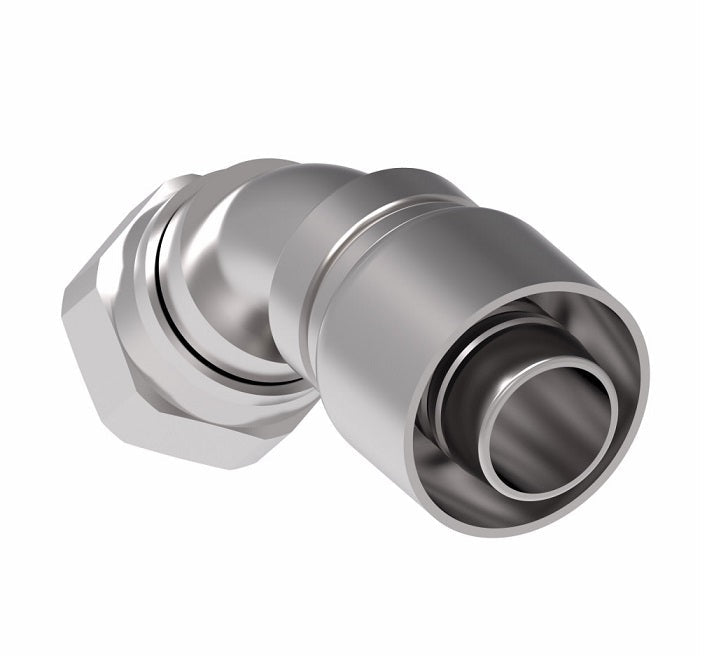

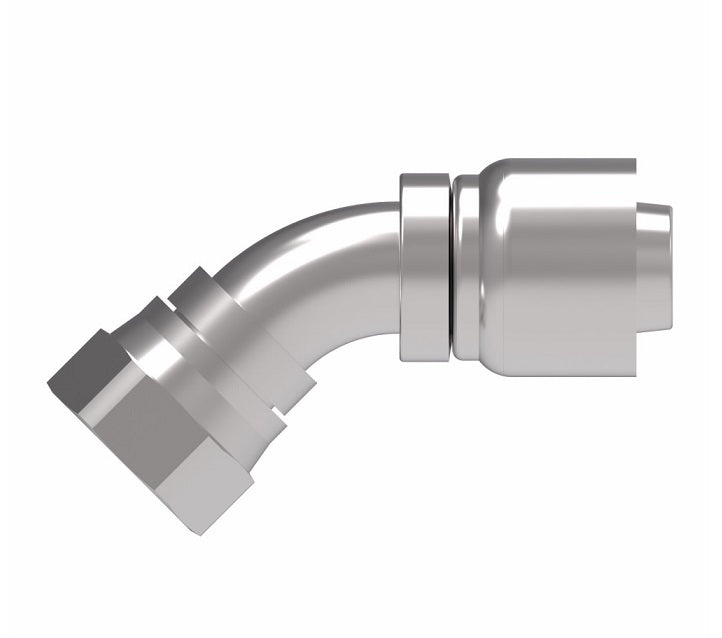

1GA16FJA16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel

1GA16FJA16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$639.20 - $639.20

$639.20

$639.20 - $639.20

$639.20

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA16FJA16 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female JIC, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	H	Hex 1
1GA6FJA6	9/16-18	-06	2.31"	1.31"	0.24"	0.39"	11/16"
1GA8FJA8*	3/4-16	-08	2.82"	1.65"	0.37"	0.55"	7/8"
1GA10FJA8*	7/8-14	-08	3.03"	1.86"	0.38"	0.59"	1"
1GA10FJA10*	7/8-14	-10	2.82"	1.79"	0.46"	0.63"	1"
1GA12FJA12	1-1/16-12	-12	3.43"	2.24"	0.58"	0.78"	1-1/4"
1GA16FJA16	1-5/16-12	-16	3.74"	3.01"	0.81"	1.07"	1-1/2"
1GA20FJA20	1-5/8-12	-20	4.44"	2.71"	1.01"	1.22"	2"
1GA24FJA24	-	-24	-	-	-	-	-

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
