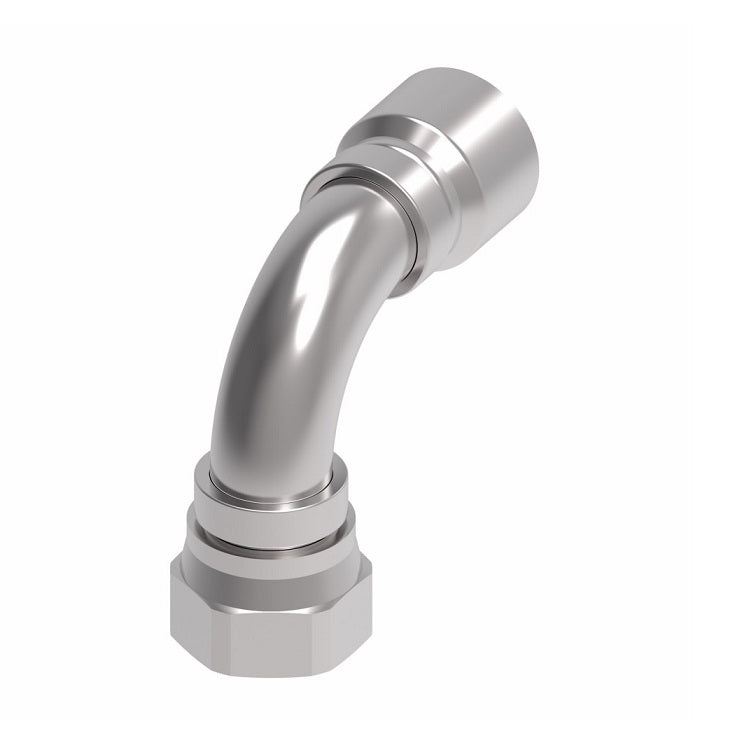

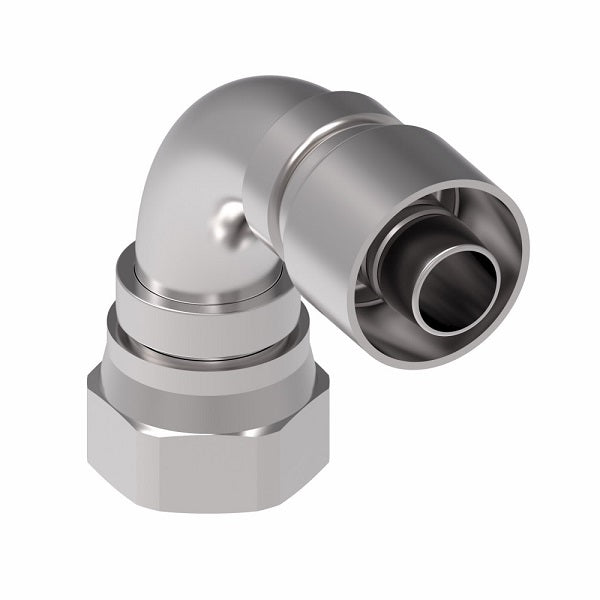

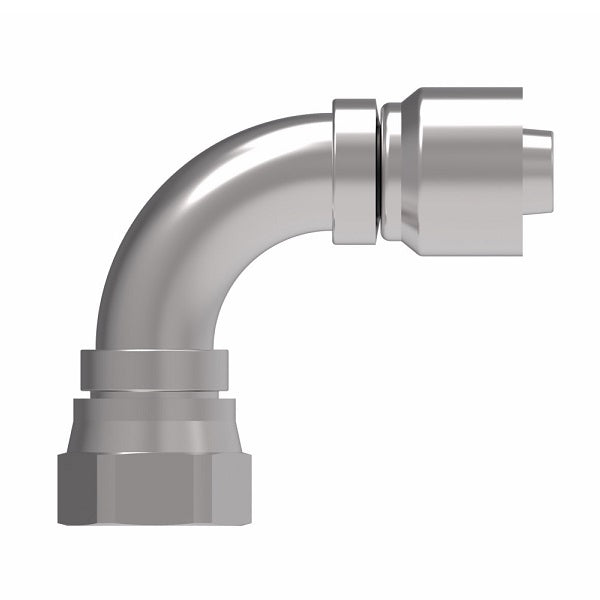

1GA20FJB20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC 37° Swivel x -20 Hose Barb | Steel
1GA20FJB20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC 37° Swivel x -20 Hose Barb | Steel | Pack of 10
1GA20FJB20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC 37° Swivel x -20 Hose Barb | Steel | Pack of 10
1GA20FJB20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC 37° Swivel x -20 Hose Barb | Steel

1GA20FJB20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC 37° Swivel x -20 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$872.60 - $872.60
$872.60
$872.60 - $872.60
$872.60

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA20FJB20 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1GA4FJB4* 7/16-20 -04 1.84" 0.92" 0.17" 0.68" 9/16"
1GA6FJB6 9/16-18 -06 2.21" 1.22" 0.24" 0.84" 11/16"
1GA8FJB6* 3/4-16 -06 2.42" 1.42" 0.26" 1.09" 7/8"
1GA6FJB8 9/16-18 -08 2.43" 1.26" 0.24" 0.84" 11/16"
1GA8FJB8* 3/4-16 -08 2.59" 1.42" 0.37" 1.09" 7/8"
1GA10FJB10* 7/8-14 -10 2.76" 1.55" 0.46" 1.23" 1"
1GA12FJB12 1-1/16-12 -12 3.36" 2.17" 0.58" 1.82" 1-1/4"
1GA16FJB12 1-5/16-12 -12 3.37" 2.18" 0.61" 2.39" 1-1/2"
1GA16FJB16 1-5/16-12 -16 3.56" 2.87" 0.81" 2.39" 1-1/2"
1GA20FJB20 1-5/8-12 -20 4.25" 2.52" 1.01" 2.75" 2"
1GA24FJB24 - -24 - - - - -
1GA32FJB32 - -32 - - - - -

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
