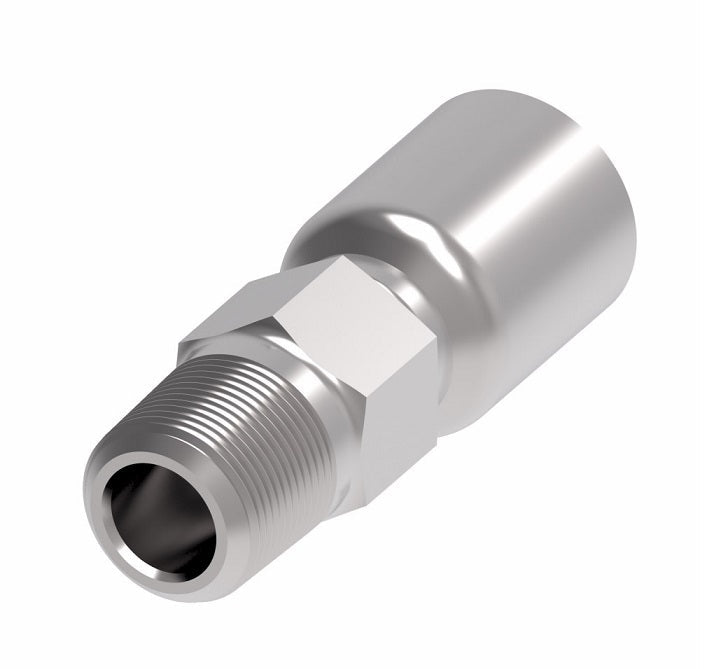

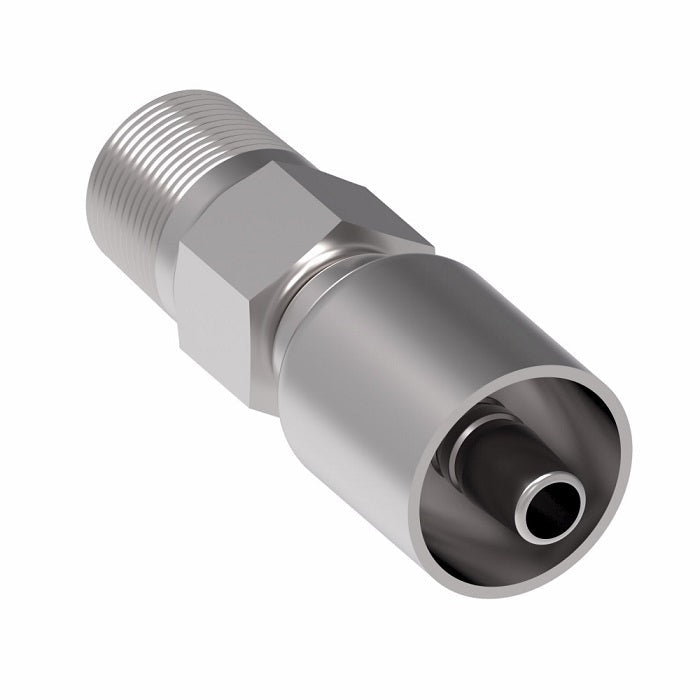

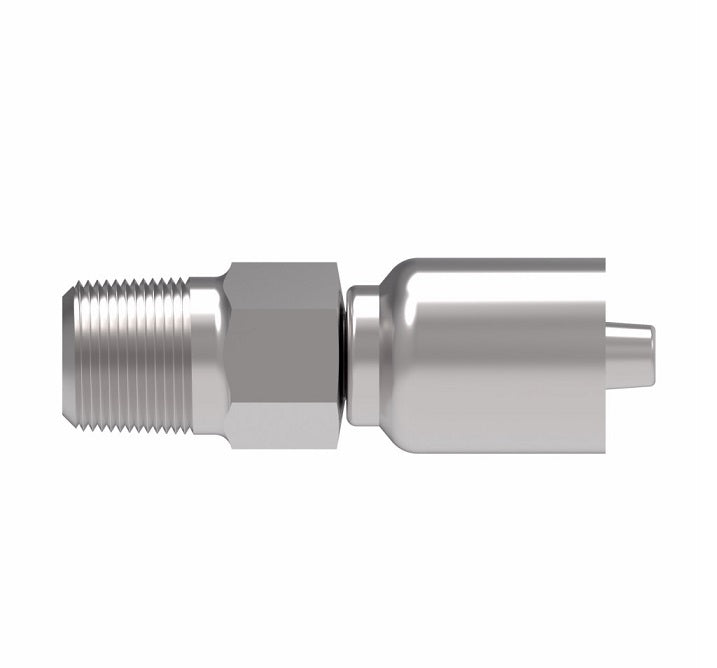

1GA24MP24 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -24 Male Pipe x -24 Hose Barb | Steel
1GA24MP24 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -24 Male Pipe x -24 Hose Barb | Steel
1GA24MP24 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -24 Male Pipe x -24 Hose Barb | Steel
1GA24MP24 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -24 Male Pipe x -24 Hose Barb | Steel

1GA24MP24 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -24 Male Pipe x -24 Hose Barb | Steel

$91.06 - $91.06
$91.06
$91.06 - $91.06
$91.06

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA24MP24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 2
1GA4MP4 - 1/4-18 -04 2.06" 1.14" 0.17" 9/16"
1GA6MP6 - 3/8-18 -06 2.17" 1.27" 0.26" 11/16"
1GA6MP8 - 3/8-18 -08 2.39" 1.32" 0.38" 13/16"
1GA8MP8 - 1/2-14 -08 2.80" 1.60" 0.38" 7/8"
1GA8MP10 - 1/2-14 -10 2.61" 1.58" 0.50" 15/16"
1GA8MP12 - 1/2-14 -12 2.78" 1.60" 0.56" 1-1/8"
1GA12MP10 - 3/4-14 -10 2.43" 1.40" 0.50" 1-1/16"
1GA12MP12 - 3/4-14 -12 2.84" 1.65" 0.61" 1-1/8"
1GA12MP16 - 3/4-14 -16 3.02" 1.67" 0.76" 1-3/8"
1GA16MP12 - 1-11-1/2 -12 2.80" 1.61" 0.61" 1-3/8"
1GA16MP16 - 1-11-1/2 -16 3.22" 1.86" 0.82" 1-3/8"
1GA20MP20 - 1-1/4 - 11-1/2 -20 3.52" 1.79" 1.05" 1-13/16"
1GA24MP24 - 1-1/2 - 11-1/2 -24 4.18" 2.36" 1.26" 2"
1GA32MP32 - 2-11-1/2 -32 4.59" 2.61" 1.75" 2-1/2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
