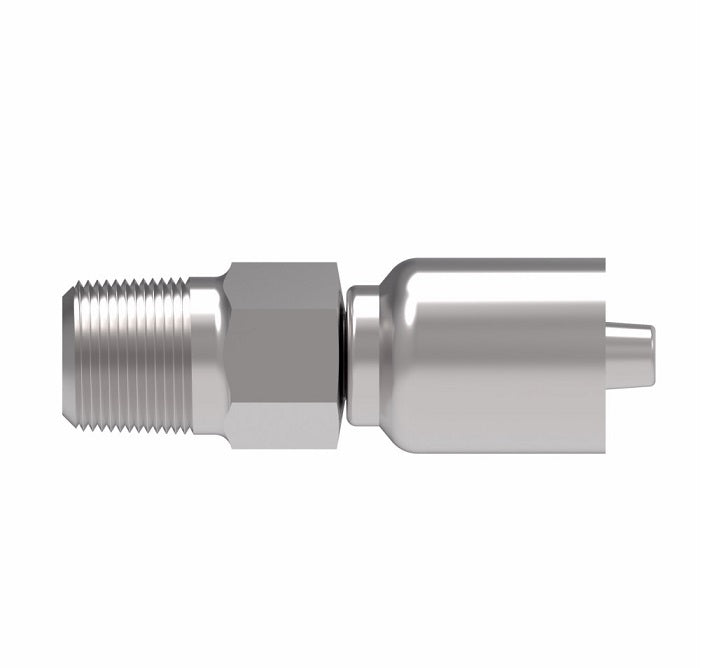

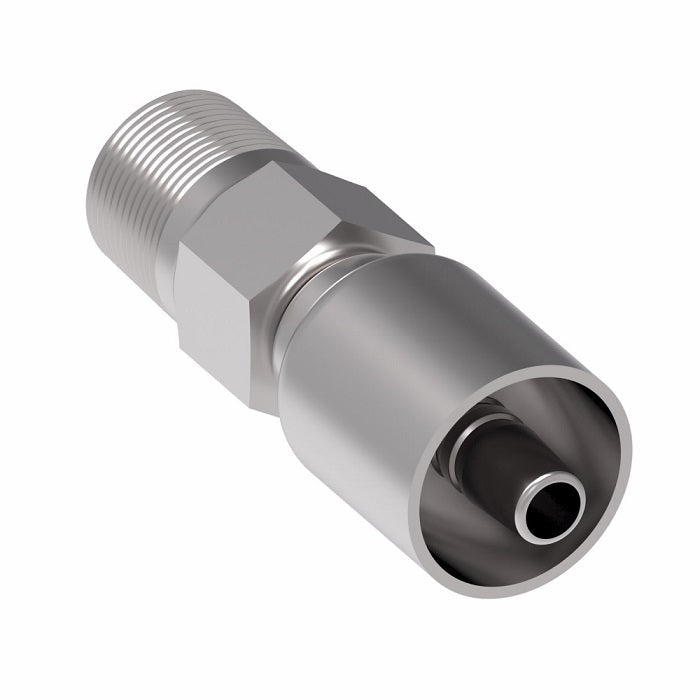

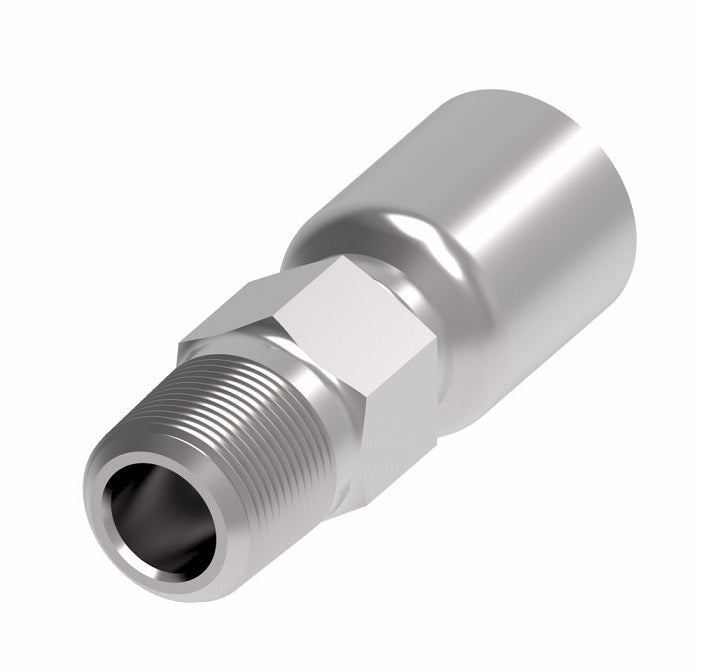

1GA8MP8 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -08 Hose Barb | Steel

1GA8MP8 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$88.60 - $88.60

$88.60

$88.60 - $88.60

$88.60

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA8MP8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1GA4MP4	-	1/4-18	-04	2.06"	1.14"	0.17"	9/16"
1GA6MP6	-	3/8-18	-06	2.17"	1.27"	0.26"	11/16"
1GA6MP8	-	3/8-18	-08	2.39"	1.32"	0.38"	13/16"
1GA8MP8	-	1/2-14	-08	2.80"	1.60"	0.38"	7/8"
1GA8MP10	-	1/2-14	-10	2.61"	1.58"	0.50"	15/16"
1GA8MP12	-	1/2-14	-12	2.78"	1.60"	0.56"	1-1/8"
1GA12MP10	-	3/4-14	-10	2.43"	1.40"	0.50"	1-1/16"
1GA12MP12	-	3/4-14	-12	2.84"	1.65"	0.61"	1-1/8"
1GA12MP16	-	3/4-14	-16	3.02"	1.67"	0.76"	1-3/8"
1GA16MP12	-	1-11-1/2	-12	2.80"	1.61"	0.61"	1-3/8"
1GA16MP16	-	1-11-1/2	-16	3.22"	1.86"	0.82"	1-3/8"
1GA20MP20	-	1-1/4 - 11-1/2	-20	3.52"	1.79"	1.05"	1-13/16"
1GA24MP24	-	1-1/2 - 11-1/2	-24	4.18"	2.36"	1.26"	2"
1GA32MP32	-	2-11-1/2	-32	4.59"	2.61"	1.75"	2-1/2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
