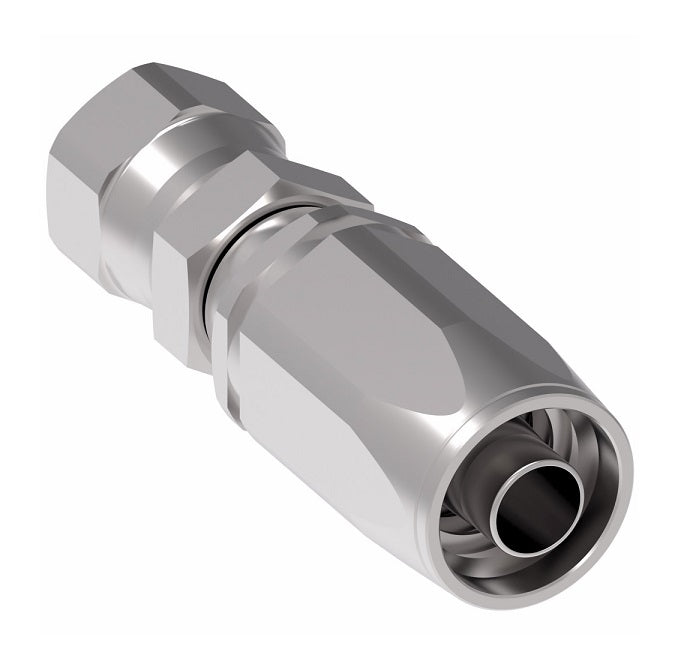

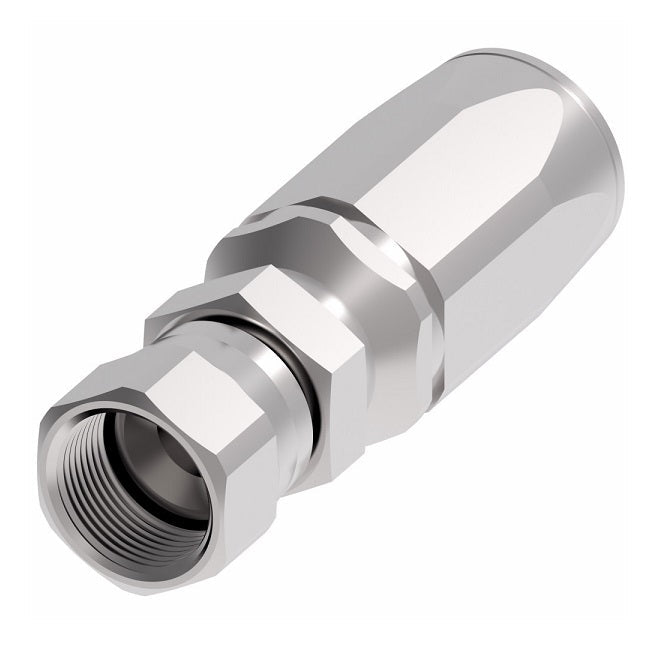

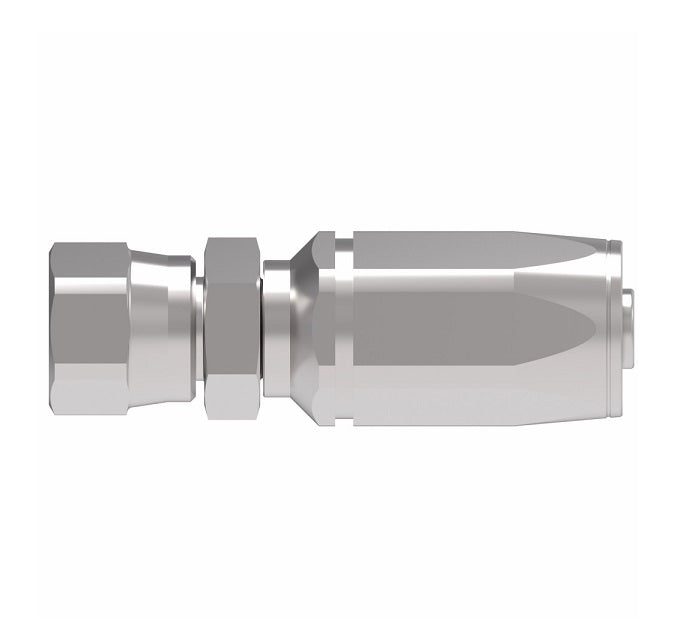

1RA16FJ16 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

1RA16FJ16 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Name: 1RA16FJ16 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 1RA16FJ16 Danfoss
Price: 89.7 USD
Availability: InStock

$89.70 - $89.70

$89.70

$89.70 - $89.70

$89.70

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight

Quantity

Specifications for Variant SKU: 1RA16FJ16 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female JIC, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	H180 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Nipple Assembly Part Number Stainless Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash
1RA4FJ4	4103-4-4-4S	259-4103-4-4-4	1RA4	7/16-20	-04	2.50"	1.46"	0.17"
-	4103-4-6-6S	259-4103-4-6-6	-		-06	-	-	-
-	4103-4-8-8S	259-4103-4-8-8	-		-08	-	-	-
-	4103-4-6-4S	259-4103-4-6-4	-		-04	-	-	-
1RA6FJ6	-	-	1RA6	9/16-18	-06	2.91"	1.78"	0.31"
-	4103-4-8-6S	-	-		-06	-	-	-
1RA8FJ8	-	-	1RA8	3/4-16	-08	3.18"	1.70"	0.39"
-	4103-4-10-8S	-	-		-08	-	-	-
-	4103-4-10S	-	-		-10	-	-	-
1RA12FJ12	4103-4-12S	259-4103-4-12	1RA12	1-1/16-12	-12	3.80"	2.20"	0.61"
-	4103-4-12-10S	-	-		-10	-	-	-
-	4103-4-16-12S	-	-		-12	-	-	-
1RA16FJ16	4103-4-16S	259-4103-4-16	1RA16	1-5/16-12	-16	4.33"	2.21"	0.82"
-	4103-4-24S	-	-		-24	-	-	-
