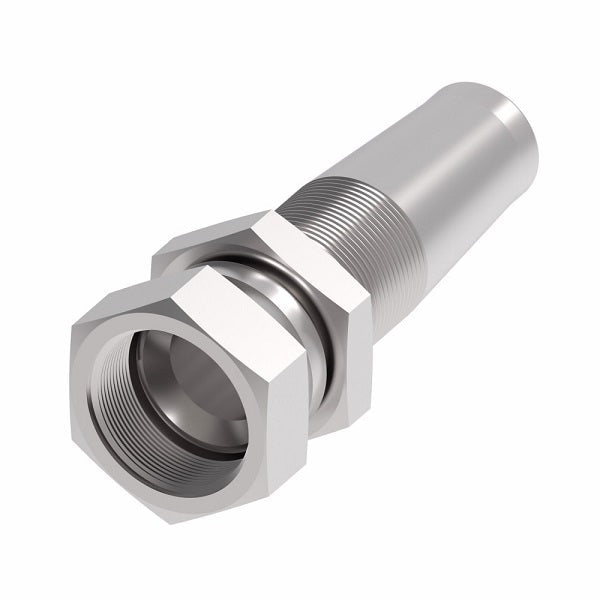

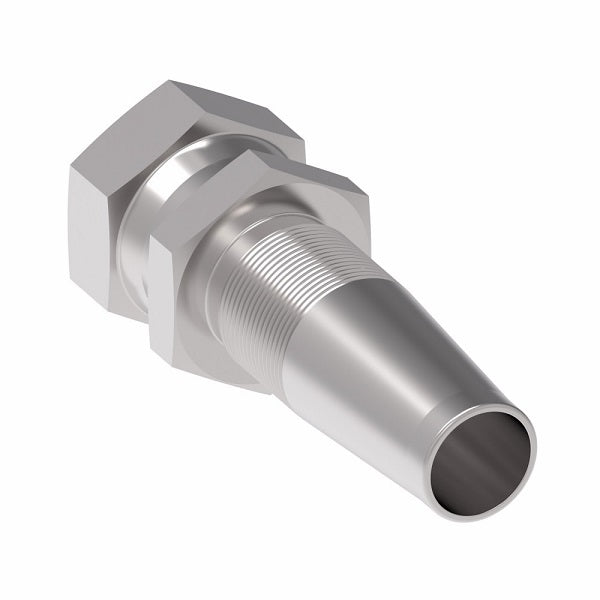

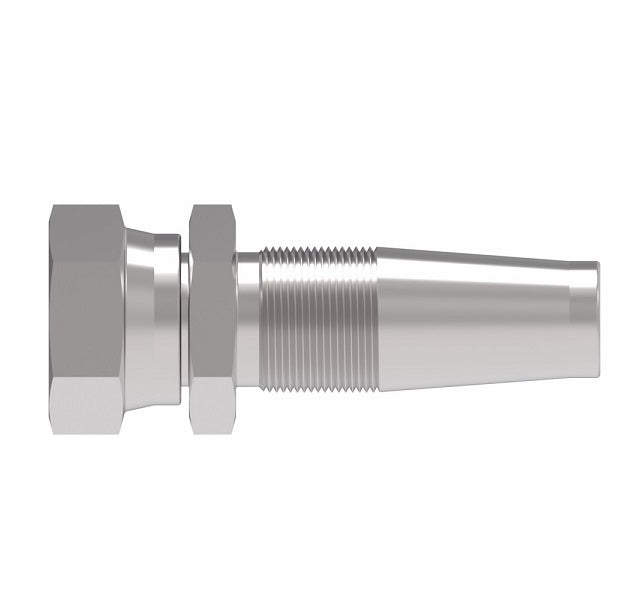

259-4103-4-8-8 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Stainless Steel

259-4103-4-8-8 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Stainless Steel

Name: 259-4103-4-8-8 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 259-4103-4-8-8 Danfoss
Price: 201.75 USD
Availability: InStock

$201.75 - $201.75

$201.75

$201.75 - $201.75

$201.75

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight

Quantity

Specifications for Variant SKU: 259-4103-4-8-8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Stainless Steel
Compatible with the following Series:	H180 Series \| 1509 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Nipple Assembly Part Number Stainless Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash
1RA4FJ4	4103-4-4-4S	259-4103-4-4-4	1RA4	7/16-20	-04	2.50"	1.46"	0.17"
-	4103-4-6-6S	259-4103-4-6-6	-		-06	-	-	-
-	4103-4-8-8S	259-4103-4-8-8	-		-08	-	-	-
-	4103-4-6-4S	259-4103-4-6-4	-		-04	-	-	-
1RA6FJ6	-	-	1RA6	9/16-18	-06	2.91"	1.78"	0.31"
-	4103-4-8-6S	-	-		-06	-	-	-
1RA8FJ8	-	-	1RA8	3/4-16	-08	3.18"	1.70"	0.39"
-	4103-4-10-8S	-	-		-08	-	-	-
-	4103-4-10S	-	-		-10	-	-	-
1RA12FJ12	4103-4-12S	259-4103-4-12	1RA12	1-1/16-12	-12	3.80"	2.20"	0.61"
-	4103-4-12-10S	-	-		-10	-	-	-
-	4103-4-16-12S	-	-		-12	-	-	-
1RA16FJ16	4103-4-16S	259-4103-4-16	1RA16	1-5/16-12	-16	4.33"	2.21"	0.82"
-	4103-4-24S	-	-		-24	-	-	-
