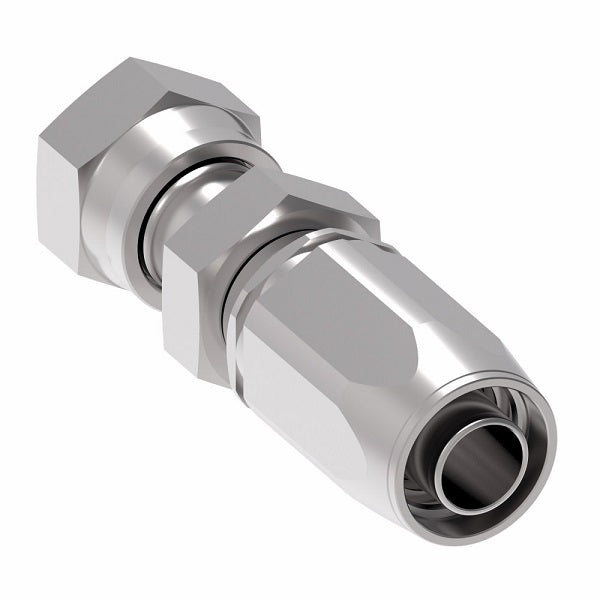

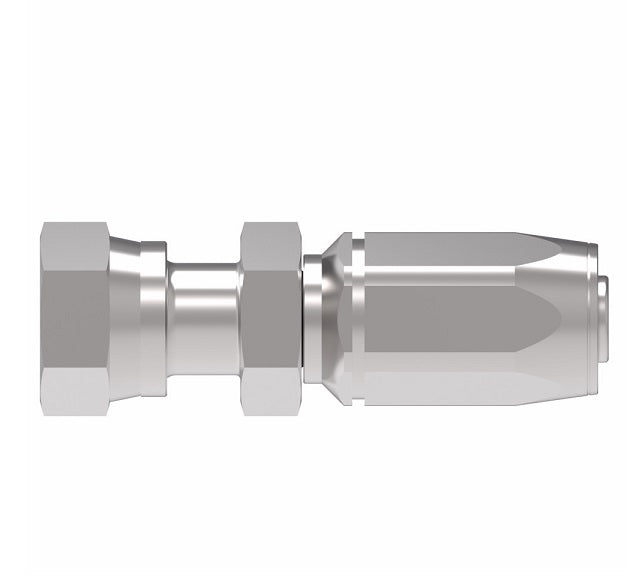

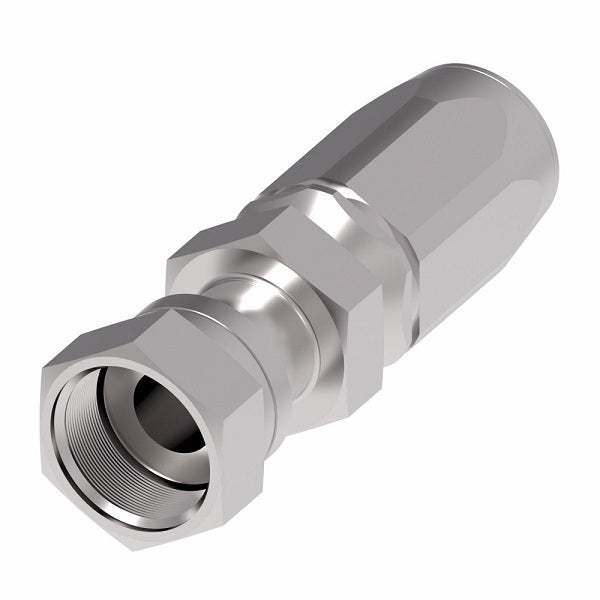

1RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

1RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

$55.92 - $55.92
$55.92
$55.92 - $55.92
$55.92

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - Straight
Specifications for Variant SKU: 1RA6FR6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4FR4 FJ8732-0404S 1RA4 9/16-18 -04 2.62" 1.58" 0.16"
1RA6FR6 FJ8732-0606S 1RA6 11/16-16 -06 2.95" 1.82" 0.26"
- FJ8732-0808S 1RA8 13/16-16 -08 3.38" 1.91" 0.36"
- FJ8732-1212S 1RA12 1-3/16-12 -12 4.00" 2.40" 0.55"
1RA16FR16 FJ8732-1616S 1RA16 1-7/16-12 -16 4.64" 2.51" 0.78"
