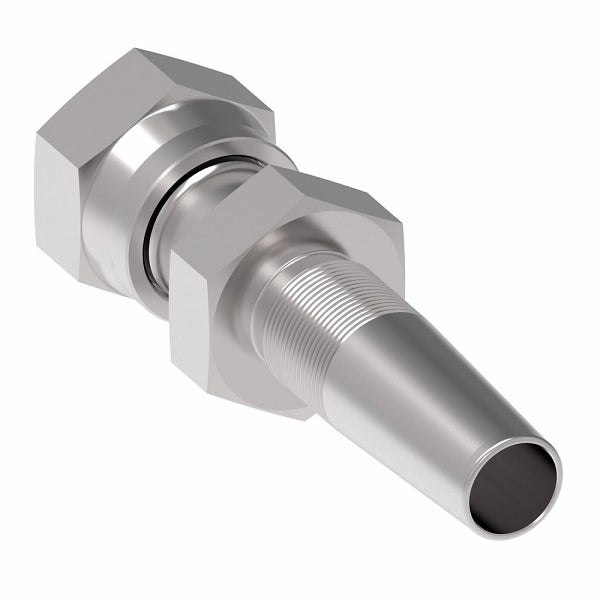

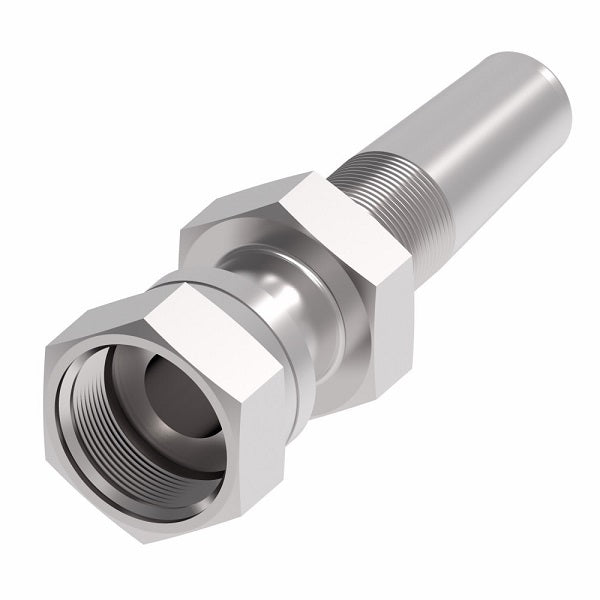

FJ8732-1212S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

FJ8732-1212S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

Name: FJ8732-1212S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ8732-1212S Danfoss
Price: 106.34 USD
Availability: InStock

$106.34 - $106.34

$106.34

$106.34 - $106.34

$106.34

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - Straight

Specifications for Variant SKU: FJ8732-1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash
1RA4FR4	FJ8732-0404S	1RA4	9/16-18	-04	2.62"	1.58"	0.16"
1RA6FR6	FJ8732-0606S	1RA6	11/16-16	-06	2.95"	1.82"	0.26"
-	FJ8732-0808S	1RA8	13/16-16	-08	3.38"	1.91"	0.36"
-	FJ8732-1212S	1RA12	1-3/16-12	-12	4.00"	2.40"	0.55"
1RA16FR16	FJ8732-1616S	1RA16	1-7/16-12	-16	4.64"	2.51"	0.78"
