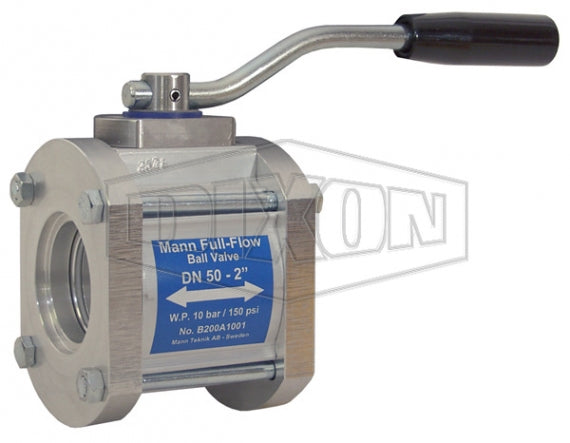

1WAYBV200SW by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Socket Weld End x 2" Socket Weld End | Aluminum

1WAYBV200SW by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Socket Weld End x 2" Socket Weld End | Aluminum

Save $285.47 Save $285.47
$713.68
$713.68 - $713.68
$713.68
$428.21
$428.21 - $428.21
$428.21

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | One-Way | Aluminum
Specifications for Variant SKU: 1WAYBV200SW Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 2in Socket Weld End, 2in Socket Weld End, Some Ends Match
Material(s): Aluminum
Seal Material(s): FKM
Features:
  • Two ports - one inlet and one outlet.
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
1WAYBV200 Female NPT x Female NPT 2" -
1WAYBV300 Female NPT x Female NPT 3" -
1WAYBV400 Female NPT x Female NPT 4" -

1WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
1WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"

1WAYBV200VIC Grooved End x Grooved End 2" -
1WAYBV300VIC Grooved End x Grooved End 3" -
