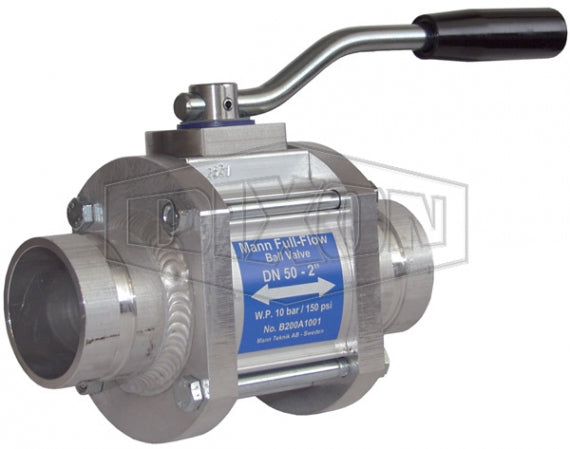

1WAYBV200VIC by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Grooved End x 2" Grooved End | Aluminum

1WAYBV200VIC by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Grooved End x 2" Grooved End | Aluminum

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | One-Way | Aluminum
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1WAYBV200VIC Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 2in Grooved End, 2in Grooved End, Some Ends Match
Material(s): Aluminum
Seal Material(s): FKM
Features:
  • Two ports - one inlet and one outlet.
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
1WAYBV200 Female NPT x Female NPT 2" -
1WAYBV300 Female NPT x Female NPT 3" -
1WAYBV400 Female NPT x Female NPT 4" -

1WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
1WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"

1WAYBV200VIC Grooved End x Grooved End 2" -
1WAYBV300VIC Grooved End x Grooved End 3" -
